Philips L06.1E AA - Page 3

Technical Specifications, Connections, and Chassis Overview
EN 3L06.1E 1.
EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out

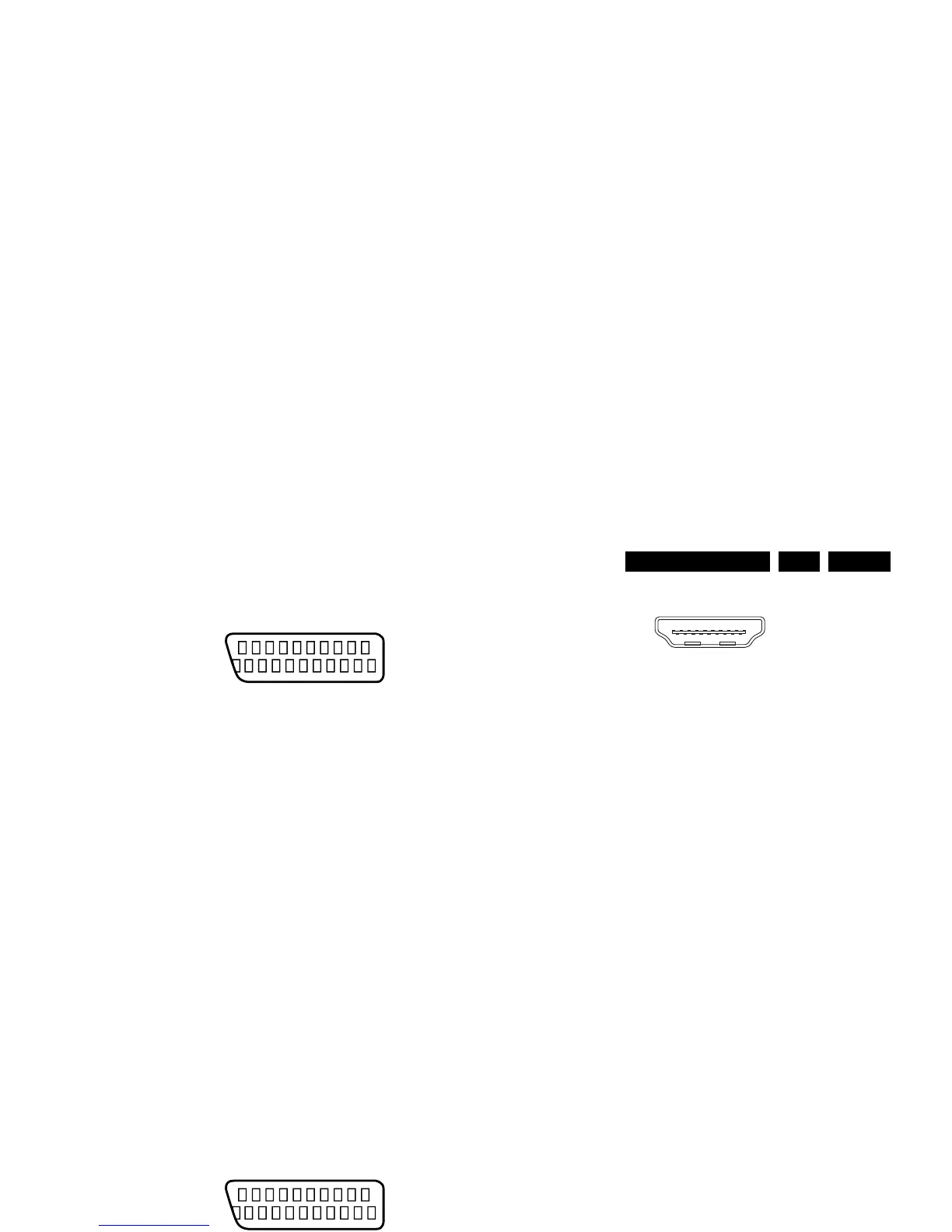

Figure 1-3 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Blue/U 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green/Y 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground FBL Gnd H
15 - Video Red/V 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground Video Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
EXT2: Video YC - In, CVBS - In/Out, Audio - In/Out
Figure 1-4 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - C-FRONT 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - n.c.
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Data Gnd H
15 - C 0.7 V
PP
/ 75 ohm j
16 - n.c.
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS/Y 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
HDMI: Digital Video, Digital Audio - In
Figure 1-5 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
Cinch: Video YPbPr - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Cinch: DVI Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
Cinch: HD/CVI Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
Cinch: Audio - Out
Rd - Audio - R 0.5 V
RMS
/ 10 kohm kq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm kq
21
20
1
2
E_06532_001.eps
050404
21
20
1
2
E_06532_001.eps
050404
19
1
18 2
E_06532_017.eps
250505
