Technical Specifications
GB 2 L9.2A1.
1. Technical Specifications
1.1 Specifications
Mains voltage : 150V - 276Vac;
Mains frequency : 50 - 60Hz
Maximum power consumption :
• 14" : 40W +/- 10%
• 20" : 56W +/- 10%
• 21" : 58W +/- 10%
Standby power consumption : 10W +/- 10%
Max. Antenne-input :
Off air : 100dBV
On air : 90dBV
Audio output :
• Stereo : 2 * 3W; 2 * 1W
• Mono : 2 * 2W; 4W; 3W; 2W; 1W
Tuners :
• UV 1316/AI-2 (PAL)
• UV 1316/AIU-2 (PAL)
• UV 1356C/AI (PAL)

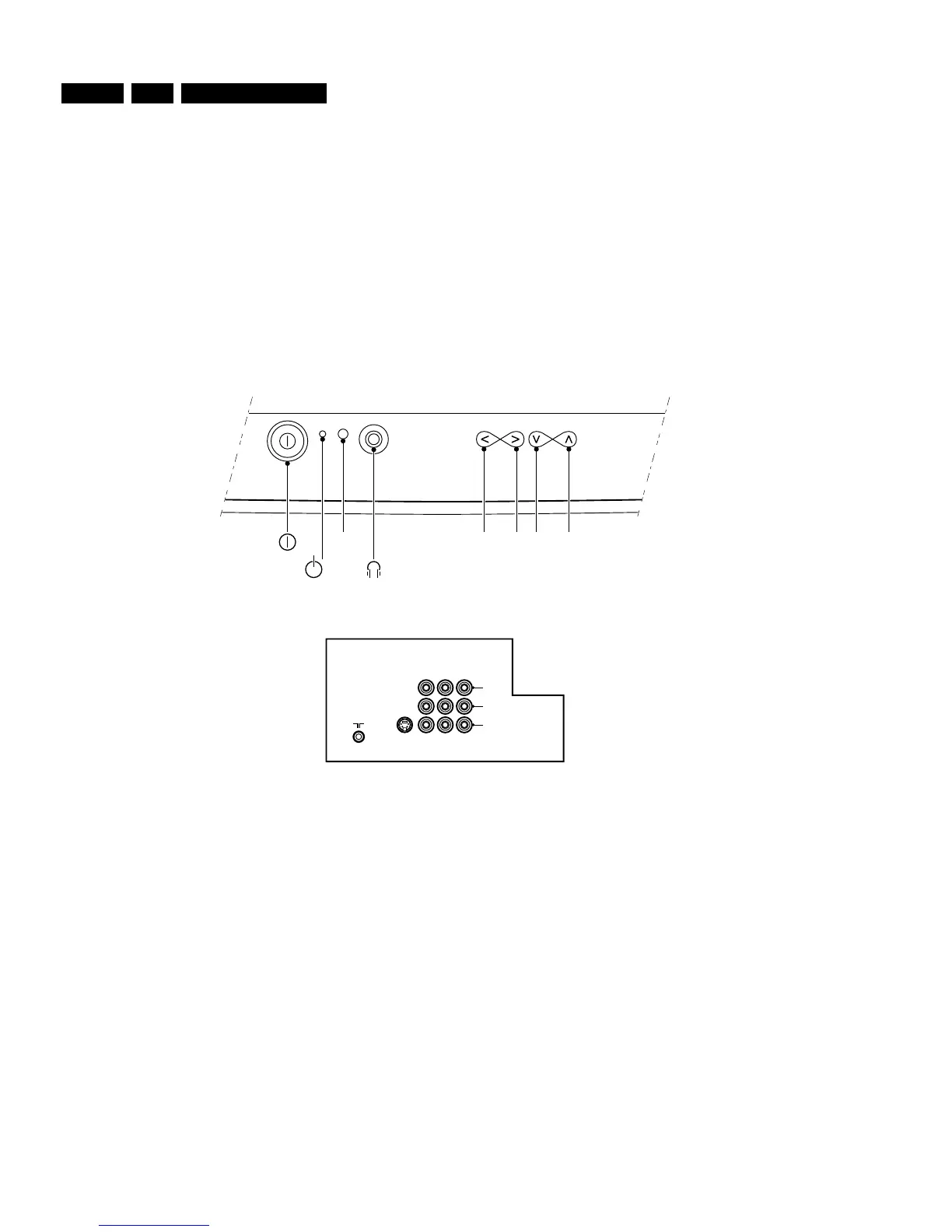

1.2 Specification of the terminal sockets
1.3 Specification of the terminal sockets
1.3.1 Inputs (AV1, AV2 and Side AV)
- Cinch CVBS (yellow) (1Vpp +/- 3dB 75
Ω
)
q
- Cinch Audio R (red) (0.2-2VRMS 10k
Ω
)
q
- Cinch Audio L (white) (0.2-2VRMS 10k
Ω
)
q
1.3.2 Outputs (MONITOR out)
- Cinch CVBS (yellow) (1Vpp +/- 3dB 75
Ω
)
q
- Cinch Audio R (red) (0.5VRMS < 1k
Ω
)
q
- Cinch Audio L (white) (0.5VRMS < 1k
Ω
)
q
1.3.3 Headphone
- Jack 8-600 (4mW)
t
1.3.4 SVHS
1 - Ground
v
2 - Ground
v
3 - Y (1Vpp +/- 3dB 75
Ω) p
4 - C (0.3Vpp +/- 3dB 75
Ω
)
p
Red
IR
ChannelVolume
++ --
CL 86532104_011.eps
080299
CL 86532104_069.AI
290399
S-Video
IN OUTIN
Video
L
Audio
R
