6. Block Diagrams, Testpoint Overviews, and Waveforms

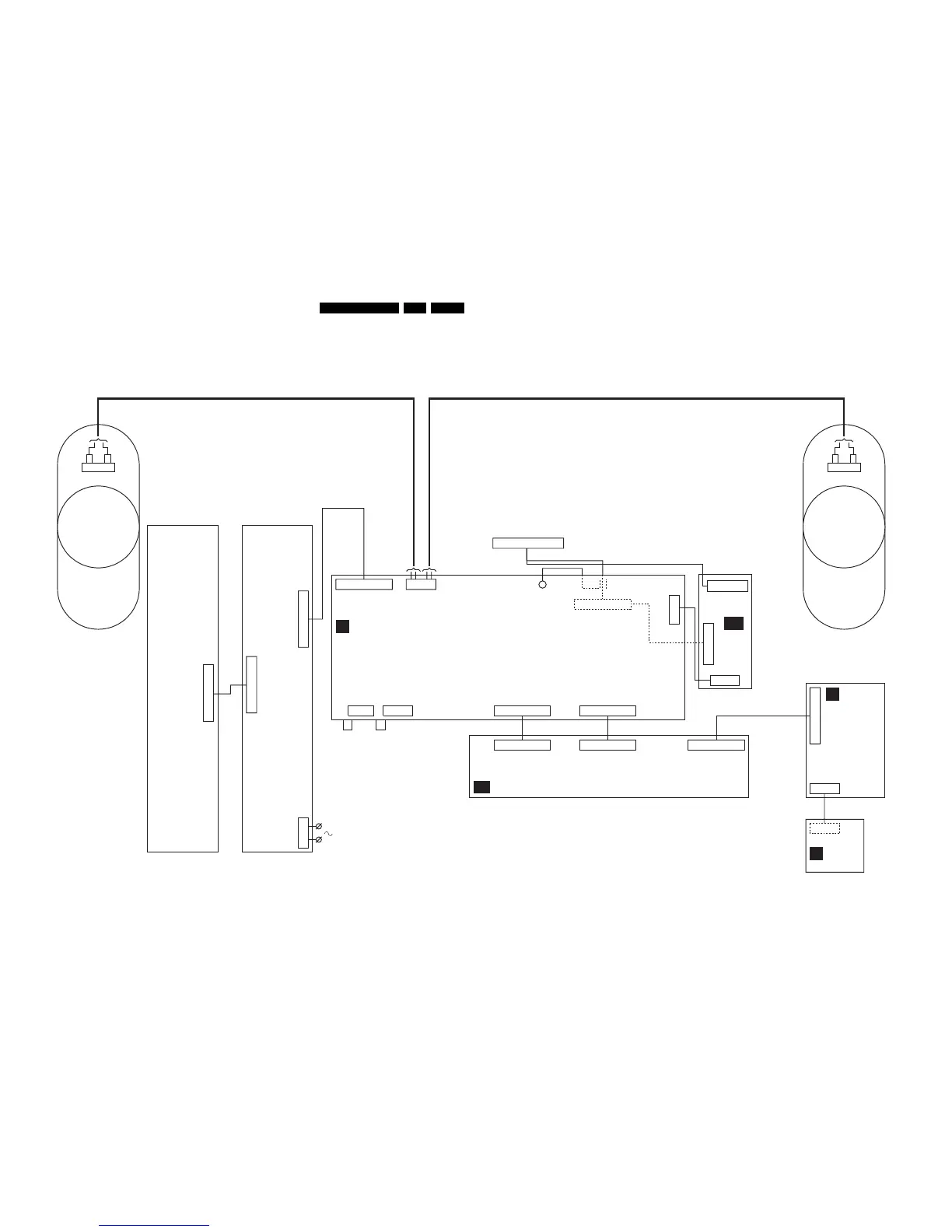

Wiring Diagram
4P
12P
E_14490_101.eps
030804
Left
Speaker
Rigth
Speaker
12P
1200
14P
1520
1910
20P
1403
45P
1005
45P
45P
45P
1601
1103 1698
1704
POWER
IN
1001
6P
1302
3P
1303
4P
1304
A
LCD-TV SCALER
D
SIDE I/O
& LKB
J
FRONT
IR/LED
H
REAR I/O SCART/PCHD
LCD SCREEN
LVDS CONNECTION
LVDS OUTPUT
SERVICE
COMPAIR
CONNECTION
20P
1104
INVERTER
6P
1540
20P
1301
Wiring Diagram 26" LVDS Connection
BACK
LIGHT
CONNECTION
LCD SCREEN
PP
PIXEL
PLUS
PANEL
9P
22P
1003
22P
1002
1001
9P
1409
