EN 2 LC4.2E AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1. Technical Specifications
2. Connections
3. Chassis Overview
Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD, S-IPS
: 16:9
Screen size : 17 inch (44 cm)
: 23 inch (59 cm)
: 26 inch (66 cm)
Resolution (HxV) : 1280(*3)x768 pixels
: WXGA
Contrast ratio : 400:1
Light output : 450 cd/m^2
Viewing angle (HxV) : 176x176 deg.
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L,
L1
Video playback : NTSC 4.43
: NTSC 3.58
: NTSC Play Back
: PAL 60
: PAL B/G Play Back
: SECAM Play Back
Channel selections : 100 presets
: UVSH
Aerial input : 75 ohm, IEC-type
Antenna : 75 ohm, FM
Dimensions (WxHxD) in mm : 17 inch: 578x375x240
: 23 inch: 690x433x240
: 26 inch: 788x504x270
1.1.2 Sound
Sound systems : FM/FM (5.5-5.74)
: BI NICAM BG - 2CS
BG
: NICAM B/G (5.5-5.85)
: NICAM D/K (6.5-5.85)
(Hung)
: NICAM I (6.0-6.52)
: NICAM L (6.5(AM)-
5.85)
Maximum power : 17 inch: 2 x 3 W_rms
: 23 inch: 2 x 5 W_rms
: 26 inch: 2 x 5 W_rms
1.1.3 Miscellaneous
Power supply:
Mains voltage : 95 - 240 V_ac
Mains frequency : 50 / 60 Hz
Ambient conditions:
- Temperature range : +5 to +40 deg. C
- Maximum humidity : 90 % R.H.
Power consumption
- Normal operation : 17 inch: 55 W
: 23 inch: 96 W
: 26 inch: 110 W
- Standby : < 3 W
1.2 Connections
1.2.1 Rear Connections

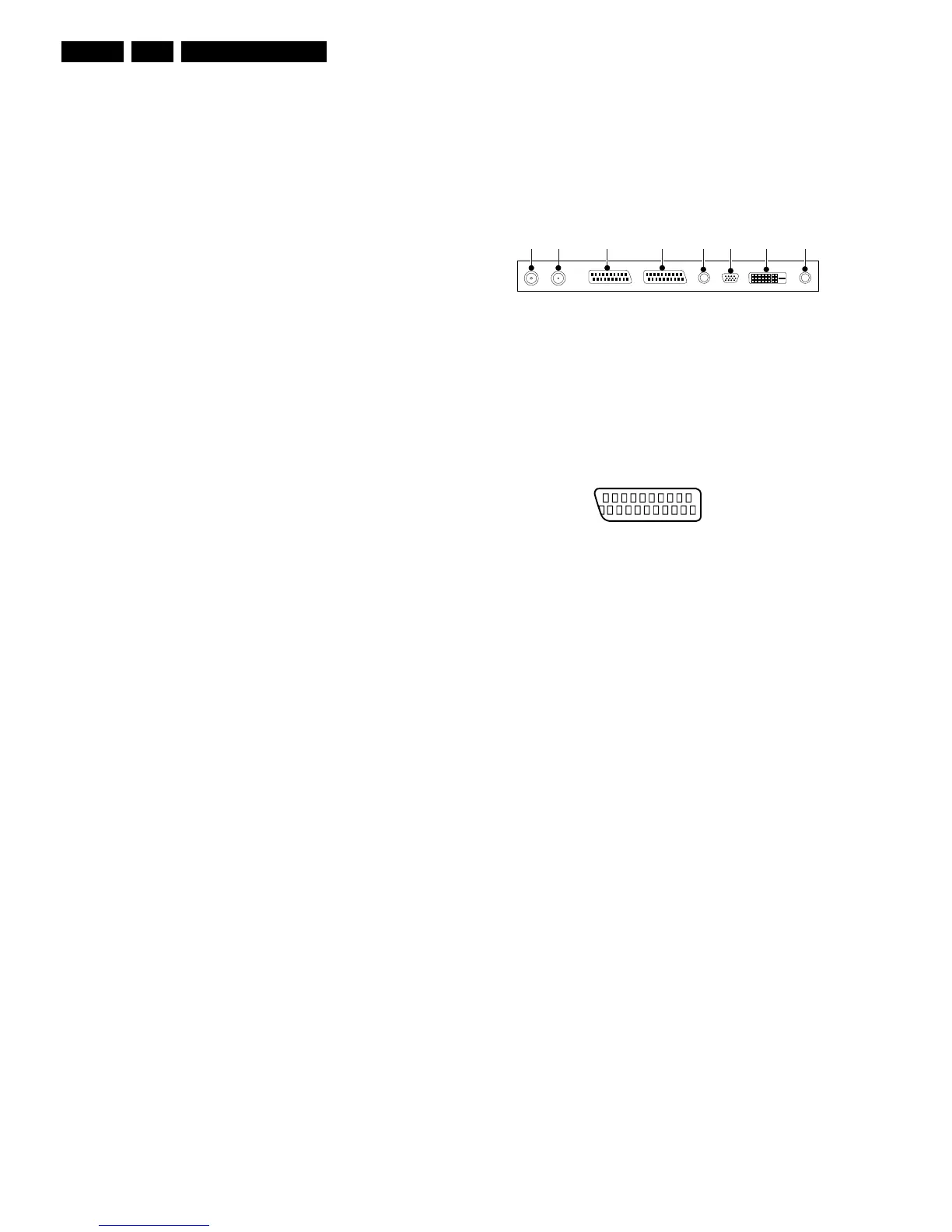

Figure 1-1 Rear connections
Aerial - In
- IEC-type Coax, 75 ohm D
FM Ant
- IEC-type Coax, 75 ohm D
External 1: RGB/YUV - In and CVBS - In/Out
Figure 1-2 SCART connector
1 - Audio - R 0.5 V_rms / 1 kohm k
2 - Audio - R 0.5 V_rms / 10 kohm j
3 - Audio - L 0.5 V_rms / 1 kohm k
4 - Audio - gnd Ground H
5 - Blue - gnd Ground H
6 - Audio - L 0.5 V_rms / 10 kohm j
7 - Blue/U - in 0.7 V_pp / 75 ohm j
8 - CVBS - status 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3
9 - Green - gnd Ground H
10 - n.c.
11 - Green/Y - in 0.7 V_pp / 75 ohm j
12 - n.c.
13 - Red - gnd Ground H
14 - FBL - gnd Ground H
15 - Red/V - in 0.7 V_pp / 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Video Ground H
18 - Video Ground H
19 - CVBS - out 1 V_pp / 75 ohm k
20 - CVBS - in 1 V_pp / 75 ohm j
21 - Shielding Ground H
FM ANT SCART 1 SCART 2 AUDIO OUT DVI-DVGA PC AUDIO INAERIAL IN
E_14490_011.eps
130404
21
20
1
2
E_06532_001.eps
050404
