EN 3LC4.2E AA 1.
External 2: RGB/YUV - In and CVBS - In/Out

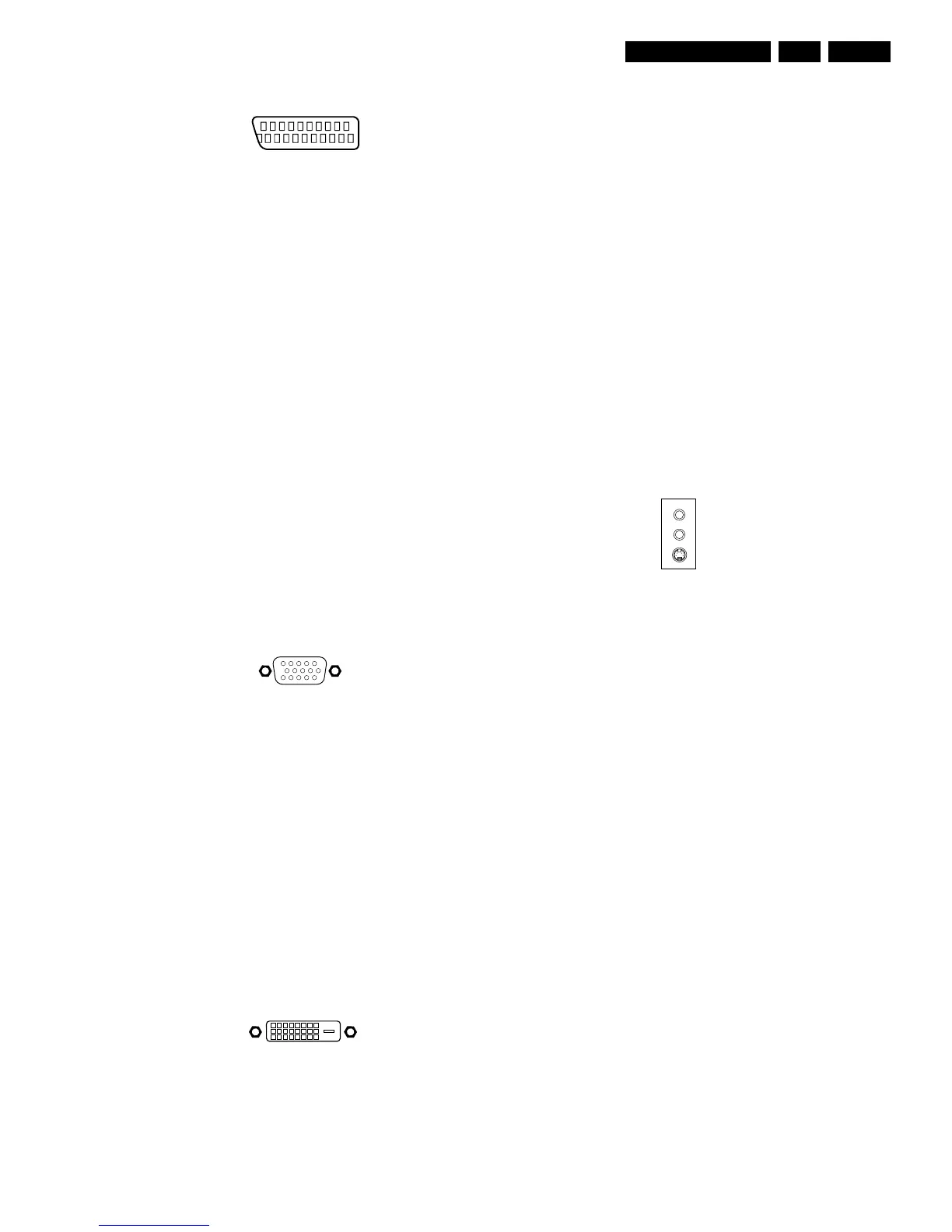

Figure 1-3 SCART connector
1 - Audio - R 0.5 V_rms / 1 kohm k
2 - Audio - R 0.5 V_rms / 10 kohm j
3 - Audio - L 0.5 V_rms / 1 kohm k
4 - Audio - gnd Ground H
5 - Blue - gnd Ground H
6 - Audio - L 0.5 V_rms / 10 kohm j
7-n.c. j
8 - CVBS - status 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3
9 - Green - gnd Ground H
10 - n.c.
11 - n.c. j
12 - n.c.
13 - Red - gnd Ground H
14 - FBL - gnd Ground H
15 - C - in 0.3 V_pp / 75 ohm j
16 - n.c. j
17 - Video Ground H
18 - Video Ground H
19 - CVBS - out 1 V_pp / 75 ohm k
20 - CVBS/Y - in 1 V_pp / 75 ohm j
21 - Shielding Ground H
Audio - out
3 - Audio - R 0.5 V_rms / 1 kohm kj
2 - Audio - L 0.5 V_rms / 1 kohm kj
VGA
Figure 1-4 VGA Connector
1 - Red 0.7 V_pp / 75 ohm j
2 - Green 0.7 V_pp / 75 ohm j
3 - Blue 0.7 V_pp / 75 ohm j
4 - Ground H
5 - Ground H
6 - Ground H
7 - Ground H
8 - Ground H
9 - 5V_DC +5 V_dc j
10 - Ground H
11 - Ground H
12 - DDC_SDA jk
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL j
DVI (for 23 and 26 inch models)
Figure 1-5 DVI connector
1-RX2- j
2-RX2+ j
3 - Ground GND H
4- n.c.
5- n.c.
6 - SCL_DVI k
7 - SDA_DVI jk
8- n.c.
9-RX1- j
10 - RX1+ j
11 - Ground GND H
12 - n.c.
13 - n.c.
14 - +5V
15 - Ground GND H
16 - + 5V Hot Plug
17 - RX0- j
18 - RX0+ j
19 - Ground GND H
20 - n.c.
21 - n.c.
22 - Ground GND H
23 - RXC+ j
24 - RXC- j
C5 - Ground GND H
PC Audio - in
3 - Audio - R 0.5 V_rms / 1 kohm kq
2 - Audio - L 0.5 V_rms / 1 kohm kq
1.2.2 Side connections
Figure 1-6 Side connections
Hosiden: SVHS - In
1 - Y Ground H
2 - C Ground H
3 - Y 1 Vpp / 75 ohm j
4 - C 0.3 Vpp / 75 ohm j
Mini Jack: Audio - in
2 - Audio - L 0.5 Vrms / 10 kohm jq
3 - Audio - R 0.5 Vrms / 10 kohm jq
Mini Jack: Headphone - Out
- Headphone 32 - 600 ohm / 10 mW ot
21
20
1
2
E_06532_001.eps
050404
1
6
10
11
5
15
E_06532_002.eps
050404
18
916
17
24
C5
E_06532_003.eps
050404
S-VIDEO
AUDIO IN
HEADPHONE
E_14490_012.eps
130404
