Mechanical Instructions
EN 9LC4.41E AA 4.

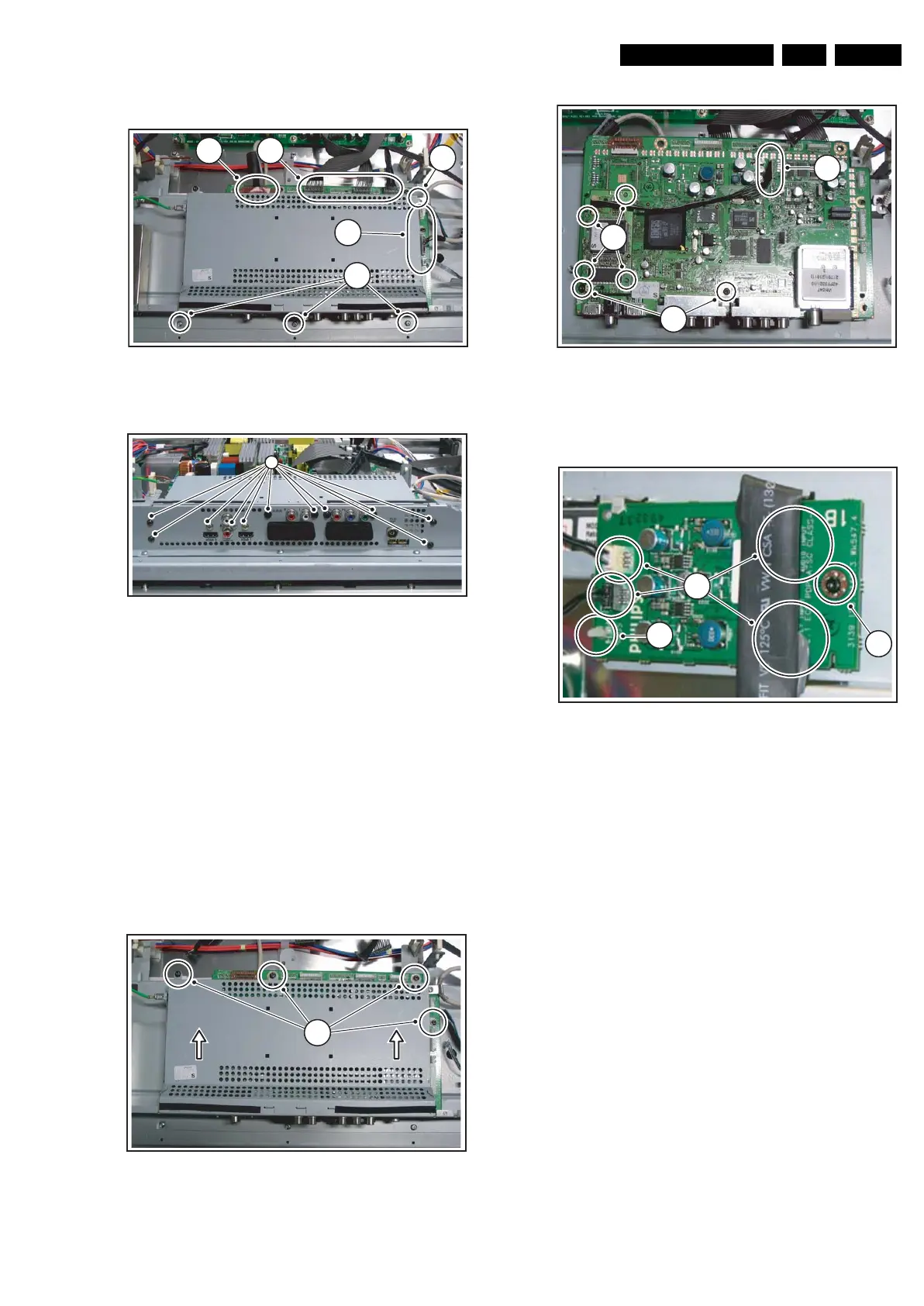

4.3.5 Small Signal Board
Figure 4-6 SSB connectors
Figure 4-7 Connector screws
1. Very cautiously disconnect the LVDS cable [1] from the
panel (see Figure “SSB connectors”). Notice that this cable
is very fragile.
2. Disconnect the other cables [2] from the panel.
3. Remove the fixation screws [3].
4. Remove the fixation screws [4] from the connector plate
(see Figure “Connector screws”).
5. Slide the SSB module a few centimetres away from the
connector plate (see Figure “SSB shield”).
6. Remove the fixation screws [5] and lift the shield from the
SSB module.
7. Disconnect connector [6] (see Figure “SSB panel”).
8. Unlock the catches [7] and lift the OTC TXT panel from the
SSB panel.
9. Remove the fixation screws [8].
10. Remove the SSB panel.
Figure 4-8 SSB shield
Figure 4-9 SSB panel
4.3.6 Audio Amplifier Panel
Figure 4-10 Audio amplifier panel
1. Disconnect all cables [1] from the panel.
2. Remove the fixation screws [2] from the panel.
3. Remove the panel.
G_16240_015.eps
250706
1 2
2
3
3
G_16240_016.eps
160206
4
G_16240_017.eps
250706
5
G_16240_018.eps
250706
6
7
8
G_16240_019.eps
160206
3
2
1
