Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 74 LC7.1E LA9.

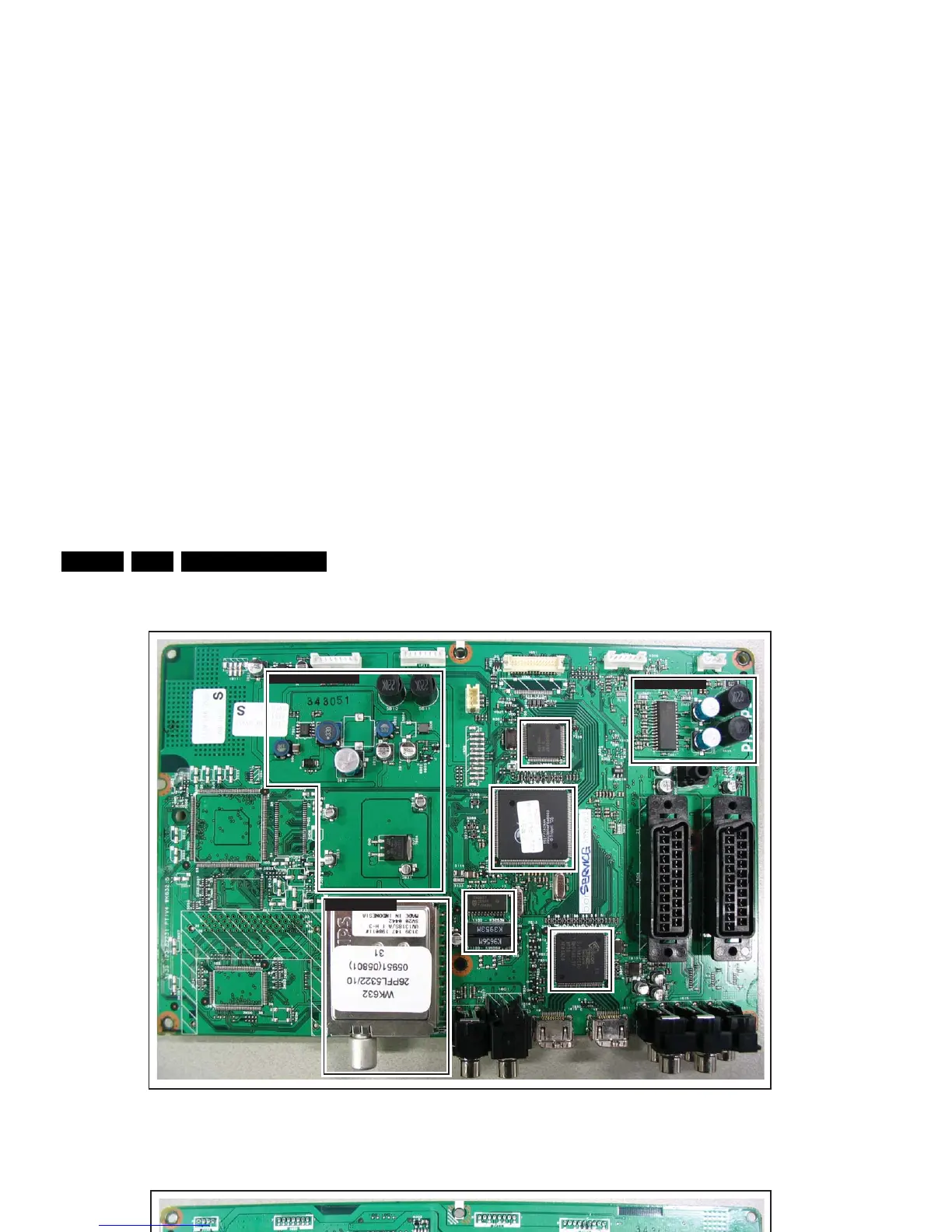

9.1.1 SSB Cell Layout
Figure 9-1 SSB top view
Figure 9-2 SSB bottom view
H_16940_010.eps
060307
DC-DC CONVERSION
TRIDENT
VIDEO
PROC.
RENEAS
uP
AUDIO CLASS D
ANALOG TUNER
IF DEM
HDMI
VIF SAW
SIF SAW
H_16940_011.eps
060307
DC-DC CONVERSION
AUDIO CLASS D
FLASH
MEM
SDRAM
SDRAM
MICRONAS
AUDIO PROC.
