Technical Specifications, Connections, and Chassis Overview
EN 6 LC7.1HE LA1.

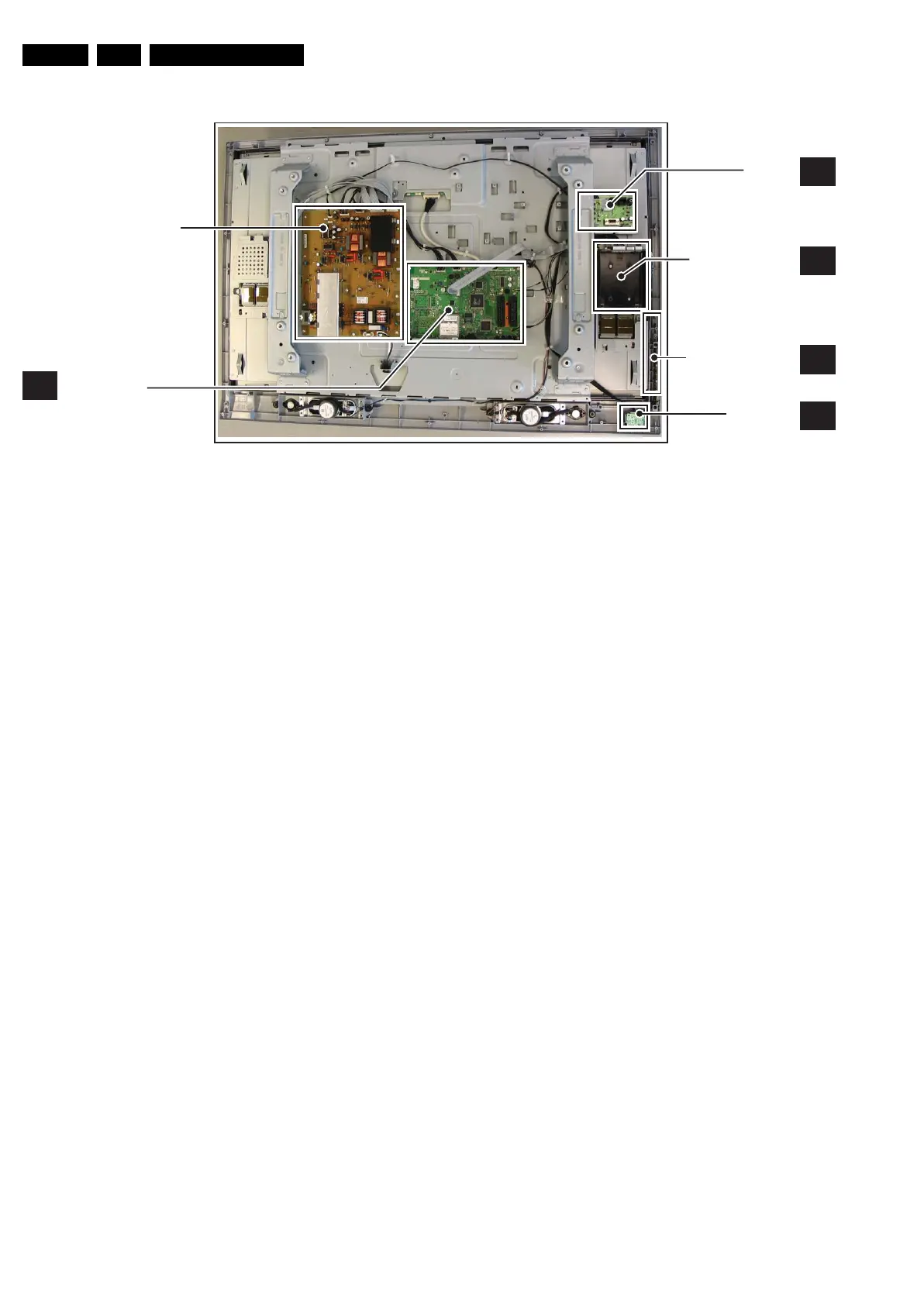

Figure 1-9 PWB/CBA locations (42" models)
H_17150_100.eps
100807
B
POWER SUPPLY UNIT
HC
i-BOARD
SMALL SIGNAL
BOARD
J
LED PANEL
E
CONTROL PANEL
SI
INTERFACE PANEL
