EN 5LC7.1HE LA 1.
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
EXT4: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq

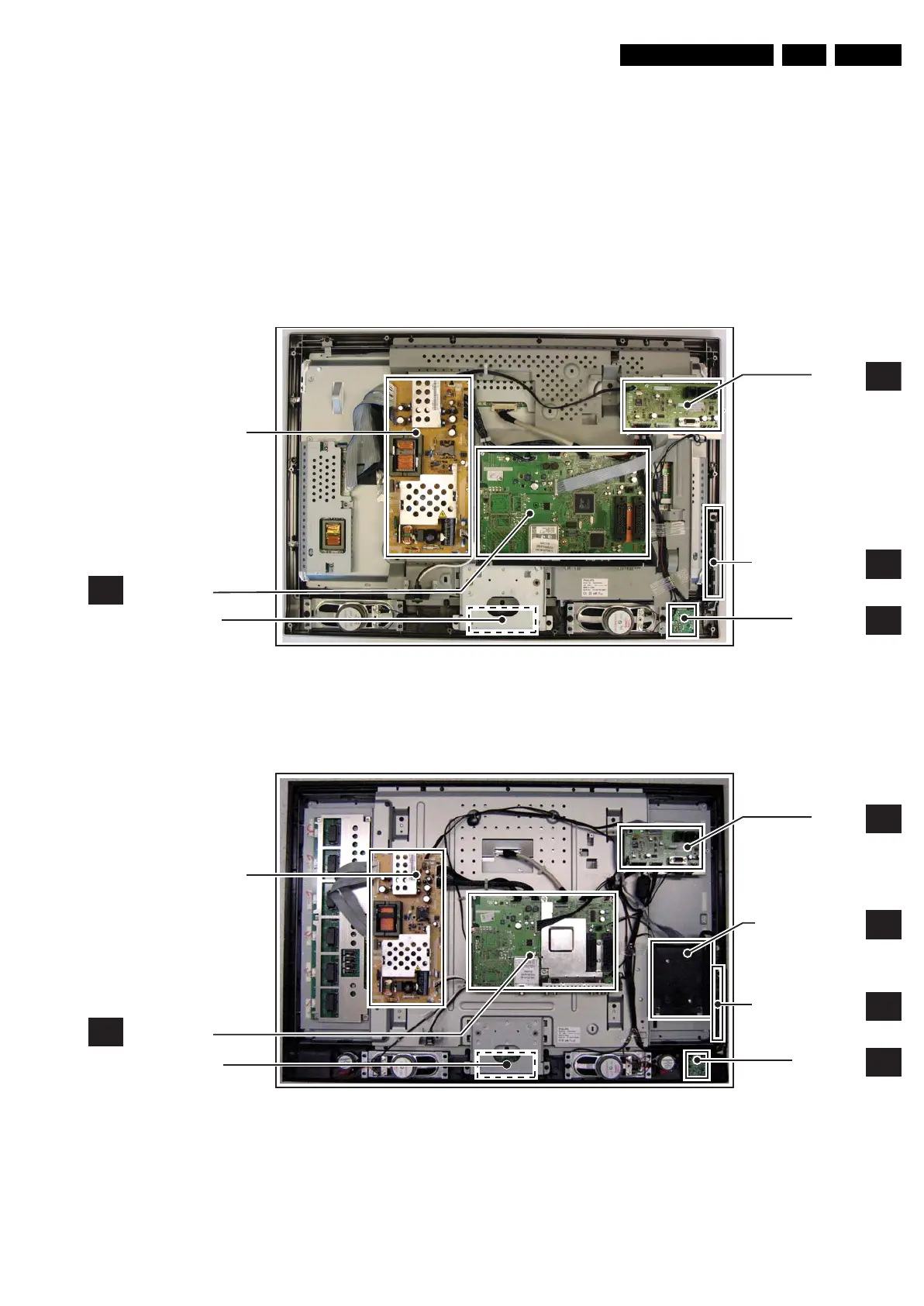

1.3 Chassis Overview
Figure 1-7 PWB/CBA locations (26" model)
Figure 1-8 PWB/CBA locations (32" models)
H_17150_104.eps
100807
B
POWER SUPPLY UNIT
HC
i-BOARD
SMALL SIGNAL
BOARD
CLOCK (optional)
J
LED PANEL
E
CONTROL BOARD
H_17150_105.eps
130807
B
POWER SUPPLY UNIT
HC
i-BOARD
SMALL SIGNAL
BOARD
J
LED PANEL
E
CONTROL BOARD
SI
INTERFACE PANEL
CLOCK (optional)
