EN 4 LC7.1HE LA1.
6 - POR Signal j
7 - TV Clock Clock Signal k
8 - Data in Data j
9 - Data out Data k
10 - +5V +5 V j
11 - H-sync Signal j
12 - V-sync Signal j
13 - Gnd CVBS in Gnd H
14 - SCL DDC clock j
15 - SDA DDC data j
16 - Reserve
17 - B in Blue in Signal j
18 - G in Green in Signal j
19 - R in Red in Signal j
20 - FBL in Signal j
21 - Gnd CVBS out Gnd H
22 - CVBS out 1 V
PP
/ 75 ohm j
23 - Pr_OUT 1 V
PP
/ 75 ohm k
24 - Pb_OUT 1 V
PP
/ 75 ohm k
25 - Y_OUT 1 V
PP
/ 75 ohm k
26 - Gnd Audio in Gnd H
27 - Audio R 0.5 V
RMS
/ 1 kohm k
28 - Audio L 0.5 V
RMS
/ 1 kohm k
29 - Audio R 0.5 V
RMS
/ 10 kohm j
30 - Audio L/Mono in 0.5 V
RMS
/ 10 kohm j
31 - Video CVBS/Yin 1 V
PP
/ 75 ohm j
32 - C in 0.7 V
PP
/ 75 ohm j
1.2.2 Rear Connections
Headphone - Out
Bk - Headphone 32 - 600 ohm / 10 mW rt
EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out

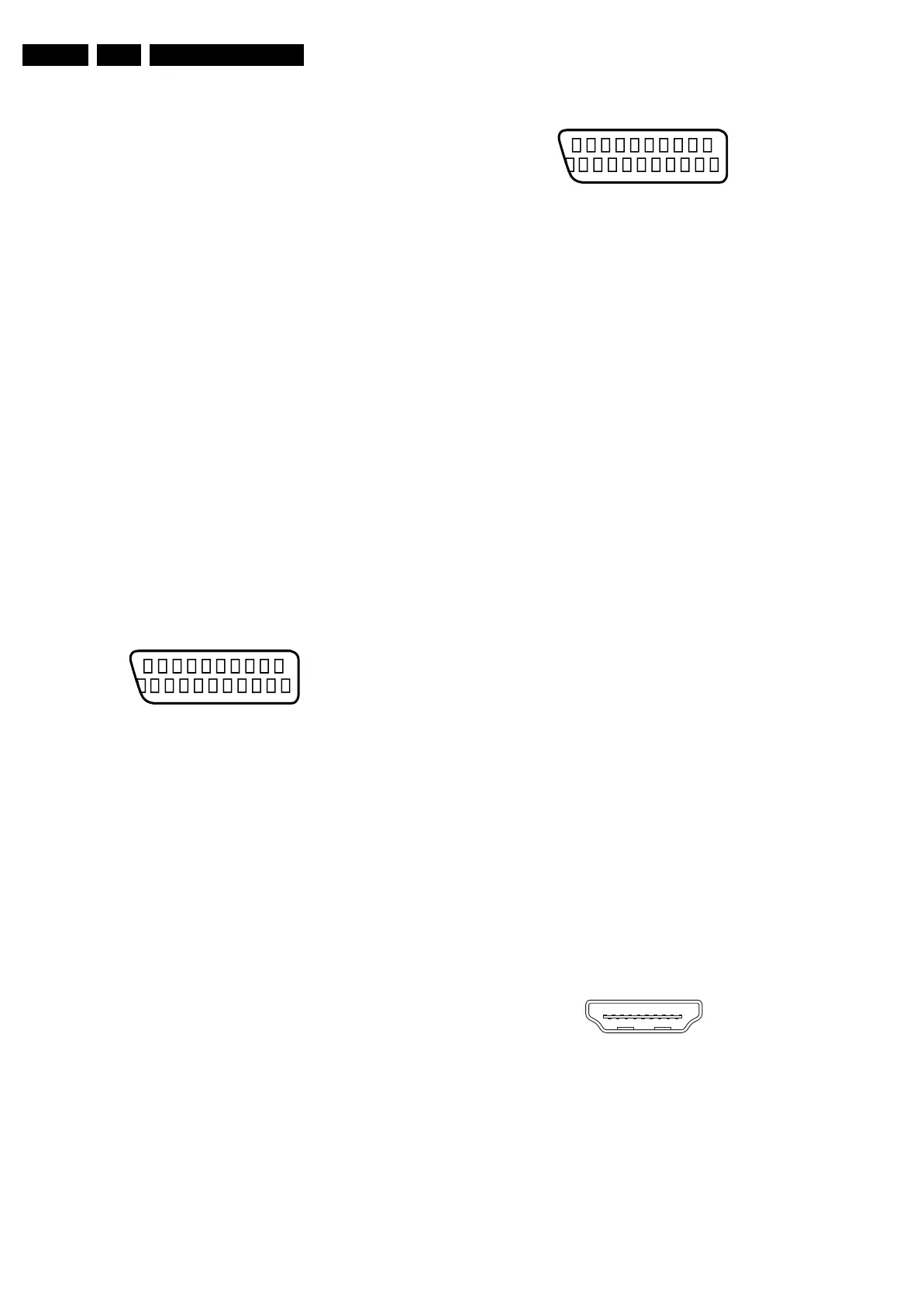

Figure 1-4 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Blue 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - Video Green 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
EXT2: Video YC - In, CVBS - In/Out, Audio - In/Out
Figure 1-5 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5-n.c.
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - C-out 0.7 V
PP
/ 75 ohm k
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9-n.c.
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - n.c.
12 - n.c.
13 - n.c.
14 - Ground P50 Gnd H
15 - C 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS/Y 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
Service Connector (ComPair)
1 - SDA-S I
2
C Data (0 - 5 V) jk
2-SCL-S I
2
C Clock (0 - 5 V) j
3 - Ground Gnd H
EXT3: Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
EXT3: S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
HDMI 1 & 2: Digital Video, Digital Audio - In
Figure 1-6 HDMI (type A) connector
1-D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4-D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7-D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
21
20
1
2
E_06532_001.eps
050404
21
20
1
2
E_06532_001.eps
050404
19
1
18 2
E_06532_017.eps
250505
