3. SERV. U: For use by service personnel
only.

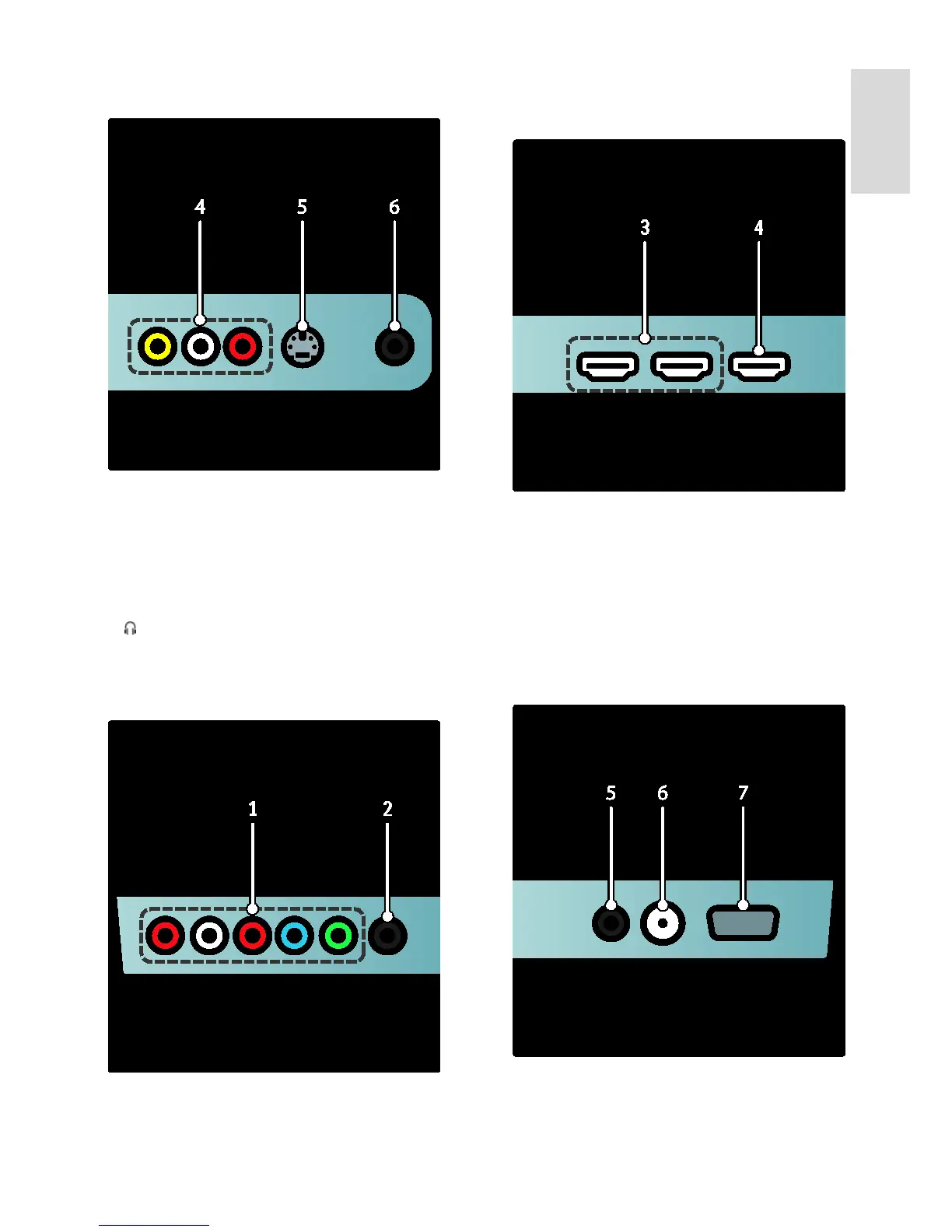

4. AV IN VIDEO: Video input from analog
devices.
AV IN L/R: Audio input from analog devices
connected to VIDEO or S-VIDEO.
5. S-VIDEO: Video input from analog
devices such as satellite receivers.
6
(Headphone): Stereo audio output to
headphones or earphones. Available on
certain models only.
Bottom
1. CVI 1 (Audio L/R and YPbPr):Video input
from analog devices such as DVD, receiver,
game console, etc. This connector is used
with audio input.
2. DIGITAL AUDIO OUT: Digital audio
output to home theaters and other digital
audio systems.
3. HDMI (Your TV may have one or two
HDMI connectors depending on your
model): Digital audio and video input from
high-definition digital devices such as Blu-ray
players.
4. HDMI ARC: In addition to regular HDMI
functionality, outputs TV audio to HDMI
ARC compliant device, such as a home
theatre system.
5. AUDIO IN: Audio input from devices that
require a separate audio connection, such as
a computer.
