Philips LF501EM4 - Wiring Diagram [TYPE A]

FL13.16AWI11-1

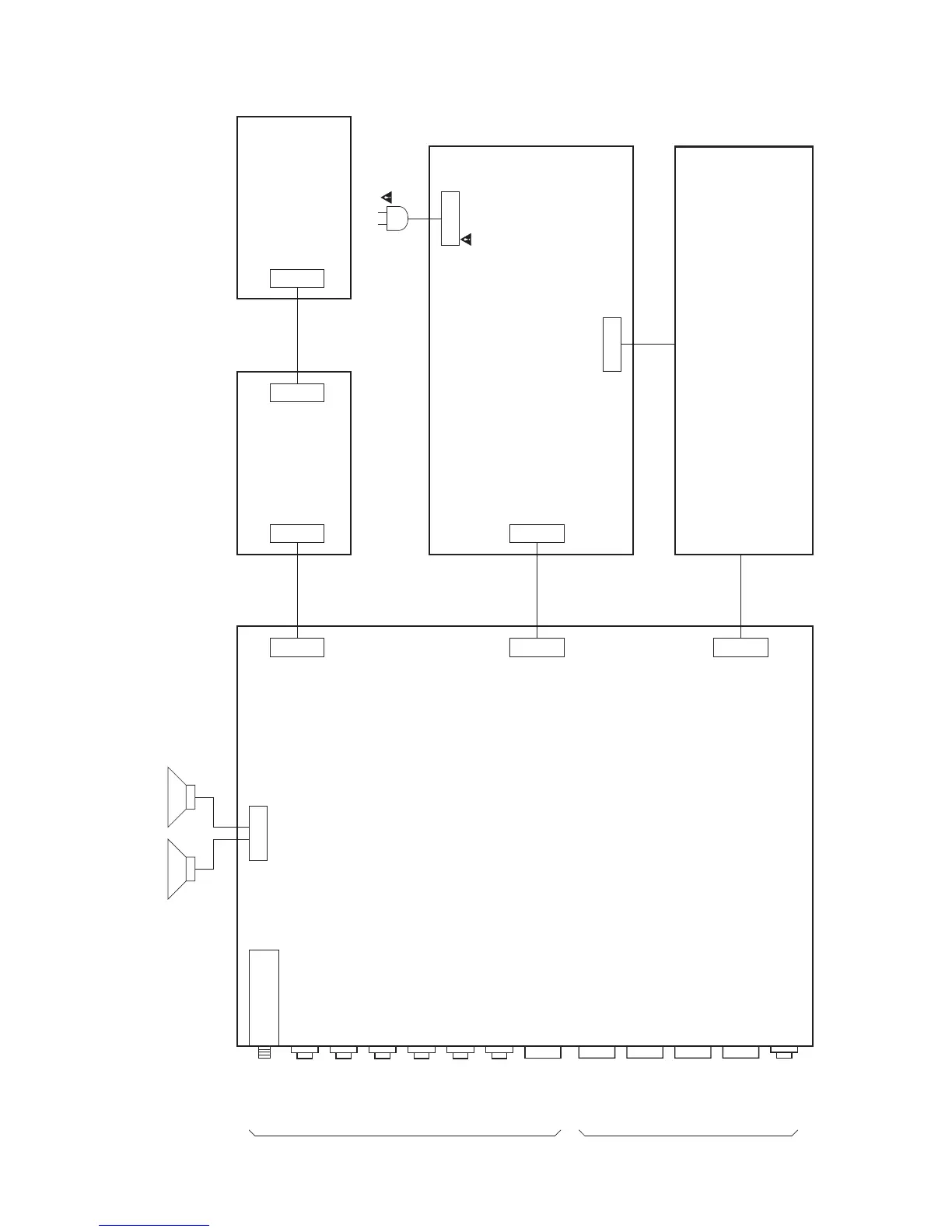

WIRING DIAGRAM
23
1
CN501
1
23
CN3701
1
51
CN3013
9 1
CN4052
1 9
CN3101
16
CN1001
BW
CN601
DIGITAL MAIN CBA UNIT
POWER SUPPLY CBA
IR SENSOR CBA UNIT FUNCTION CBA UNIT
LCD PANEL ASSEMBLY
AC CORD
CL3701 CL3013 CL3101
1 2
CN4001
1 2
CN4051
CL4001
14
CN3801
SP3801 SPEAKER L-CH
SP3802 SPEAKER R-CH
CL3801
TUNER UNIT
COMPONENT -Y/VIDEO-IN COMPONENT -Pb-IN COMPONENT -Pr-IN AUDIO(L)-IN AUDIO(R)-IN
REAR
DIGITAL AUDIO-OUT (COAXIAL)
HDMI- CONNECTOR-1 HDMI- CONNECTOR-2 HDMI- CONNECTOR-3
PC-RGB-IN USB JACK
SIDE
HEADPHONE JACK
[TYPE A]
