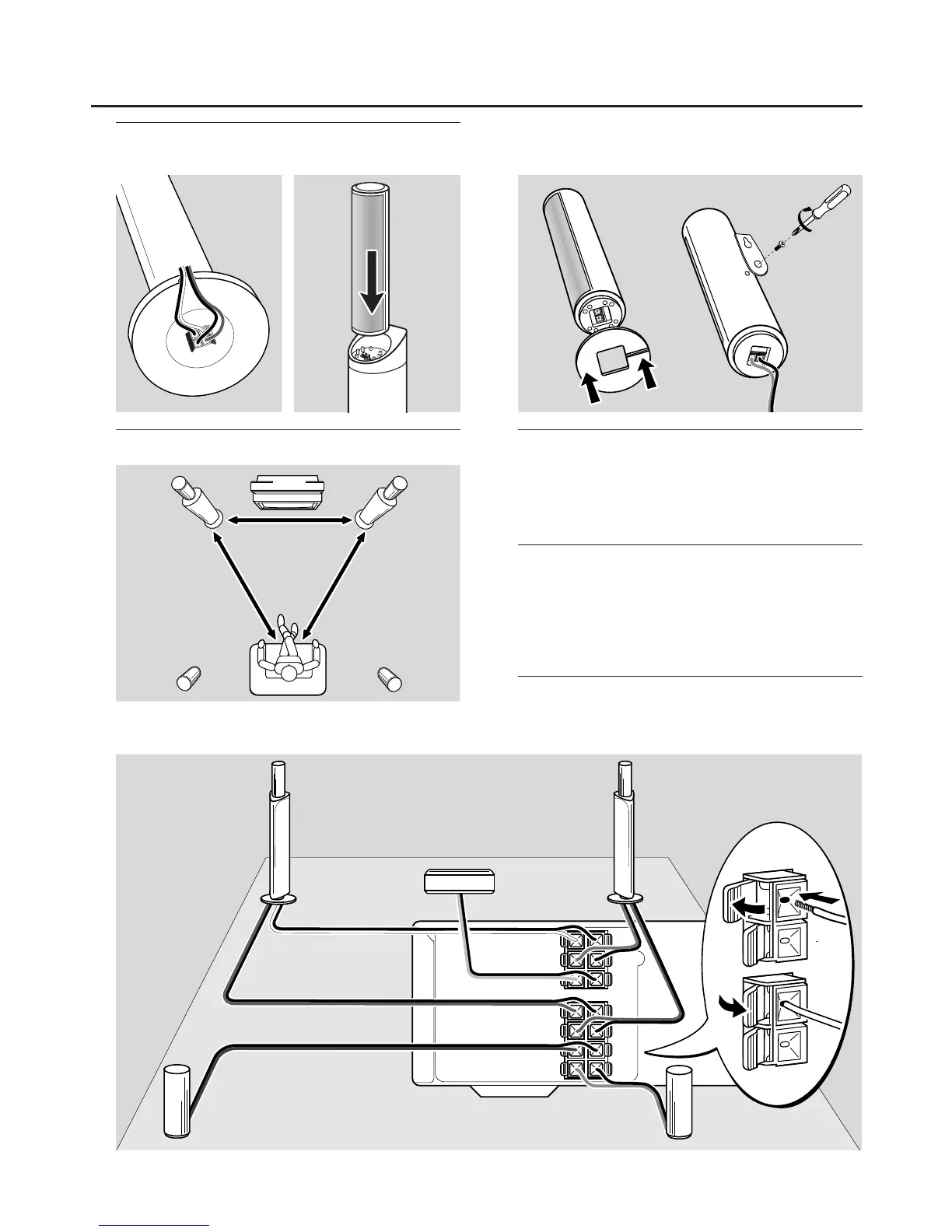

Assembling the speakers
Subwoofers and front speakers
Positioning the speakers
Rear speakers
Connecting the speakers
Connect the speakers using the supplied speaker cables.
Match the colours of the speaker sockets and the speaker
cables:
Speaker
++ −−
Front Left white black
Front Right red black
Centre green black
Subwoofer Left violet black
Subwoofer Right violet black
Rear Left blue black
Rear Right grey black
2
Quick use guide LX9000R
CENT.
4 Ω
SURR
LEFT
4 Ω
SURR
RIGHT
4 Ω
SUB
LEFT
8 Ω
FRONT
LEFT
4 Ω
FRONT
RIGHT
4 Ω
SUB
RIGHT
8 Ω
front L
subwoofer L
rear L rear R
centre
front R
subwoofer R
front R,
subwoofer R
front L,
subwoofer L
rear L rear R
centre
or
to place the
rear speakers
on a shelf or
on the floor
to hang the
rear speakers
on the wall
