Philips MC-M570/21 - Wiring Diagram 5 DTC Module

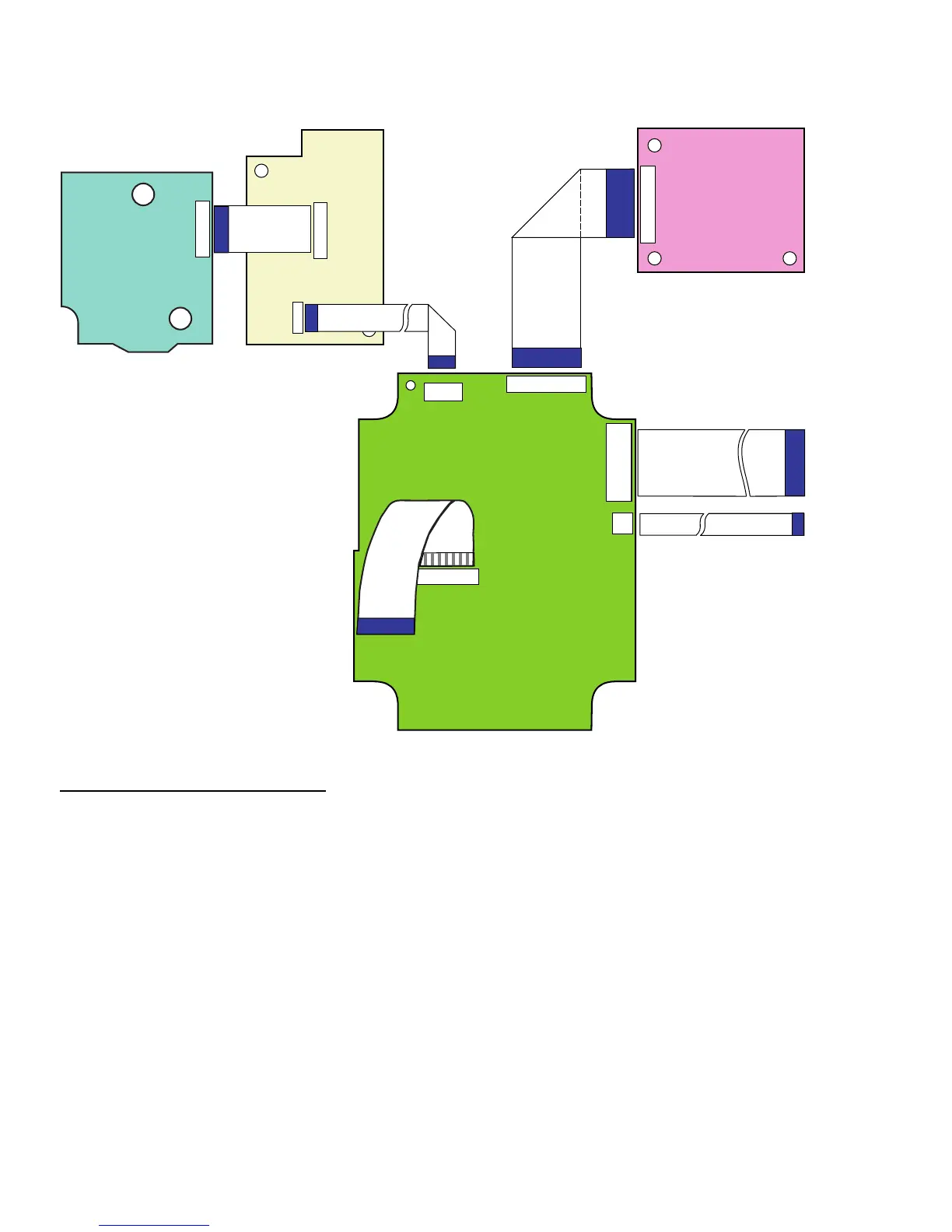

Wiring Diagram 5DTC Module
10-6
5DTC Wiring Diagram 2002 08 30
8001
8052
dig.out (optional)
8051
to / from
AF Board
to / from
CD-drive
1825
1820
1800
1824
1802
1801
1451
1823
Control Board
Motor Board
MP3 Board
CD Board
8021
The FFC-Cables are available as sparepart.
8001 3103 308 93090 FFC CABLE 16Pin 80mm BD Connection from CD Board to CD Drive
8051 3103 308 93100 FFC-CABLE 19Pin 90mm AD Connection from CD Board to MP3 Board
8052 3103 308 93120 FFC CABLE 8Pin 80mm BD Connection from CD Board to Control Board
8021 3103 308 93110 FFC-CABLE 16Pin 60mm AD Connection from Control Board to Motor Board
