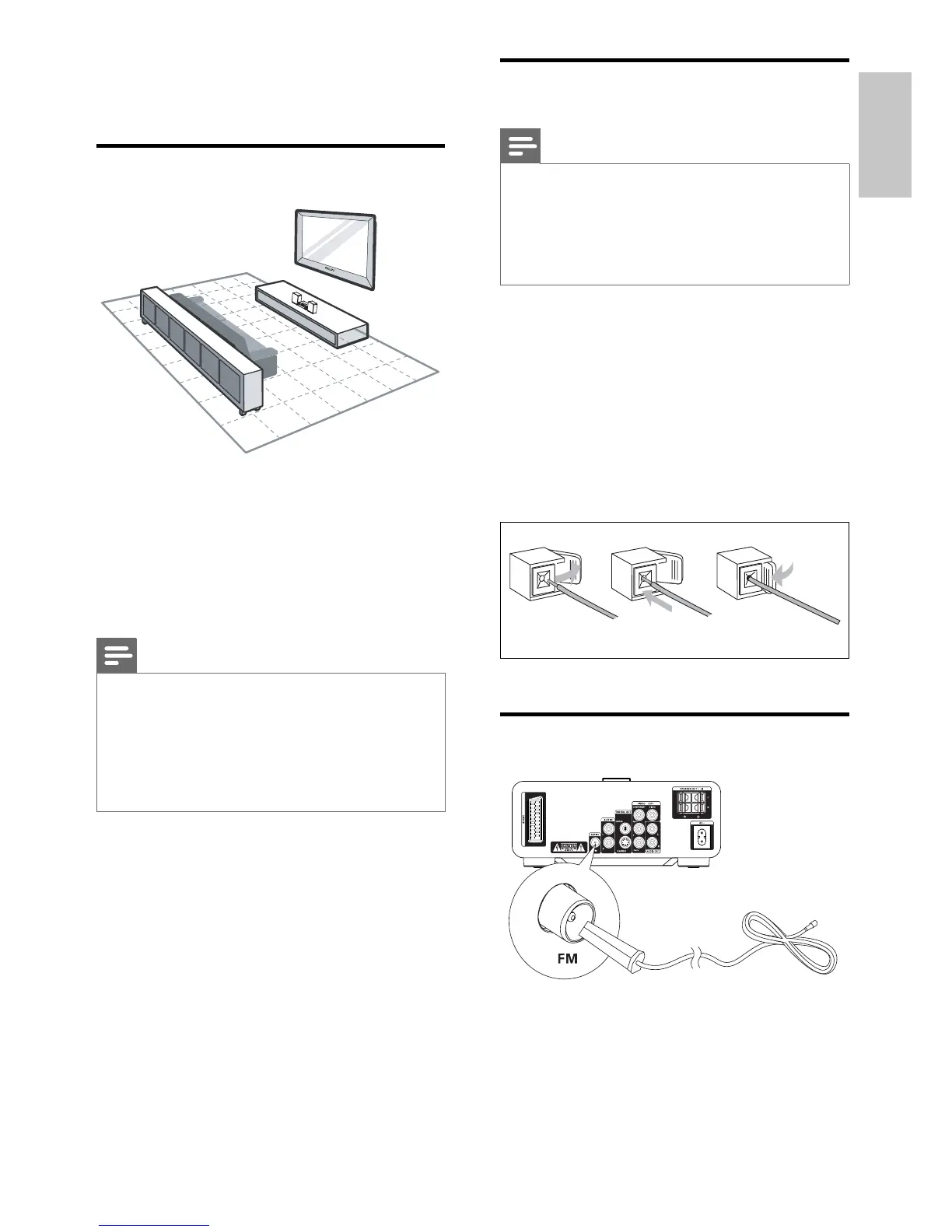

Connect speakers
Note
Ensure that the colors of the speaker wires and •
terminals are matched.
For optimal sound, use the supplied speakers only.
•
Connect only speakers with impedance that is the •
same or higher than the supplied speakers. Refer to the
Specifi cations section of this manual.
1 Hold down the socket fl ap.
2 Insert the stripped part of the wire
completely.
Insert the right speaker wires to “ • R”,
left speaker wires to “ L”.
Insert the red wires to “ • +”, black wires
to “ -”.
3 Release the socket fl ap.
Connect FM antenna
abc
8
3 Connect
Place the unit
1
Place the unit near to the TV.
2 Place the left and right speakers at equal
distance from the TV and at an angle
of approximately 45 degrees from the
listening position.
Note
To avoid magnetic interference or unwanted noise, •
never place this apparatus and speakers too close to
any radiation devices.
Place this unit on top of a table or mount it on the wall.
•
Never place this unit in an enclosed cabinet.•
Install this unit near the AC outlet where the AC power •
plug can be easily reached.
