Philips MCM277 - SW Board; SW Board Top Side Layout; SW Board Bottom Side Layout; CD & MCU Board Electrical Parts List

ELECTRICAL PARTS LIST - CD & MCU BOARD ( FOR CDM _ DAYANG M93 )
D128 994000004422 SCHOTTKY, PMEG2010
D165 994000004422 SCHOTTKY, PMEG2010
D302 996510000271 DIODE RLS4148 LL-34
D303 994000004285 ZENER DIODE UDZS6.8B UMD2
D304 994000004285 ZENER DIODE UDZS6.8B UMD2
D305 994000004285 ZENER DIODE UDZS6.8B UMD2
IC100 996500041888 IC MN6627954MA DSP
IC102 994000004278 IC SCA105 MOTOR DRIVER
IC103 996500041890 IC MN101E01J TA MASKING
IC104 994000005674 IC BR24L02F-WE2
IC300 994000004287 IC OTI-6888G USB DECODER
IC301 994000004286 IC AP34063A CONVERTER
IC302 994000004288 IC W27C512-45Z EPROM
IC501 996510006486 IC MN101CF91D MCU TQFP048
IC504 994000005674 IC BR24L02F-WE2
L100A 994000004279 RADIAL IND. 1.2R 2.2UH +/-5%
L155A 994000004279 RADIAL IND. 1.2R 2.2UH +/-5%
L156A 994000004279 RADIAL IND. 1.2R 2.2UH +/-5%
L157A 994000004279 RADIAL IND. 1.2R 2.2UH +/-5%
L158 996510006487 IND.MULTILAYER 2.2UH,210MA,10%
L159A 994000004226 RAD AXIAL IND. 100UH 3.5R
L302 994000004289 TOROIDAL COIL 220UH +/-10%
L303 994000004226 RAD AXIAL IND. 100UH 3.5R
L304A 996510006488 INDUCTOR 10UH+/-10% 0.1R
Q100 994000004275 TRANSISTOR 2SB709A
Q103 994000004223 TRANSISTOR 3CA8550 HFE=120-220
Q106 994000004224 TRANSISTOR 3DA8050 HFE=120-200
Q107 994000004223 TRANSISTOR 3CA8550 HFE=120-220
Q502 994000004267 TRANSISTOR MPS8050S
SW501 994000004283 DETECT SWITCH DTS-18 1P1T
SW502 994000004283 DETECT SWITCH DTS-18 1P1T
SW506 994000004259 SWITCH TACT TSA-06430-150
X100 994000004273 CER RESONATOR 16.93MHZ +/-0.5%
X101 996510000295 XTAL 8.38MHZ +/-20PPM CAP=20PF
X501 994000005671 XTAL 32.768KHZ +/-20PPM 12PF
X502 994000004266 X'TAL 4.194304MHZ 30PF
Note: Only these parts mentioned in the list are
normal service parts.
7-6 7-6

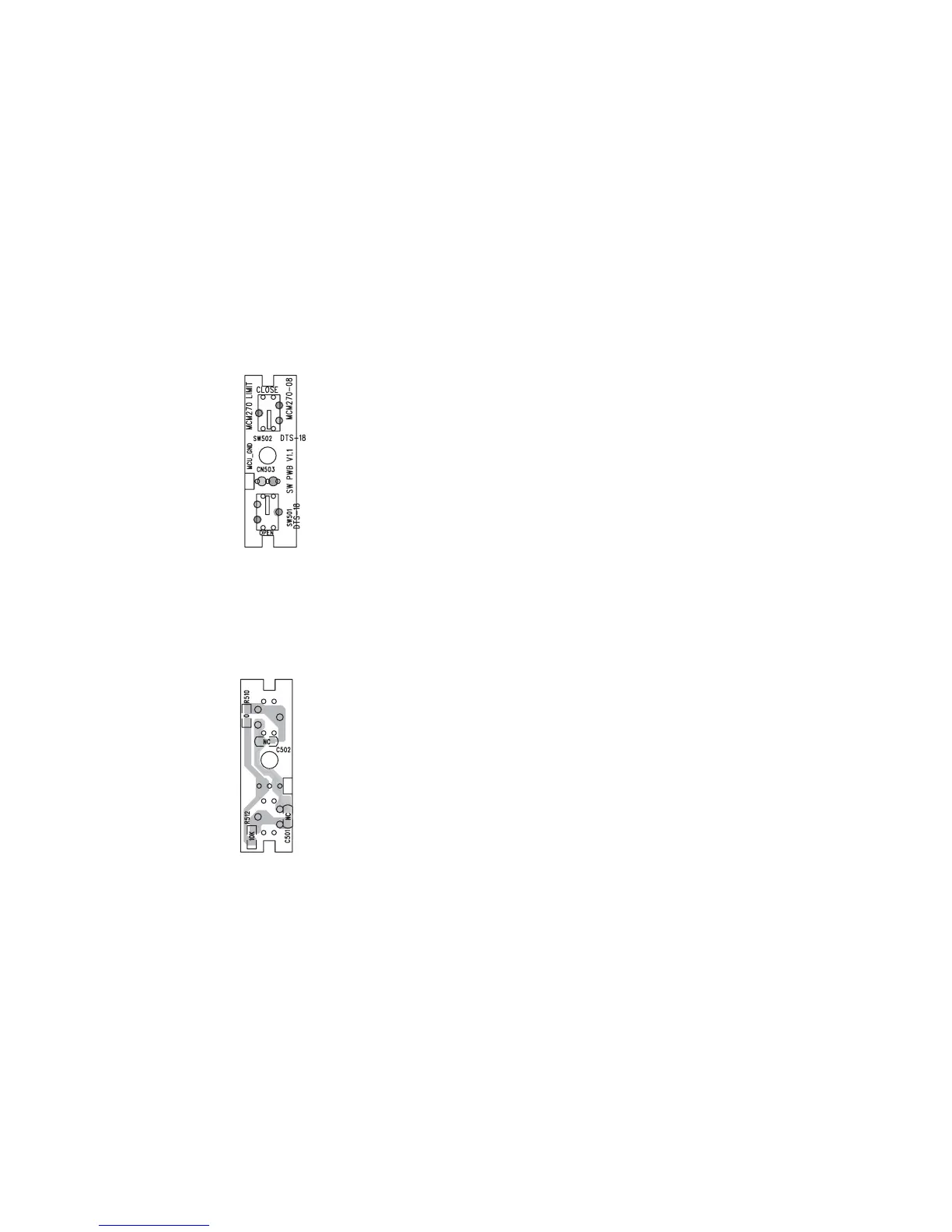

LAYOUT DIAGRAM - SW BOARD
TOP SIDE
LAYOUT DIAGRAM - SW BOARD
BOTTOM SIDE
