Philips MCM390 - Disassembly Diagrams; Back Cabinet and Power Board Removal

xx4 - 1
A2
A1
A3
A4

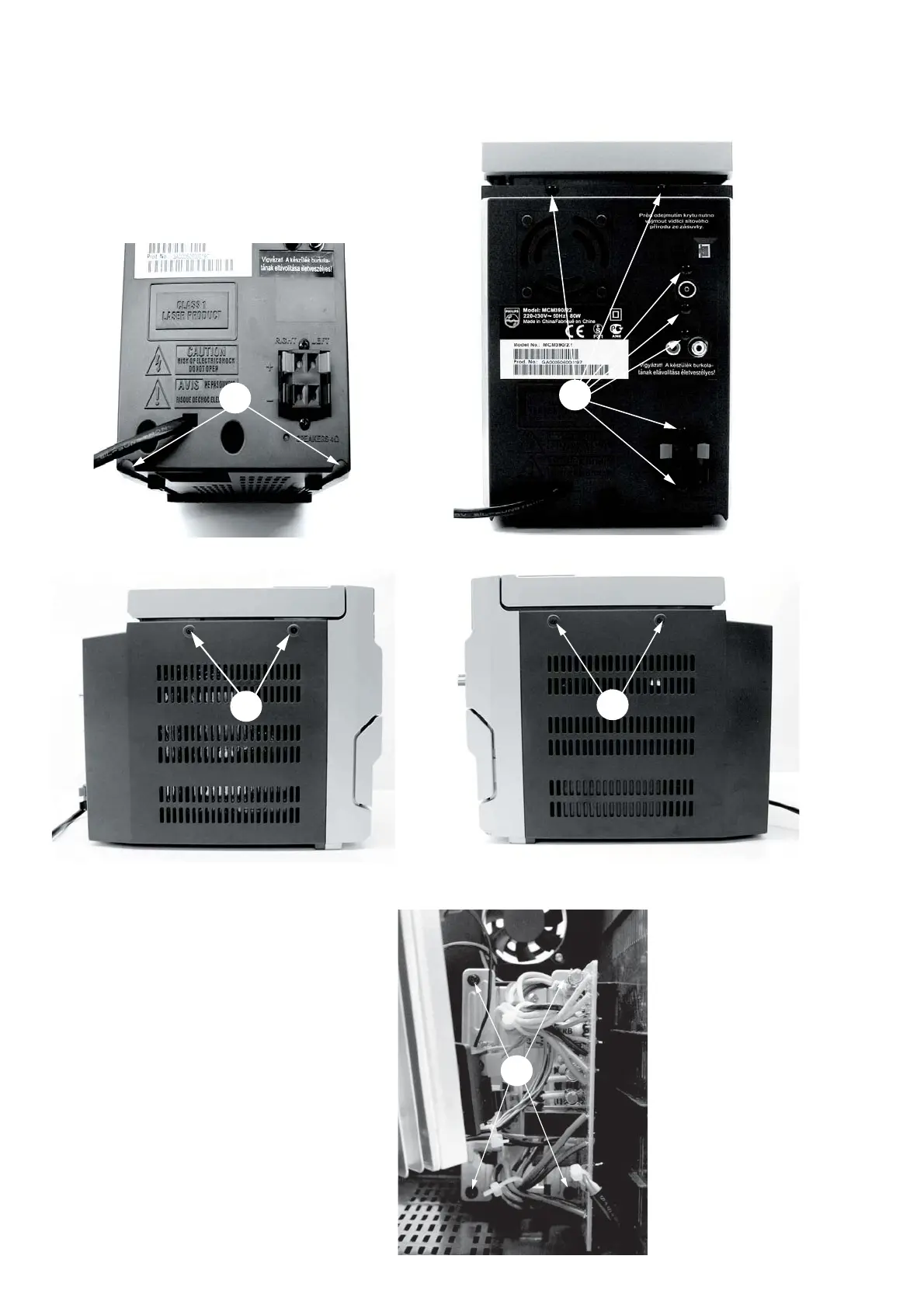

STEP A : Remove Back Cabinet
- A1 : Remove 2 screws (SP3x10)
- A2 : Remove 7 screws (SP3x10)
- A3 : Remove 2 screws (K3x10)
- A4 : Remove 2 screws (K3x10)
B
STEP B :
Remove Power Transformer
and Mains board
- Remove 4 screws (SP3x12)
DISASSEMBLY DIADRAMS
