Philips MCM906 - Disassembly Procedures; Top Cabinet Disassembly; Side Panel Removal; DVD Mechanism Bracket Removal

-1
3-1

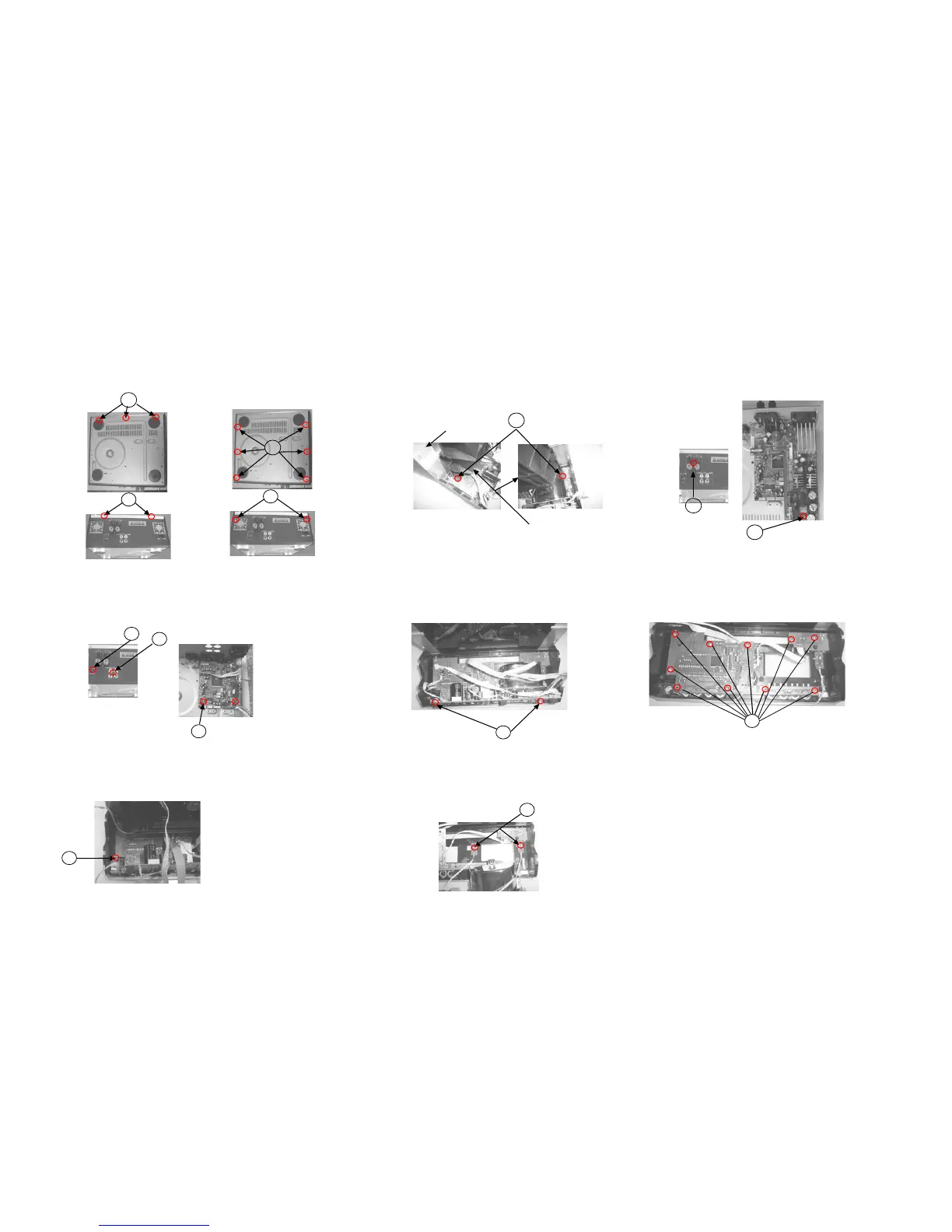

Disassembly Diagram
1
1
1
1
2
2
1
3
2
1
1
1
1
2
A,Loosen screws as below sketch map to
open the top cabinet:
1,screws:3x6BMTT(3PCS)
2,screws:3x6FMTT(2PCS)
E,Loosen screws as below sketch map to
remove the Decoder Board:
1,screws:3x10PA(1PCS)
2,screws:3x6BM(2PCS)
H,Loosen screws as below sketch map to
remove the USB Board:
1,screws:3x6PA(1PC)
I,Loosen screws as below sketch map to
remove the LAMP Board:
1,screws:2.6x4BB(2PCS)
F,Loosen screws as below sketch map to
remove the Prepositive Board:
1,screws:3x6PA(2PCS)
G,Loosen screws as below sketch map to
remove the Display Board:
1,screws:2.6x6BB(10PCS)
B,Loosen screws as below sketch map to
remove the both sides panels:
1,screws:3x6PA(6PCS)
2,screws:3x10PA(2PCS)
C,Loosen screws as below sketch map to
remove the DVD mechanism bracket:
1,screws:3x12BA(2PCS)
2,after loosed the screws, push the DVD mechanism
bracket breadthwise to remove it
D,Loosen screws as below sketch map to
remove AMP board:
1,screws:3x10PA(1PC)
2,screws:3x10PA(4PCS)
DVD mechanism bracket
Aluminium Top Cover
3,screws:3X6PMTT(1pc)
