EN 38 12. MCP9350i
Hardware Repair
12. Hardware Repair
This section provides instructions on how to remove and replace modules from the Media-Center.
12.1. Top Cover
12.1.1. Top Cover Removal
WARNING:
Disconnect the AC power from the MCP9350i before removing the top cover.
1. At the rear of the chassis remove the 4 torx screws (1). See Figure 12.1-1.
2. Slide the top cover towards the rear, until the locking tabs disengage. See Figure 12.1-2.
3. Lift the top cover straight up and remove it from the chassis.
4. Store the top cover in a safe place.

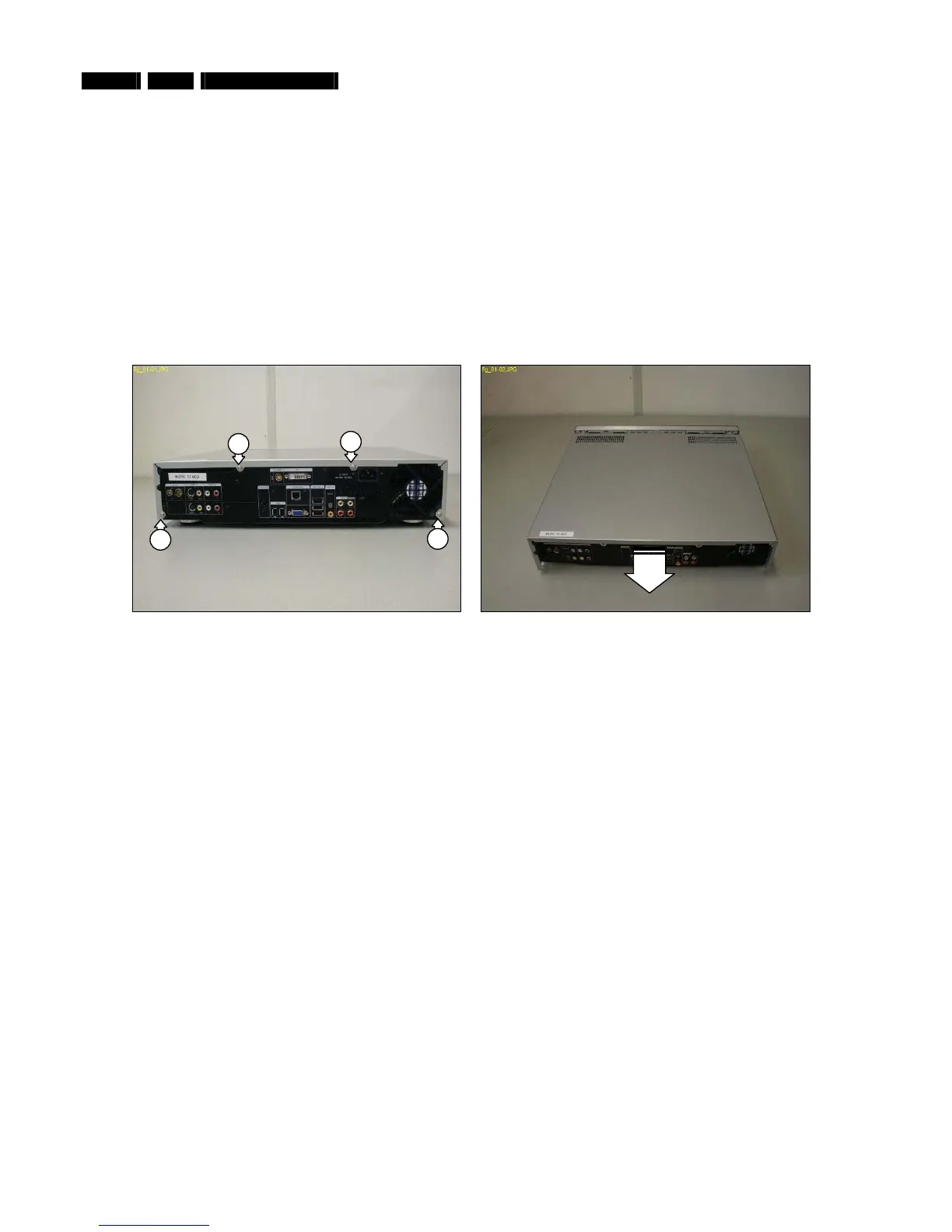

Figure 12.1-1 Figure 12.1-2
12.1.2. Top Cover Re-Assembly
To re-assemble the top cover, do all processes described in paragraph 12.1.1 in reverse order.
Note: The torque setting required for the top cover screws (1) is 8kg-cm
Note: Check the top cover for damage after re-assembly.
