Philips MX5100VR - Page 103

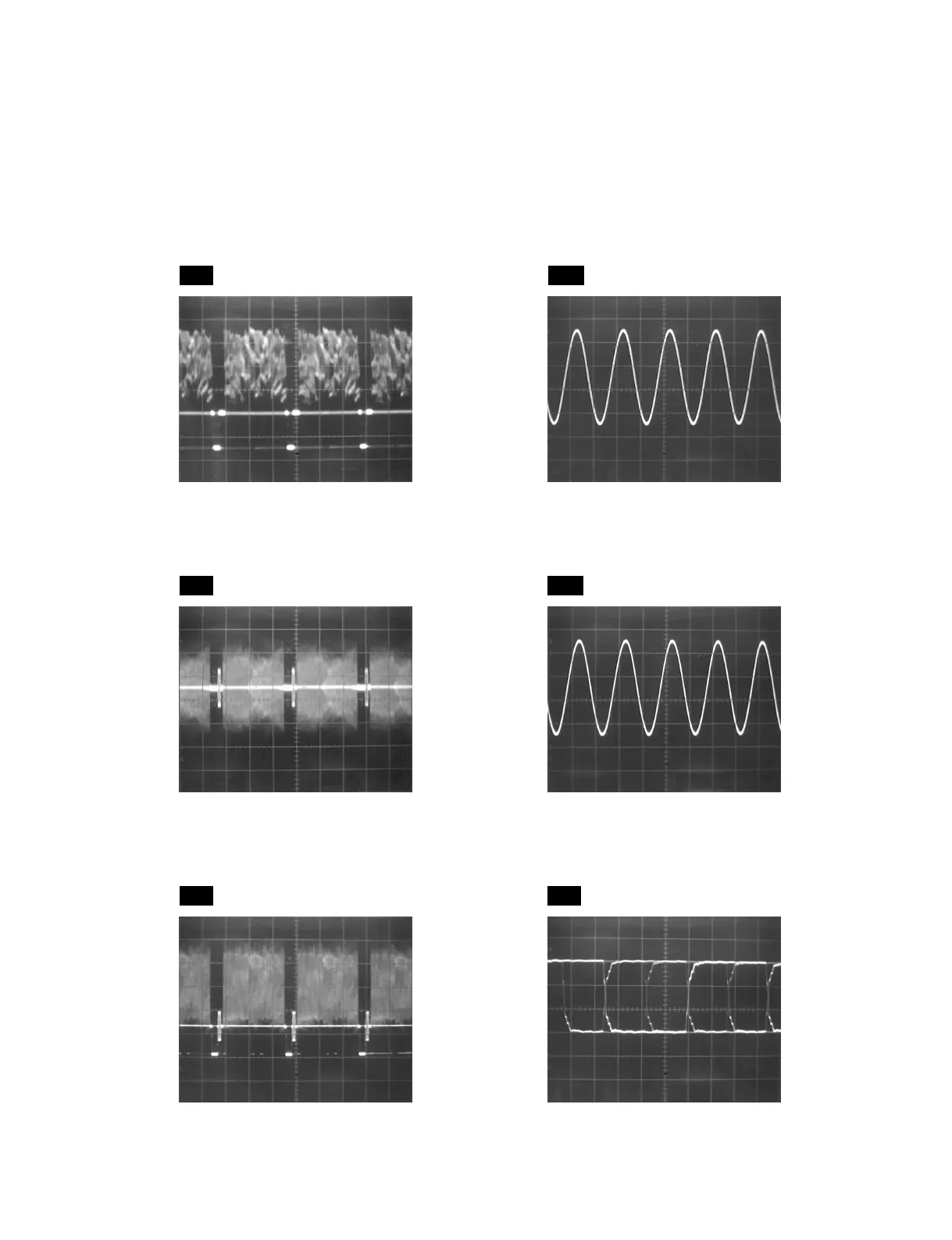

WAVEFORMS
1-13-2 E9015WFPAL
WF4 Pin 1 of CN1601
WF6 Pin 31 of IC1402
WF5 Pin 9 of CN1601
VIDEO-Y 0.2V 20 µ sec
VIDEO-C 0.2V 20 µ sec
VIDEO-CVBS 0.5V 20 µ sec
WF7
AUDIO-L
Pin 13 of CN1601
1V 0.5msec
WF8
AUDIO-R
Pin 15 of CN1601
1V
WF9
SPDIF
Pin 18 of CN1601
1V 0.1 µ sec
NOTE:
Input
CD: 1kHz PLAY
(WF7~WF9)
DVD: POWER ON (STOP) MODE
(WF4~WF6)
