Philips MX5100VR - Service Fixture and Tools

2-2-1 U25PCFIX
J-1-1, J-1-2
J-2
J-3
J-5
J-4

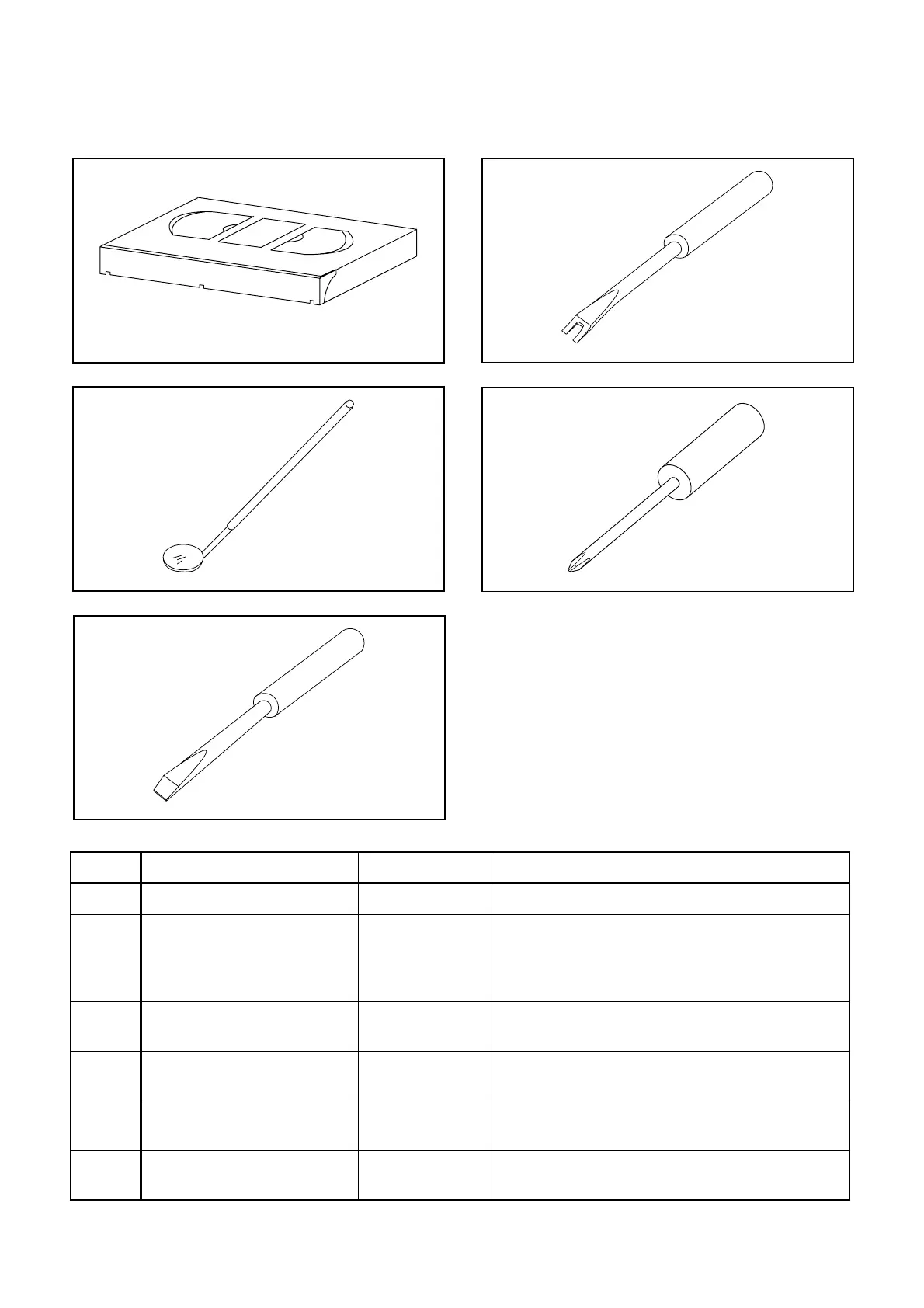

SERVICE FIXTURE AND TOOLS
Ref. No. Name Part No. Adjustment
J-1-1 Alignment Tape FL6A Electrical Adjustments
J-1-2 Alignment Tape FL6N8
(2 Head model)
FL6NS8
(4 Head model)
Azimuth and X Value Adjustment of Audio Control
Head / Adjustment of Envelope Waveform
J-2 Guide Roller Adj.Screwdriver Available
Locally
Guide Roller
J-3 Mirror Available
Locally
Tape Transportation Check
J-4 Azimuth Adj.Screwdriver + Available
Locally
A/C Head Height
J-5 X Value Adj.Screwdriver - Available
Locally
X Value
