2-4-4 H9520DA
[1]
(S-1)
(S-1)

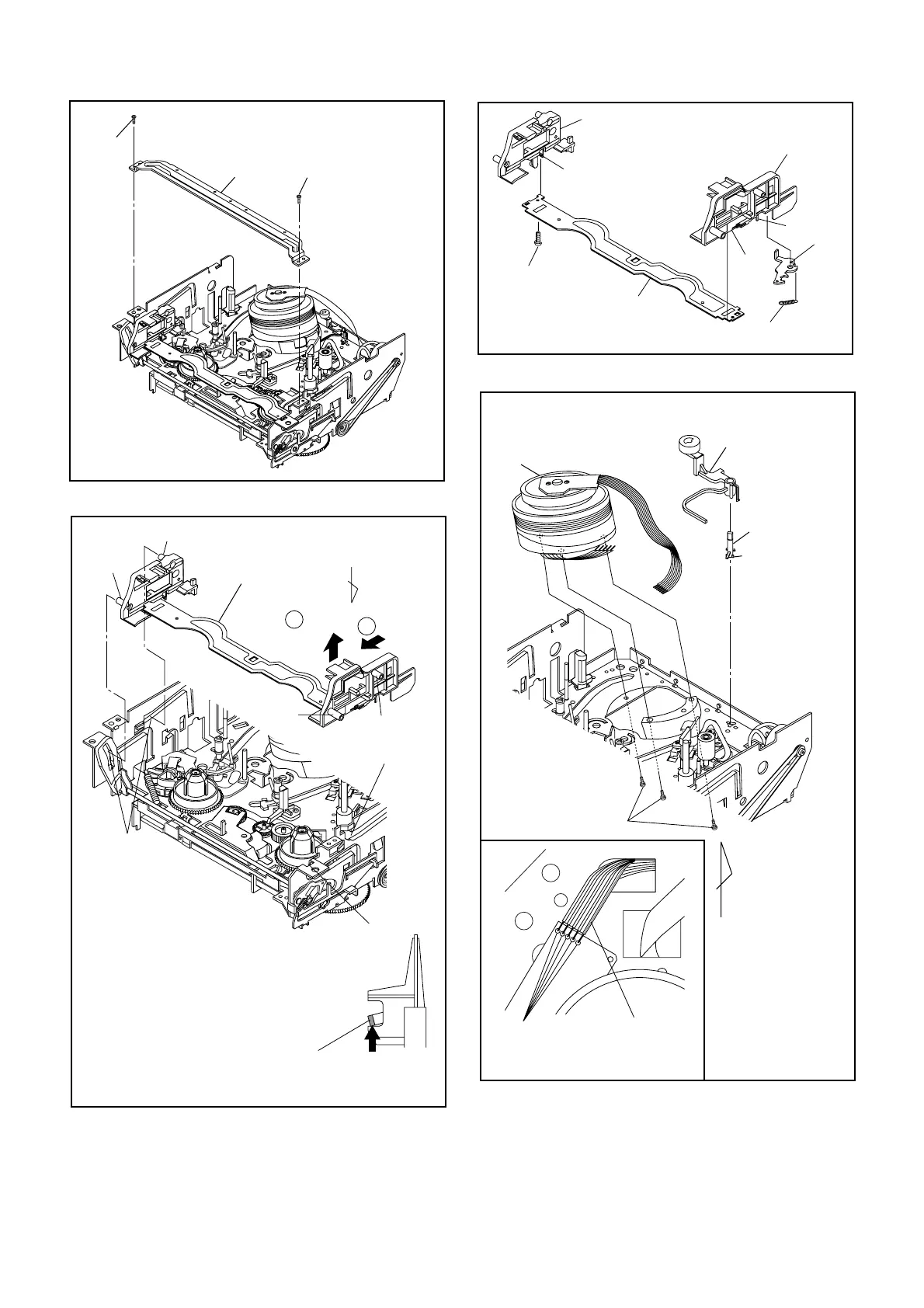

Fig. DM3
Fig. DM4
Locking tab
View for A
First, while pushing the locking tab as
shown in the right, slide and pull up the right
side on [2] to release Pin A and Pin B from
the slots A.
Then, remove Pin C and Pin D on [2] from
the slots B as shown.
[2]
Pin A
Slots B
Pin C
Pin B
Pin D
Pull up
Slide
Slot A
Slot A
1
2
A
[3]
[4]
[5]
[6]
(L-1)
(L-2)
(P-1)
Fig. DM5
(L-3)
(S-1A)
(L-12)
[49]
[50]
[7]
(S-2)
A
Fig. DM6
View for A
Desolder
from bottom
Lead with
Red Stripe
