Philips MX5100VR - Page 40

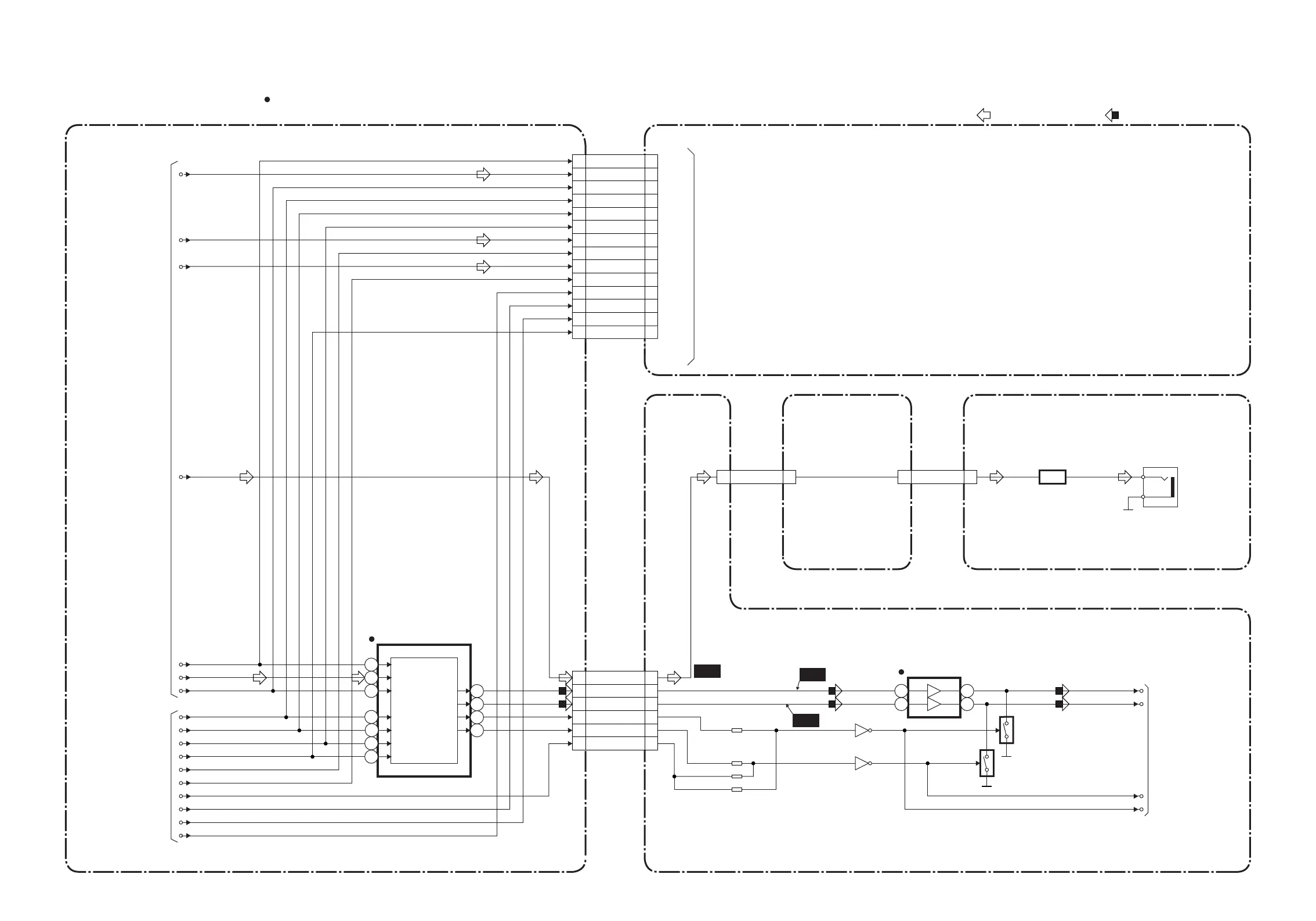

DVD Audio Block Diagram
E9015BLAD
1-11-19 1-11 -20
DIGITAL
AUDIO
OUT
JK1202
Q1203
Q1201
Q1202
CN601 CN1601
16 16 DVD-A(R)-MUTE
TO DVD SYSTEM
CONTROL/SERVO
BLOCK
TO DIGITAL
SIGNAL PRO
CESS
BLOCK
DVD-A-OUT(L)
DVD-A-OUT(R)
PCM-BCK
SPDIF
PCM-DATA3
PCM-LRCLK
ADAC-MD
ADAC-MC
ADAC-ML0
PCM-SCLK
PCM-DATA0
PCM-DATA1
PCM-DATA2
ADAC-ML1
ADAC-ML2
MAIN CBA
TUNER CBA
DAC CBA
JACK-C CBA
DVD MAIN CBA UNIT
DVD AUDIO SIGNALDATA(AUDIO) SIGNAL
18
18
SPDIF
CN702 CN703
2
2
SPDIF
CN1201 CN1202
2
2
SPDIF
A-MUTE
A-MUTE2
M-MUTE
2CH-L/6CH-H
Q1204
WF7
WF9
WF8
AUDIO
D/A
CONVERT
ER
IC601 (AUDIO DAC)
7
8
12
11
1
2
3
13
14
15
16
TO Hi-Fi AUDIO
BLOCK
<VCR SECTION>
A-MUTE(L)
A-MUTE(R)
IC1201
(AMP)
2
6
1
7
13 13DVD-A(L)
15
15
DVD-A(R)
14 14 DVD-A(L)-MUTE
12 12 DVD-A-MUTE
CN901 CN7102
9
9
PCM-BCK
7
7
PCM-DATA0
10
10
PCM-LRCK
12
12
ADAC-MD
11
11
ADAC-MC
13
13
ADAC-ML0
16
16
PCM-SCLK
5
5
PCM-DATA1
14
14
ADAC-ML1
3
3
PCM-DATA2
20
20
ADAC-ML2
18
18
A-MUTE2
19
19
M-MUTE
2
2
2CH-L/6CH-H
AMP
Q1351
" " = SMD
NOTE FOR WIRE CONNECTORS:
1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.
)
2.
PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF T
HE PCB.
(WIRE IS SOLDERED DIRECTLY.
)
TO AUDIO AMP BLOCK
