Philips MX5100VR - Page 48

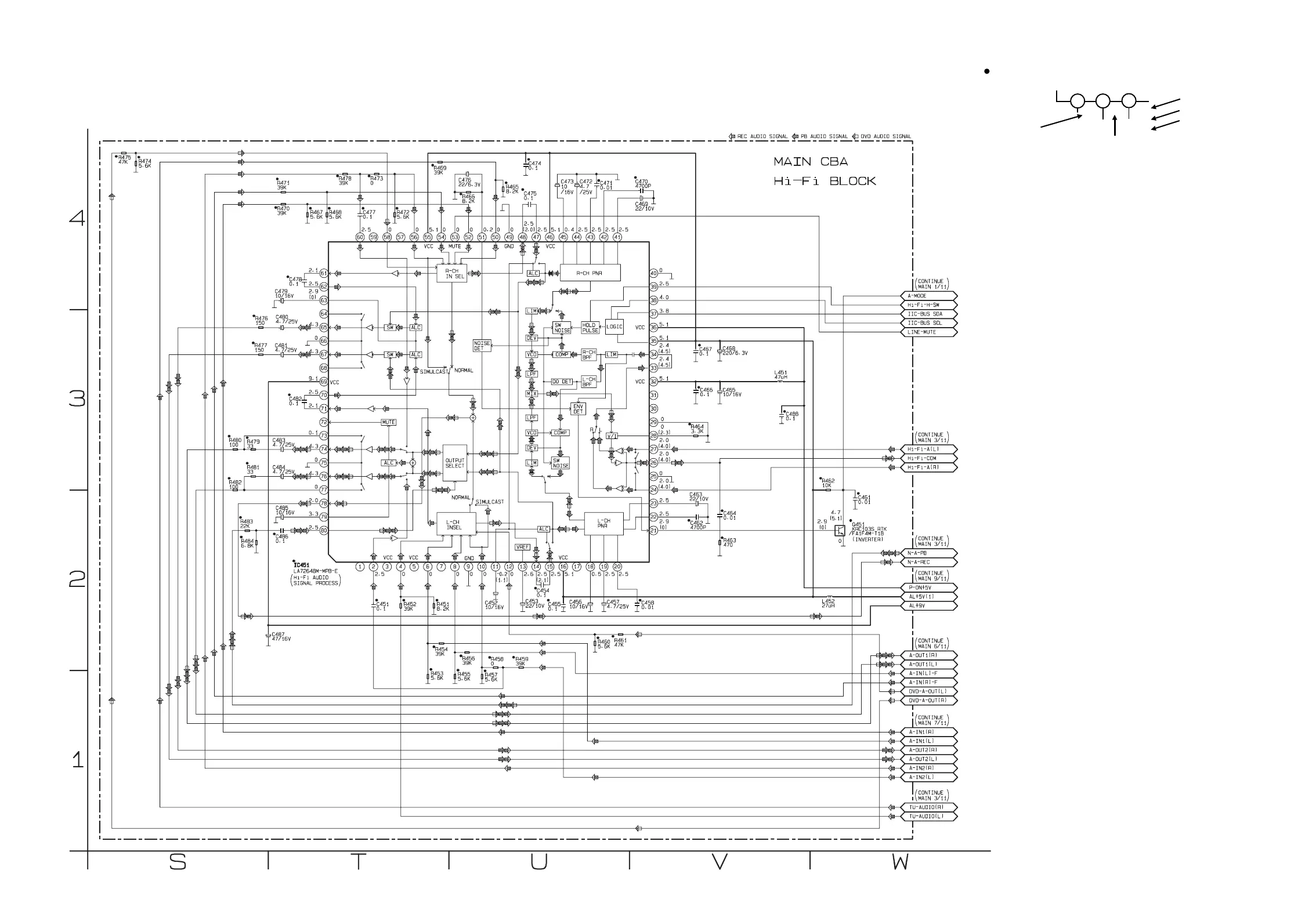

Main 4/11 Schematic Diagram < VCR Section >
1-12-11
1-12-12
E9015SCM4
“ “ = SMD
THE SAME VOLTAGE FOR BOTH
PLAY, REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
<5.0>
~
DVD MODE
