Philips MX5100VR - Page 67

1-12-45
1-12-46
TUNER CBA
Parts Location Guide
Ref No. Position
C701 D-1
C703 D-1
C706 E-1
C708 E-1
C709 E-1
C711 A-2
C712 E-1
C714 E-1
C715 A-2
C716 A-2
CN701 C-1
CN703 B-2
CN1201 E-2
CN2013 C-1
CN2014 C-1
D701 D-1
L701 D-1
L702 E-1
L703 D-1
L704 E-1
R703 A-2
R704 A-2
R705 A-2
R706 A-2
R707 B-2
R1422 E-2
R1442 E-2
JK1401 E-2
TU701 D-1
RESISTORS
COILS
CONNECTORS
CAPACITORS
MISCELLANEOUS
DIODE

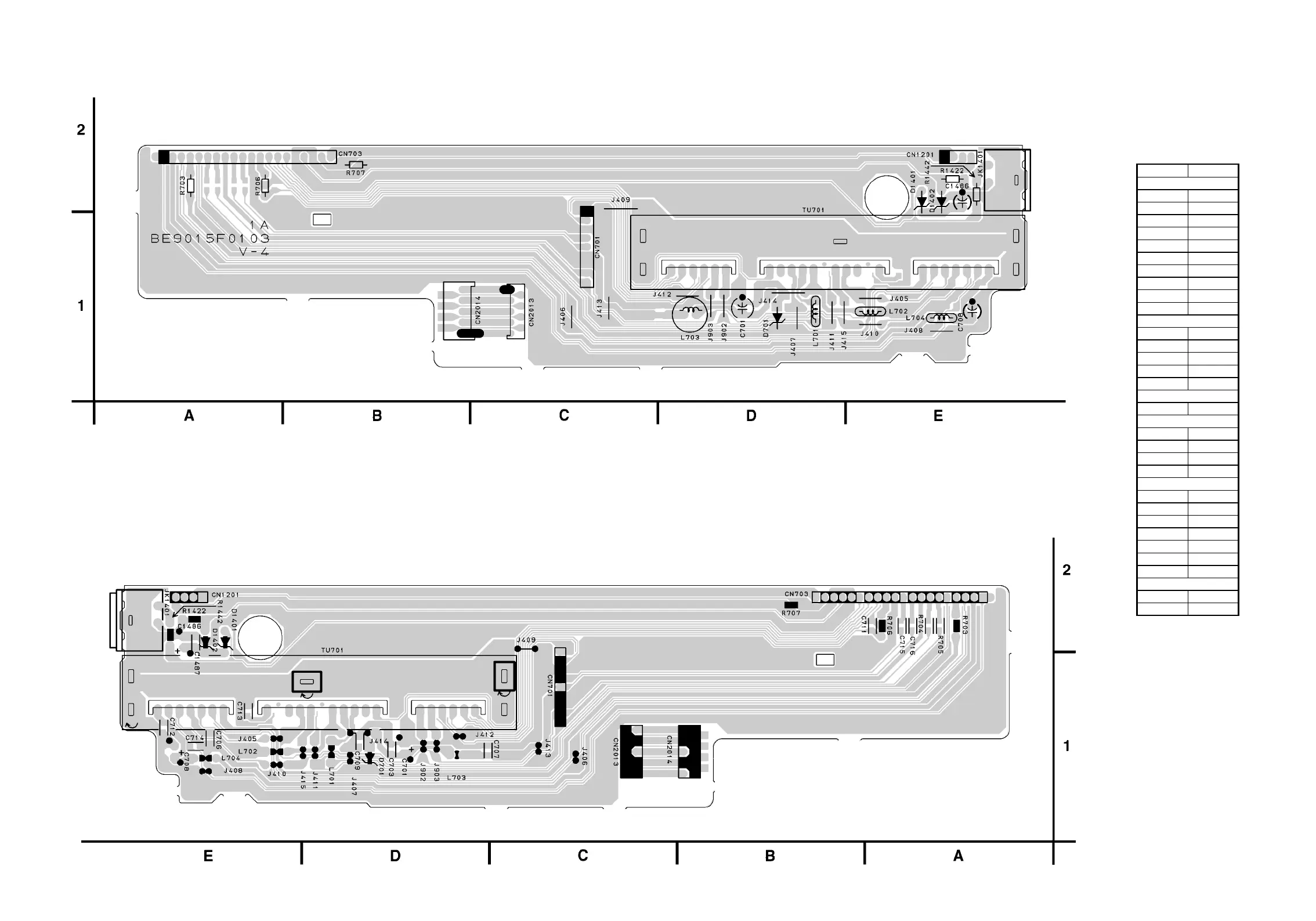

Tuner CBA Top View
Tuner CBA Bottom View
BE9015F01031A
