Philips MX5100VR - Page 79

1-12-69
1-12-70

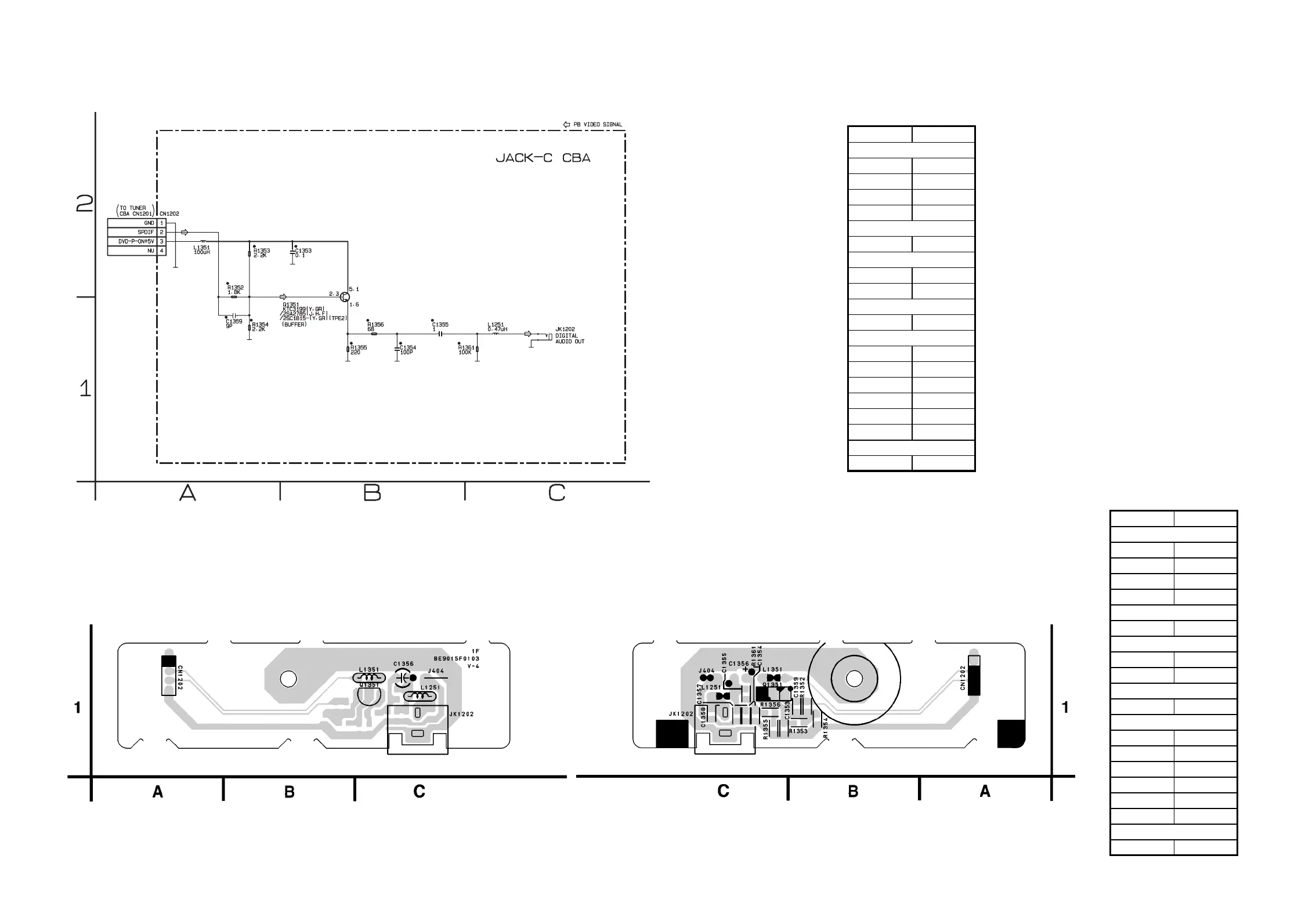

JACK-C Schematic Diagram < VCR Section >
E9015SCJC
Jack-C CBA Top View Jack-C CBA Bottom View
BE9015F01031F
JACK-C CBA
Parts Location Guide
Ref No. Position
C1353 B-1
C1354 C-1
C1355 C-1
C1359 B-1
CN1202 A-1
L1251 C-1
L1351 C-1
Q1351 C-1
R1352 B-1
R1353 B-1
R1354 B-1
R1355 C-1
R1356 C-1
R1361 C-1
JK1202 C-1
CONNECTOR
COILS
RESISTORS
MISCELLANEOUS
CAPACITORS
TRANSISTOR
JACK-C Schematic Diagram
Parts Location Guide
Ref No. Position
C1353 B-2
C1354 B-1
C1355 B-1
C1359 A-1
CN1202 A-2
L1251 C-1
L1351 A-2
Q1351 B-1
R1352 A-2
R1353 A-2
R1354 A-1
R1355 B-1
R1356 B-1
R1361 C-1
JK1202 C-1
CAPACITORS
CONNECTOR
TRANSISTOR
COILS
RESISTORS
MISCELLANEOUS
