Technical Specifications, Connections, and Chassis Overview
EN 4 SDI PDP 2K61.
1.1.4 63" HD v4

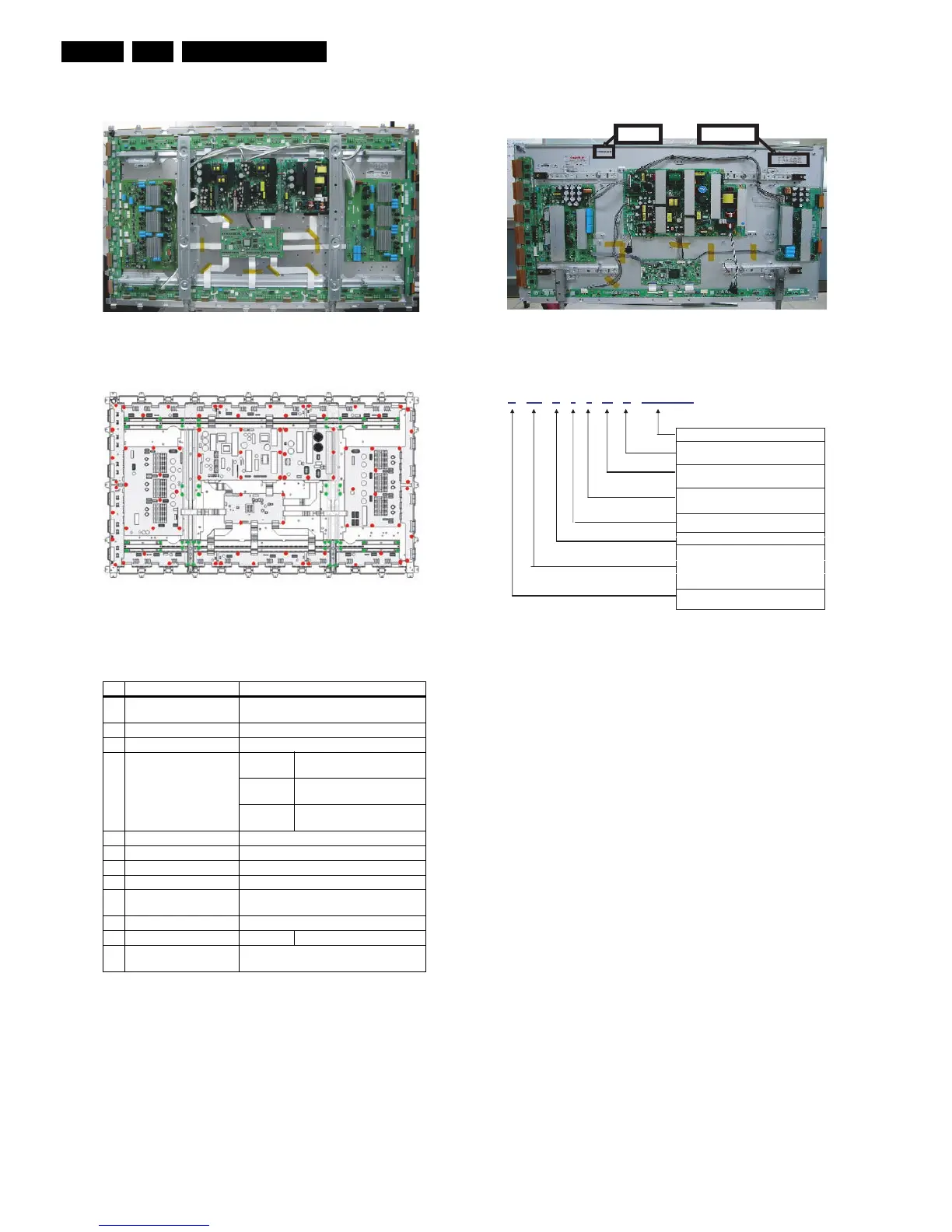

Figure 1-7 Rear view of plasma panel (63” HD v4)
Figure 1-8 Location of mounting screws (63” HD v4)
NOTE: screw torque 9.5 ± 0.5 kgf.cm
1.2 Serial Numbers
Figure 1-9 Location of the serial number
Figure 1-10 Explanation of the serial number
No Item Specification 63” HD v4
1 Pixel 1366 (H) x 768 (V) pixels
(1 pixel = 1 R,G,B cells)
2 Number of Cells 4,098 (H) x 768 (V) cells
3 Pixel Pitch 1.02 mm (H) x 1.02 mm (V)
4 Cell Pitch R Horizontal 0.34 mm
Vertical 1.02 mm
G Horizontal 0.34 mm
Vertical 1.02 mm
B Horizontal 0.34 mm
Vertical 1.02 mm
5 Display size 1393.3 mm (H) x 783.4 mm (H)
6 Screen size Diagonal 63" Colour Plasma Display Module
7 Screen aspect 16:9
8 Display colour 1073.7 million colours (13-bit)
9 Viewing angle Over 160 deg (angle with 50% and greater
brightness perpendicular to PDP module)
10 Dimensions approx. 1680 (W) x 875 (H) x 750 (D) mm
11 Weight Module 3 About 44.0 kg
12 Vertical frequency
Video/Logic Interface
60/50 Hz, LVDS
G_16380_035.eps
121006
G_16380_036.eps
121006
G_16380_007.eps
190606
C 001 A 5 1 03 A 0 0 0 1
Serial No : 0001~9999
Shift : A = Day, B = Afternoon,
C = Night
Day: 01 ~ 31
Month : 1 ~ C
(Oct = A, Nov = B, Dec = C)
Year : 0 (2000) ~ 9 (2009)
Line No : A ~ Z
Type : 272 (50HDW1)
Factory: C [= Cheonan]
S [= Shenzen]
Type : 310 (42HDW1)
Type : 298 (42SDV5)
G_16380_008.eps
161006
Type : 327 (63HDV4)
To Next Page
