1.3 Chassis Overviews
1.3.1 42” SD v5

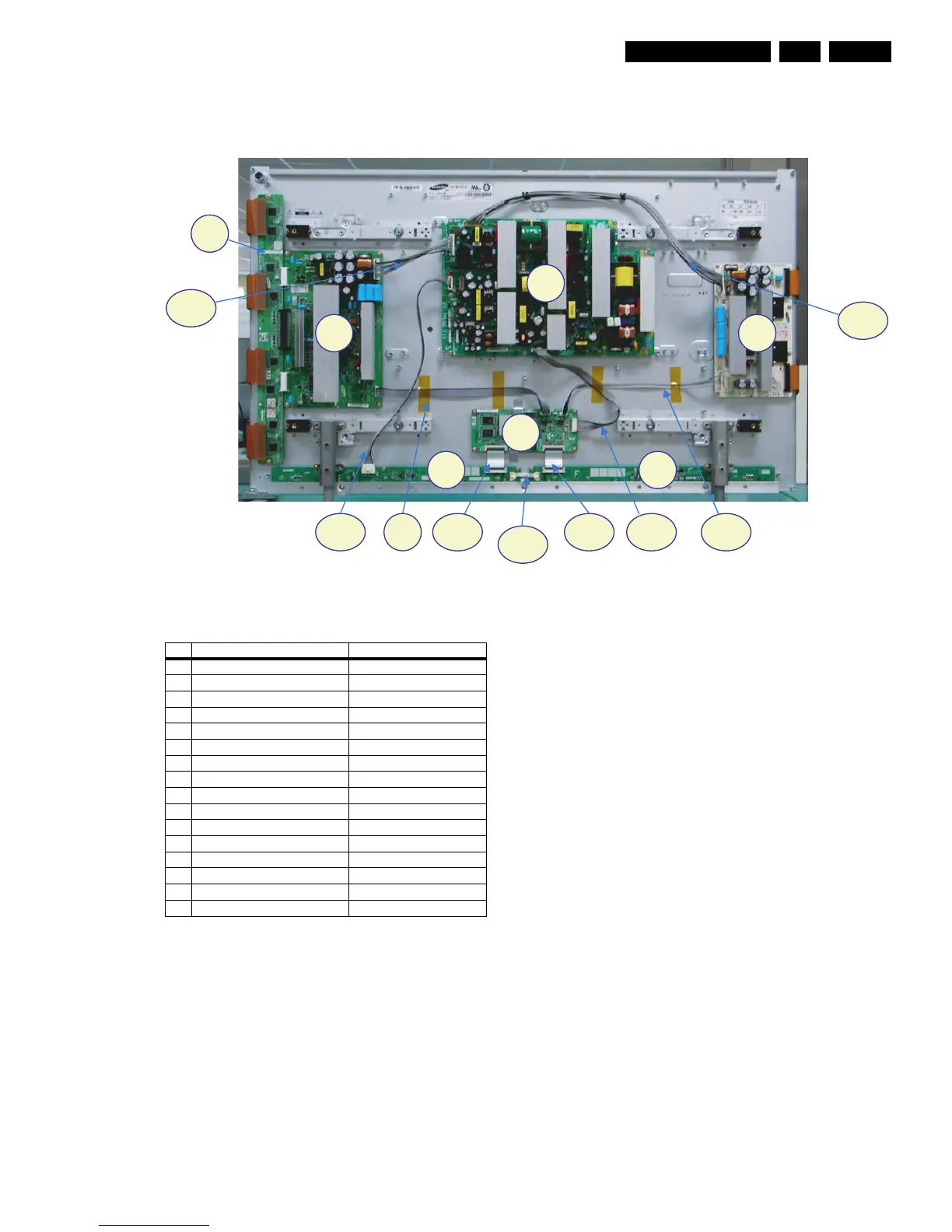

Figure 1-11 PWB location (42” SD v5)
Table 1-3 PWB overview (42” SD v5)
X
Y
ZG[G
\G ]
^G
`G_G XW XX
XY
XZG X[
X\G
X]
G_16380_009.eps
190606
No. Location Name
1 SMPS SMPS
2 LOGIC-MAIN Board Assy PWB Logic Main
3 X-MAIN Driving Board Assy PWB X Main
4 Y-MAIN Driving Board Assy PWB Y Main
5 LOGIC E BUFFER Board Assy PWB buffer
6 LOGIC F BUFFER Board Assy PWB buffer
7 Y-BUFFER Board Assy PWB buffer
8 LOGIC + Y-MAIN Lead connector
9 LOGIC + X-MAIN Lead connector
10 LOGIC + LOGIC BUF (E) FFC cable-flat
11 LOGIC + LOGIC BUF (F) FFC cable-flat
12 LOGIC BUF (E) + (F) Lead connector
13 SMPS + LOGIC BUF (E) Lead connector
14 SMPS + LOGIC MAIN Lead connector
15 SMPS + Y-MAIN Lead connector
16 SMPS + X-MAIN Lead connector
