Service Modes, Error Codes, and Fault Finding
EN 52 SDI PDP 2K65.

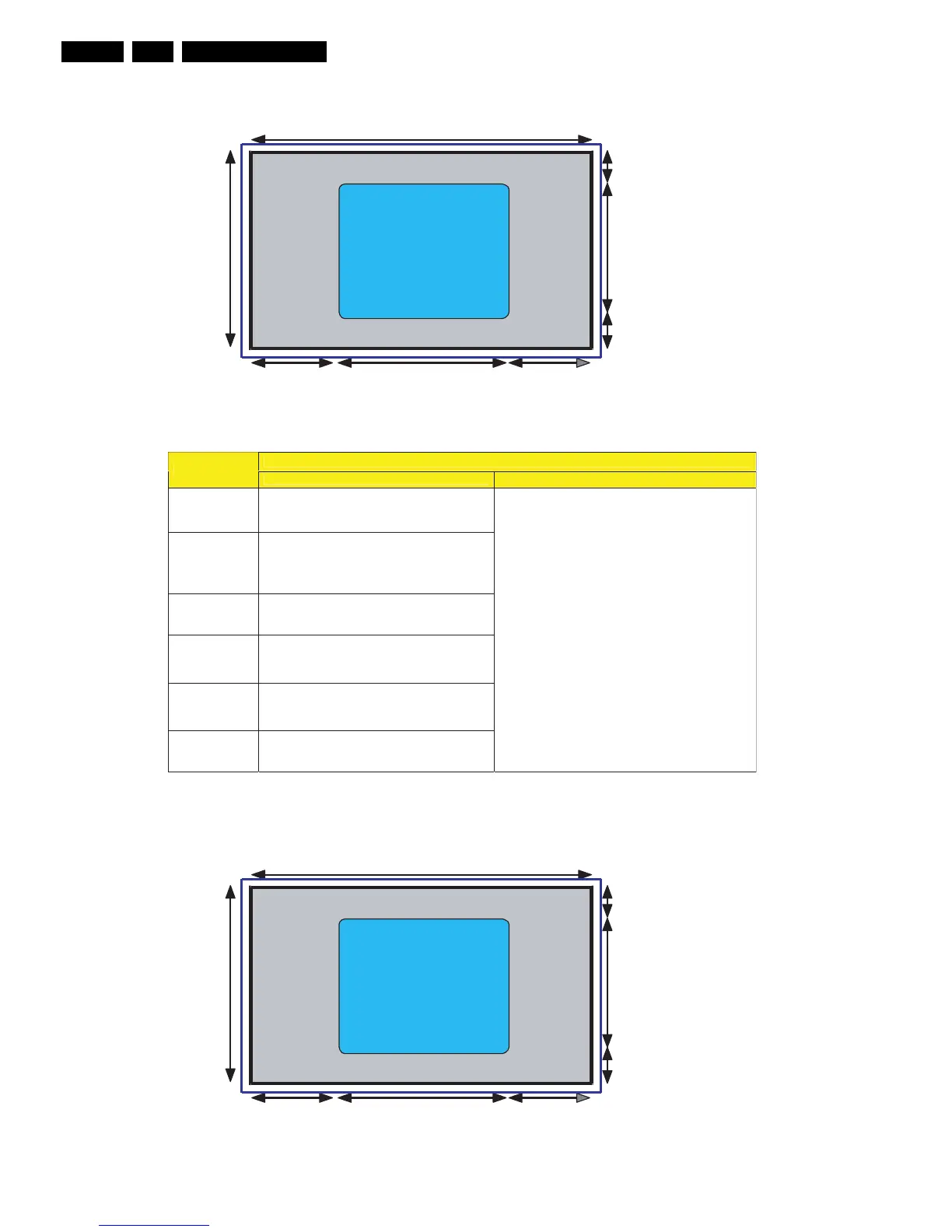

5.2.8 Criteria for Panel Replacement, due to Defective Panel Cells
Figure 5-48 Panel zones 42” SD v5
Figure 5-49 Criteria for panel replacement 42” SD v5
Figure 5-50 Panel zones 42” HD w1
W
H
H/8
A
A- Zone
B- Zone
W/4
H/8
3H/4
W/2
W/4
G_16380_508.eps
190606
Specification
Item
Number of cell defects Distance between cell defects
Non-lighting
cell defect
Zone A: 0 and less
Zone B: 4 and less
Non-
extinguishing
cell defect
Zone A: 0
Zone B: 1
Flickering cell
defect
Zone A: 0
Zone B: 1
High Intensity
Cell defect
Zone A: 0
Zone B: 0
Adjacent
cell defect
Zone A: 0
Zone B: 0
Total
cell defects
6 and less
Regardless of A and B zone
1 Cell Defect in an area of 50 * 50 mm
G_16380_509.eps
190606
W
H
H/8
A
A- Zone
B- Zone
W/4
H/8
3H/4
W/2
W/4
G_16380_508.eps
190606
