Philips S42SD-YD09 - Page 53

Service Modes, Error Codes, and Fault Finding
EN 53SDI PDP 2K6 5.

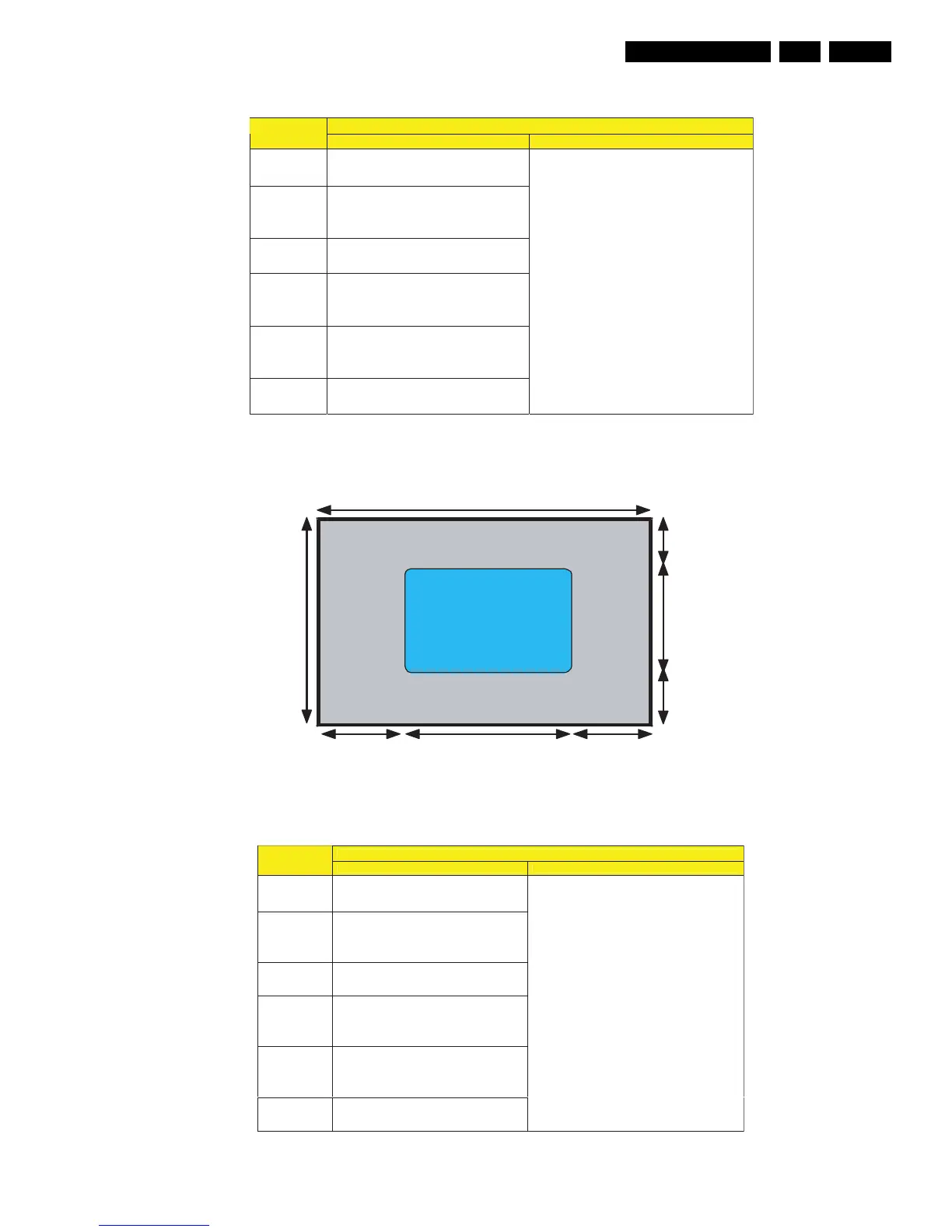

Figure 5-51 Criteria for panel replacement 42” HD w1
Figure 5-52 Panel zones 50” HD w1
Figure 5-53 Criteria for panel replacement 50” HD w1
Specification
Item
Number of cell defects Distance between cell defects
Non-lighting
cell defect
Zone A: 4 and less
Zone B: 8 and less
Non-
extinguishing
cell defect
Zone A: 0
Zone B: 1 and less
Flickering cell
defect
Zone A: 0
Zone B: 1 and less
High Intensity
Cell defect
Zone A: 0
Zone B: 1 and less
(Only Red & Blue)
Regardless of A and B zone,
Zone A: 0
Zone B: 1 and less
Adjacent
cell defect
(Only Red & Blue)
Total
12 and less
cell defects
1 Cell Defect in an area of 50mm*50mm
G_16380_511.eps
190606
W
H
H/4
W/4
A- Zone
H/2
H/4
W/4
W/2
one
B- Z
G_16380_510.eps
190606
Specification
Item
Number of cell defects Distance between cell defects
Non-lighting
cell defect
Zone A: 4 and less
Zone B: 8 and less
Non-
extinguishing
cell defect
Zone A: 0
Zone B: 1 and less
Flickering cell
defect
Zone A: 0
Zone B: 1 and less
High Intensity
Cell defect
Zone A: 0
Zone B: 1 and less
(Only Red & Blue)
Regardless of A and B zone,
Zone A: 0
Zone B: 1 and less
Adjacent
cell defect
(Only Red & Blue)
Total
12 and less
cell defects
1 Cell Defect in an area of 50mm*50mm
G_16380_511.eps
190606
