Technical Specifications, Connections, and Chassis Overview
EN 7SDI PDP 2K6 1.
1.3.3 50” HD w1

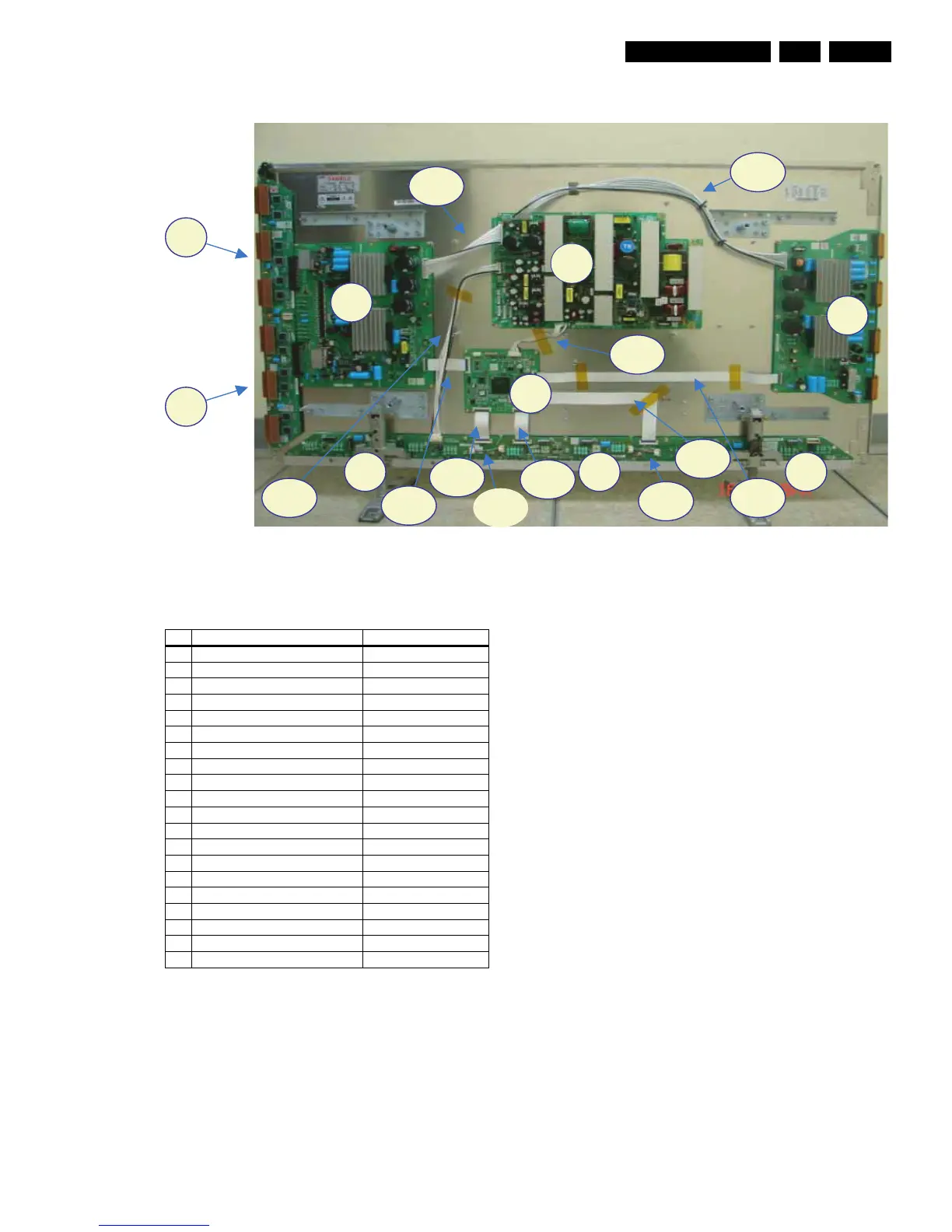

Figure 1-13 PWB location (50” HD w5)
Table 1-5 PWB overview (50” HD w1)
X
Y
ZG
[G
\G
]
^G
`G
_G
XW
XX
XY
XZ
X[
X\G
X]
X^
X_
X`
YW
G_16380_011.eps
190606
No. Location Name
1 SMPS SMPS
2 LOGIC-MAIN Board Assy PWB LOGIC Main
3 X-MAIN Driving Board Assy PWB X Main
4 Y-MAIN Driving Board Assy PWB Y Main
5 LOGIC E BUFFER Board Assy PWB Buffer E
6 LOGIC F BUFFER Board Assy PWB Buffer F
7 LOGIC G BUFFER Board Assy PWB Buffer G
8 Y-BUFFER (Upper) Board Assy PWB Buffer
9 Y-BUFFER (Lower) Board Assy PWB Buffer
10 LOGIC + Y-MAIN FFC Cable-flat
11 LOGIC + X-MAIN FFC Cable-flat
12 LOGIC + LOGIC BUF (E) FFC Cable-flat
13 LOGIC + LOGIC BUF (F) FFC Cable-flat
14 LOGIC + LOGIC BUF (G) FFC Cable-flat
15 LOGIC BUF (E) + LOG. BUF (F) Lead connector
16 LOGIC BUF (F) + LOG. BUF (G) Lead connector
17 SMPS + LOGIC BUF (E) Lead connector
18 SMPS + LOGIC MAIN Lead connector
19 SMPS + Y-MAIN Lead connector
20 SMPS + X-MAIN Lead connector
