Technical Specifications, Connections, and Chassis Overview
EN 8 SDI PDP 2K61.
1.3.4 63” HD v4

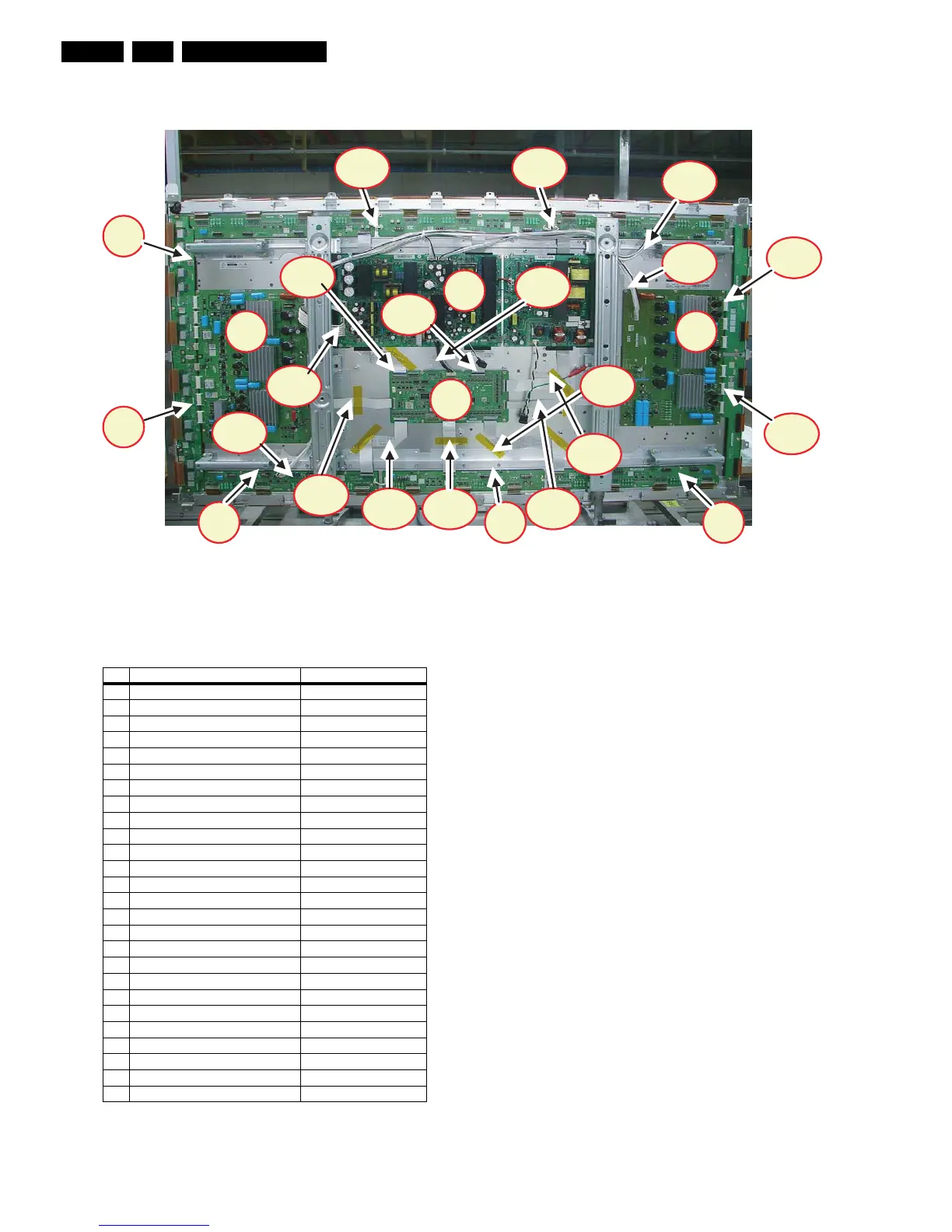

Figure 1-14 PWB location (63” HD v4)
Table 1-6 PWB overview (50” HD w1)
G_16380_037.eps
121006
X
Y
ZG[G
\G ] ^G
_G
XW
`G
X[
X\
X^
XYG
XZ
X]G
X_
YZG
X`
YW
YXG
Y\
XX
YYG
Y[G
Y]G
No. Location Name
1 SMPS SMPS
2 LOGIC-MAIN Board Assy PWB LOGIC Main
3 X-MAIN Driving Board Assy PWB X Main
4 Y-MAIN Driving Board Assy PWB Y Main
5 LOGIC E BUFFER Board Assy PWB Buffer E
6 LOGIC F BUFFER Board Assy PWB Buffer F
7 LOGIC G BUFFER Board Assy PWB Buffer G
8 Y-BUFFER (Upper) Board Assy PWB Buffer
9 Y-BUFFER (Lower) Board Assy PWB Buffer
10 X-BUFFER (Upper) Board Assy PWB Buffer
11 X-BUFFER (Lower) Board Assy PWB Buffer
12 LOGIC + Y-MAIN FFC Cable-flat
13 LOGIC + X-MAIN FFC Cable-flat
14 LOGIC + LOGIC BUF upper (E) FFC Cable-flat
15 LOGIC + LOGIC BUF upper (F) FFC Cable-flat
16 LOGIC + LOGIC BUF upper (G) FFC Cable-flat
17 LOGIC + LOGIC BUF lower (E) FFC Cable-flat
18 LOGIC + LOGIC BUF lower (F) FFC Cable-flat
19 LOGIC + LOGIC BUF lower (G) FFC Cable-flat
20 SMPS + LOGIC MAIN Lead connector
21 SMPS + Y-MAIN Lead connector
22 SMPS + X-MAIN Lead connector
23 SMPS + LOGIC BUF upper (E) Lead connector
24 SMPS + LOGIC BUF lower (E) Lead connector
25 LOGIC BUF (E) + LOG. BUF (F) Lead connector
26 LOGIC BUF (F) + LOG. BUF (G) Lead connector
