Alignments
EN 70 SDI PDP 2K68.
8.1.6 Adjustment Power Supply Voltages 63" HD v4
Table 8-4 Adjustment voltage level overview (also refer to the sticker on the rear side of the panel)

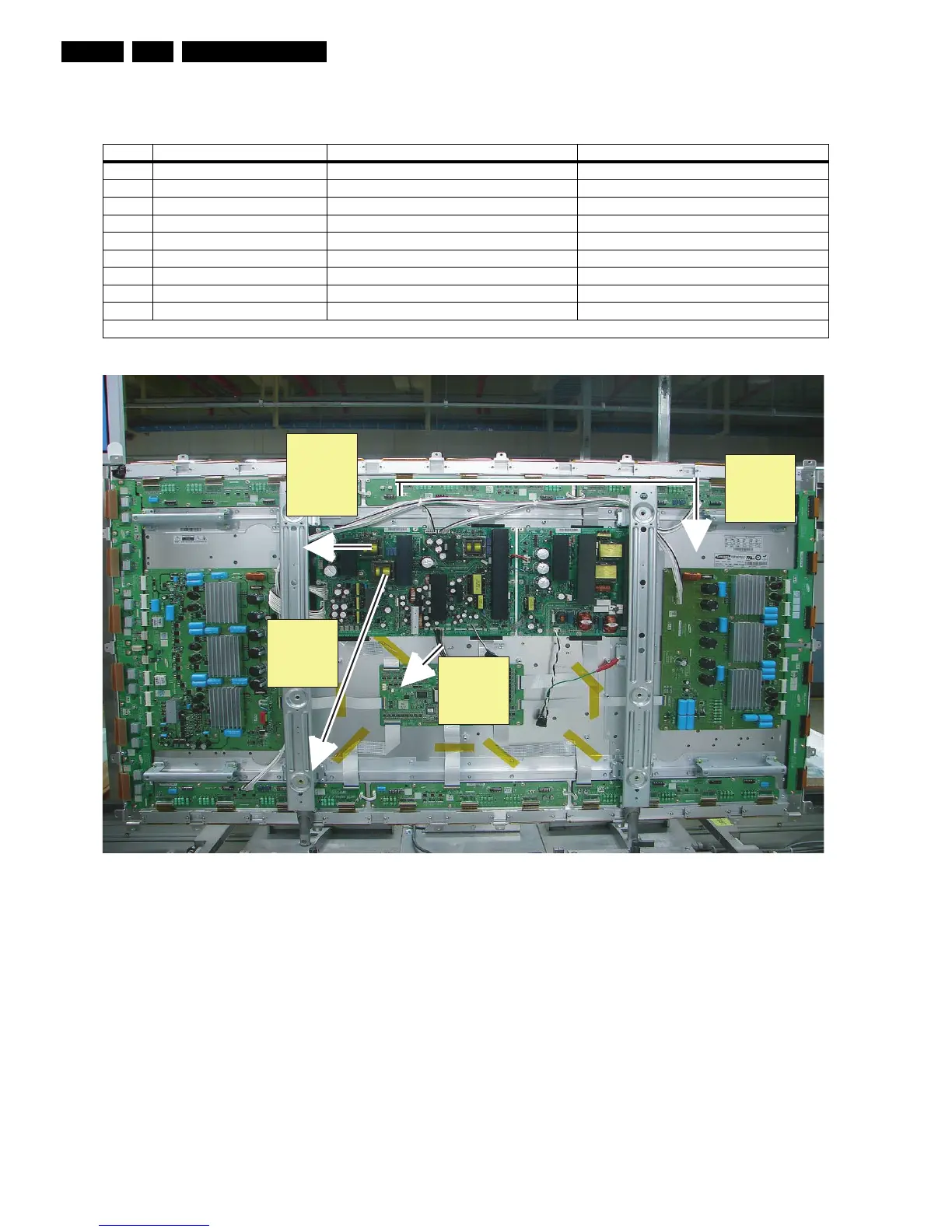

Figure 8-11 Location of the supply lines from the PSU to the boards - 63" HD v4
No Output voltage (V) Voltage Setting (Normal Load) Output Voltage Range
1 Vs 184 V ± 1 % 165 V ~ 190 V
2 Va 72 V ± 1.5 % 60 V ~ 85 V
3 Ve 88 V ± 1.5 % 80 V ~ 110 V
4 Vset 178 V ± 1.5 % 160 V ~ 200 V
5 Vscan -160 V ± 1.5 % -190 V ~ -155 V
6 Vsb 5 V ± 5 % Fixed
7 Vg 15 V ± 5 % Fixed
8 D5VL 5.3 V ± 5 % Fixed
9 D3V3 3.4 V ± 5 % Fixed
Check voltage label on the PDP for correct values.
G_16380_055.eps
171006
Vs
Vset
Vscan
Vcc
Vs
Ve
Vcc
D5V
D3V3
D5V
Va
