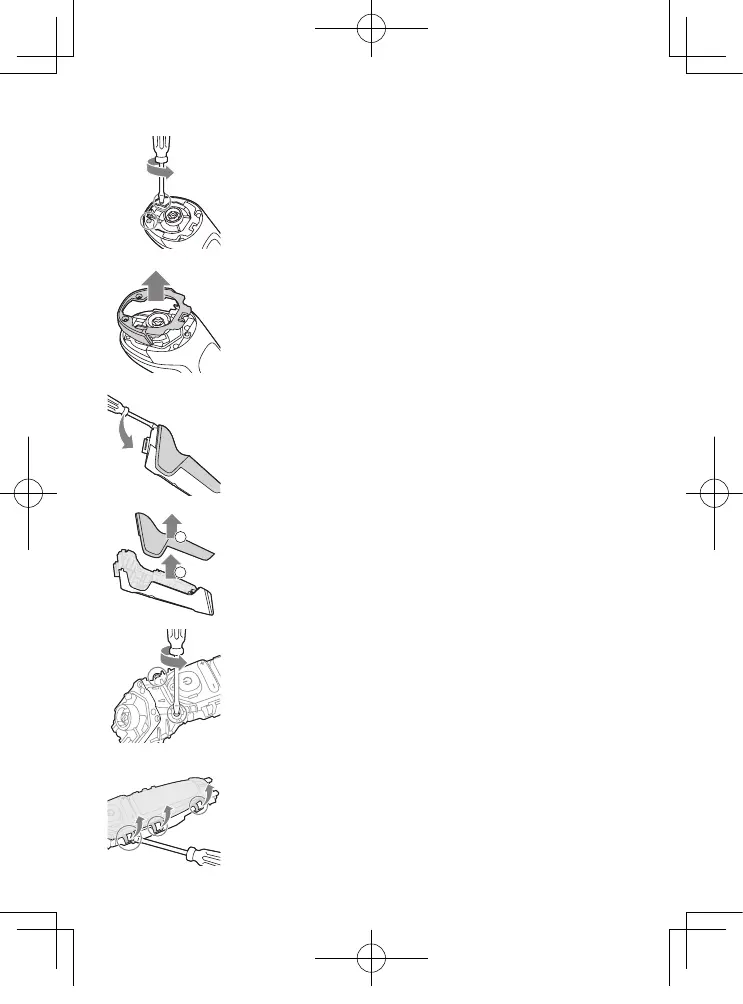

3 Unscrew the two screws and remove the frame.
4 Remove the two back black covers and slide the front
housing o the appliance.
5 Unscrew the two screws at the top of the inner panel.
6 Place a screwdriver between the lips of the inner
panel and bend them aside. Then remove the inner
panel.
1
2
52
