3
Service Position

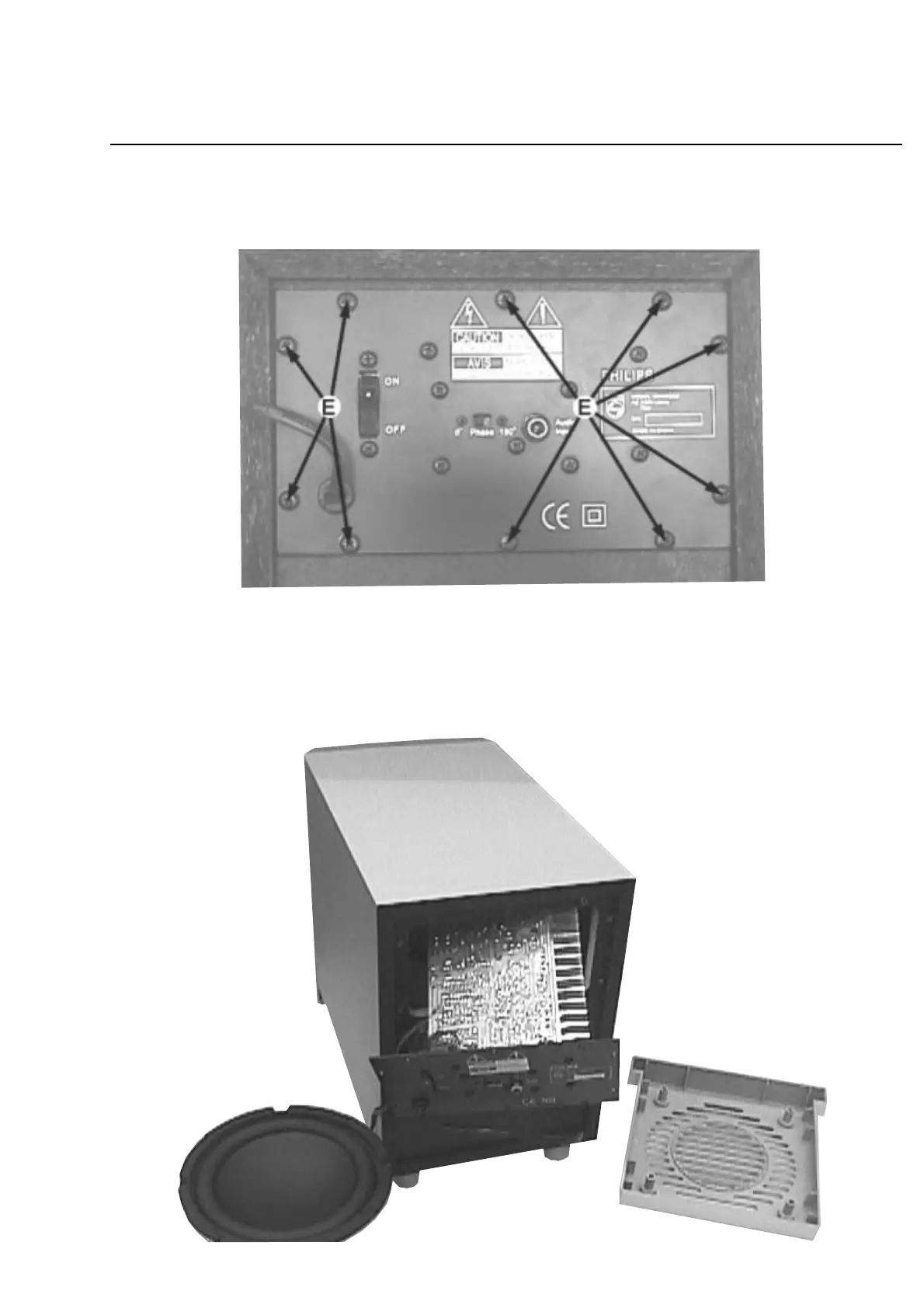

1. Unscrew 10 screws E (see Picture 7) to pull out the pc
board assembly.
Caution: Do not break the bundle of wires to the front.
Picture 7
DISMANTLING INSTRUCTIONS
Dismantling the Rear Assembly
