2.
HOW
TO
INTERCONNECT THE UNITS
by clipping the units
on
top of
each other
Press here, while moving down
the upper unit with the feet
in
the
holes of the lower one.
Then
release the button, by wich
the feet hook into the
holes.
with cable-set PM2192
by using Rack-mount PM2193
ST4698

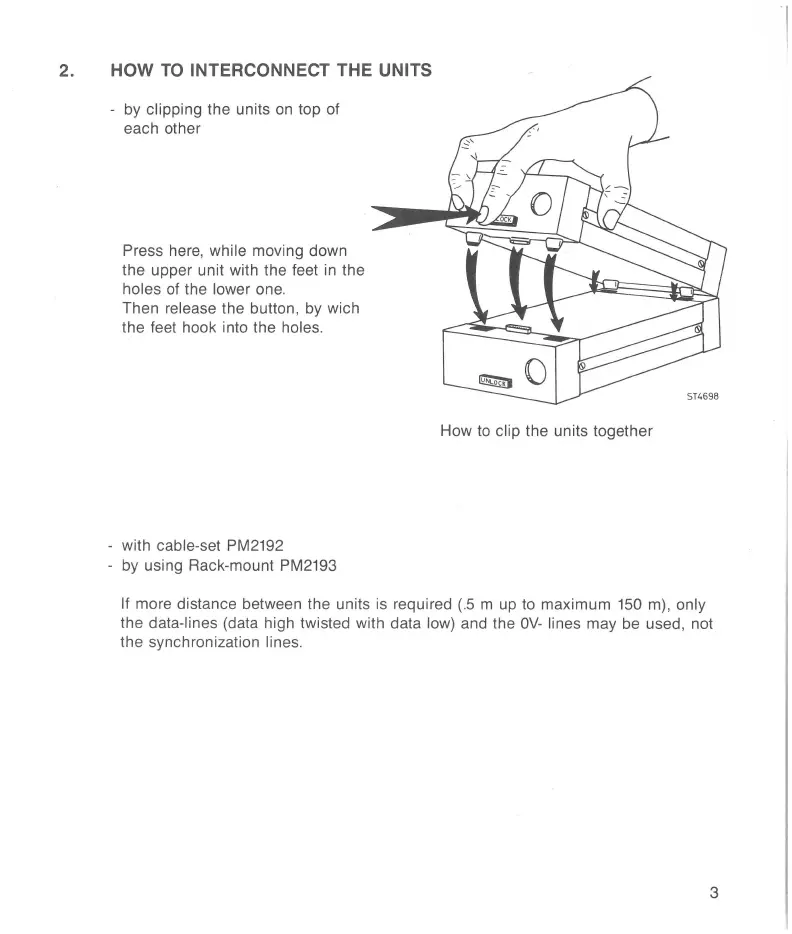

How
to
clip the units together
If more distance between the units is required
(.5
m
up
to
maximum
150
m)
, only
the data-lines (data high twisted with data low) and the
OV-
lines may be used, not
the synchronization
lines.
3
