12. ANNEX
0
0
•
0
•
•
•
14

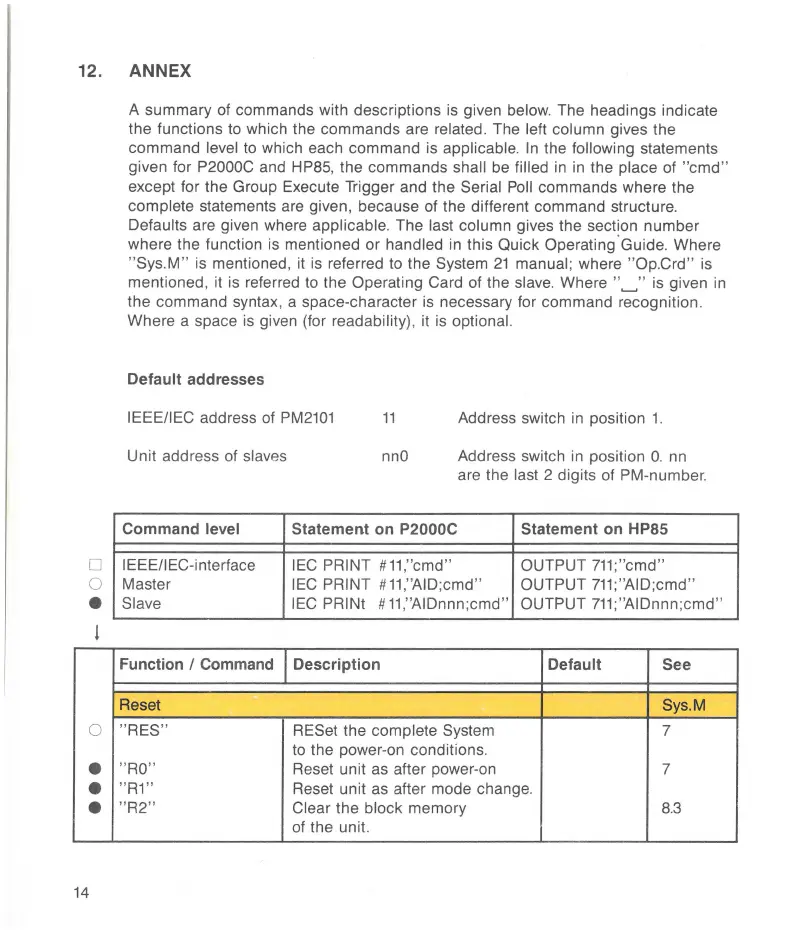

A summary of commands with descriptions is given below. The headings indicate
the functions
to
which the commands are related. The left column gives the
command
level
to
which each command is applicable.
In
the following statements
given for
P2000C and HP85, the commands shall be filled
in in
the place of
"cmd"
except for the Group Execute Trigger and the Serial Poll commands where the
complete statements are given, because of the different command structure.
Defaults are given where applicable. The last column gives the section number
where the function is mentioned or
handled
in
this Quick Operating ·Guide. Where
"Sys.M"
is mentioned,
it
is referred to the System
21
manual; where "Op.Crd" is
mentioned, it is referred
to
the Operating Card of the slave. Where
"~"
is given
in
the command syntax, a space-character is necessary for command recognition.
Where a space
is
given (for readability), it is optional.
Default
addresses
IEEE/IEC address of
PM2101
11
Address switch
in
position
1.
Unit address of slaves
Command level
IEEE/IEC-interface
Master
Slave
Function I Command
Reset
"RES"
"
RO"
"R1"
"R2"
nnO
Address switch
in
position
0.
nn
are the last 2 digits of PM-number.
Statement
on
P2000C Statement on HP85
IEC
PRINT #11,"cmd" OUTPUT 711;"cmd"
IEC PRINT #11,"AID;cmd" OUTPUT 711;"AID;cmd"
IEC PRINt
# 11,"AIDnnn;cmd" OUTPUT
711;
"AIDnnn;cmd"
Description Default See
Sys.M
RESet the complete System 7
to
the power-on conditions.
Reset unit
as
after power-on 7
Reset unit
as
after mode change .
Clear the block memory
8.3
of the unit.
