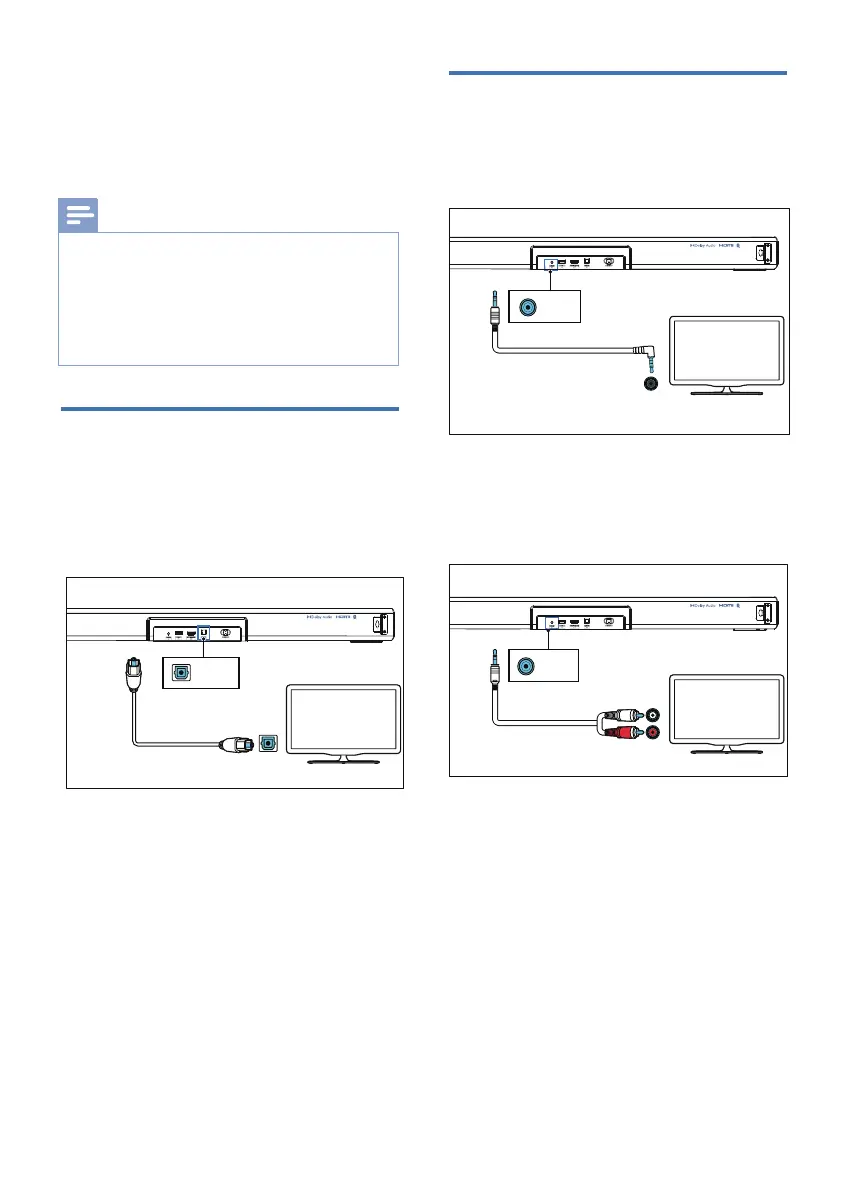

Note
Connect to Optical socket
HDMI in
HDMI out
Blu-ray Player/DVD Player
/Recorder/Set-top Box...
TV
HDMI out
(eARC)
HDMI in
HDMI (eARC/ARC)
HDMI out
(eARC)
TV
Optical out
Optical
TV
Headphone
(3.5mm)
AUDIO OUT
AUX
AUX
TV
Connect to AUX socket
Headphone
(3.5mm)
AUDIO OUT
Audio in
Audio in
TV
HDMI (eARC/ARC)
HDMI out
(eARC)
TV
Optical out
Optical
TV
Headphone
(3.5mm)
AUDIO OUT
AUX
R
L
AUDIO OUT
TV
2 Using a High Speed HDMI cable,
connect the HDMI ARC connector on
your soundbar to the HDMI ARC
connector on the TV.
• Using an optical cable, connect the
Optical connector on your soundbar
to the Optical out connector on the
TV or other device.
• Use a 3.5mm to 3.5mm audio cable to
connect the TV’s headphone socket to
the AUX socket on the unit.
• Use an RCA to 3.5mm audio cable to
connect the TV’s audio output sockets
to the AUX socket on the unit.
• The digital optical connector might be
labeled Spdif or Spdif out.
• Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may
function, please refer to your TV user manual.
• Make sure to use the HDMI cables that can
support the ARC function.
