6
1
2
1
840 mm/33.5"
~50mm/2.0"
3
2-3mm/0.08”-0.12”
4mm/
0.16”
>25mm/0.98”
Subwoofer
Frequency band/Output power
≤3dBm

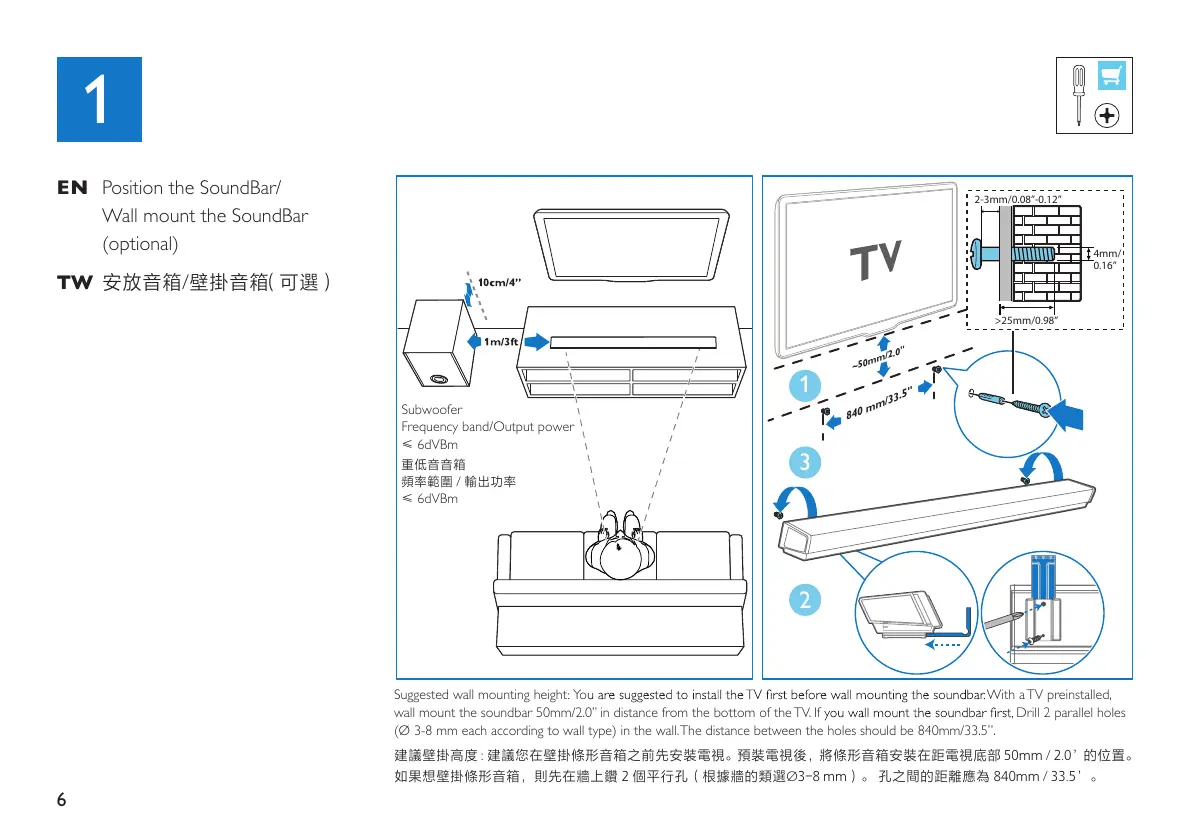

Suggested wall mounting height
:
Yo With a TV preinstalled,
wall mount the soundbar 50mm/2.0’’ in distance from the bottom of the TV. If Drill 2 parallel holes
(Ø 3-8 mm each according to wall type) in the wall. The distance between the holes should be 840mm/33.5’’.
建議壁掛高度 : 建議您在壁掛條形音箱之前先安裝電視。預裝電視後，將條形音箱安裝在距電視底部 50mm / 2.0’的位置。
如果想壁掛條形音箱，則先在牆上鑽 2 個平行孔（根據牆的類選Ø3-8 mm）。 孔之間的距離應為 840mm / 33.5’。
EN Position the SoundBar/
Wall mount the SoundBar
(optional)
TW 安放音箱/壁掛音箱（可選）
≤
6dVBm
重低音音箱
頻率範圍 / 輸出功率
≤
6dVBm
