Philips Semiconductors
TDA6107AJF
Triple video output amplifier
5. Pinning information
5.1 Pinning
5.2 Pin description

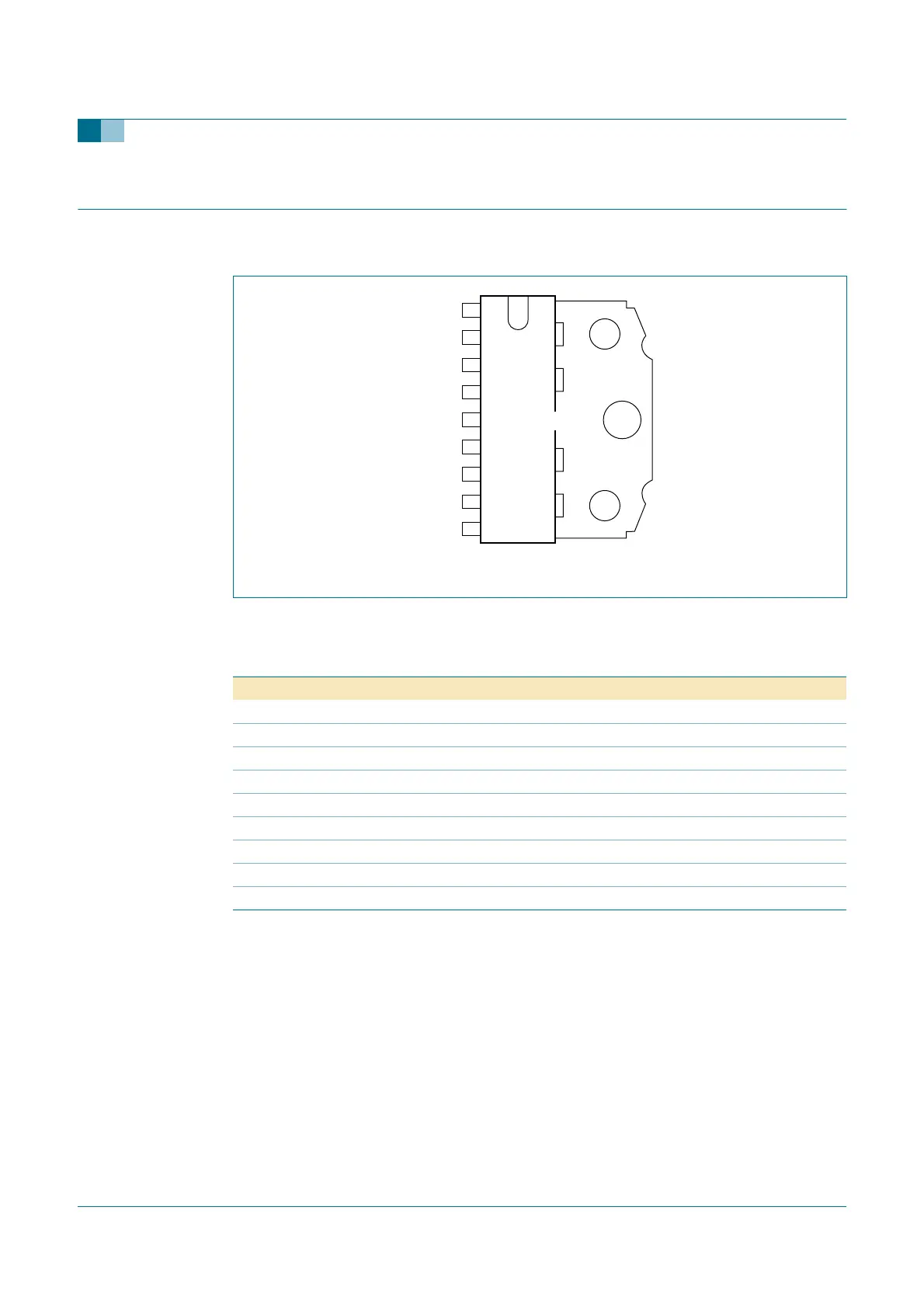

Fig 2. Pin configuration
TDA6107AJF
V
i(1)
V
i(2)
V
i(3)
GND
I
om
V
DD
V
oc(3)
V
oc(2)
V
oc(1)
001aac587
1
2
3
4
5
6
7
8
9
Table 2: Pin description
Symbol Pin Description
V
i(1)
1 inverting input 1
V
i(2)
2 inverting input 2
V
i(3)
3 inverting input 3
GND 4 ground (fin)
I
om
5 black-current measurement output
V
DD
6 supply voltage
V
oc(3)
7 cathode output 3
V
oc(2)
8 cathode output 2
V
oc(1)
9 cathode output 1
