2.3 Connections

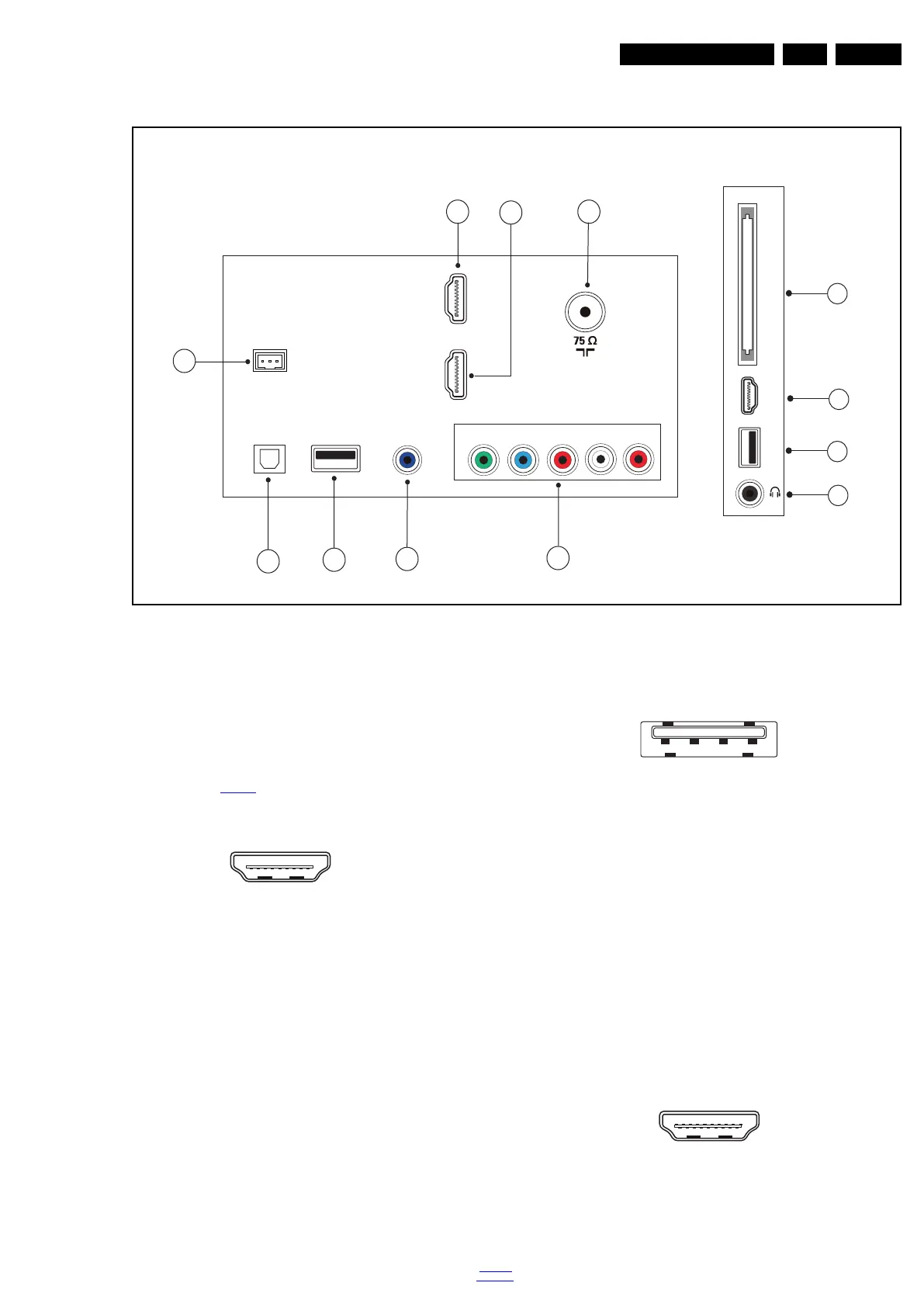

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - Common Interface
68p- See figure 10-7-6
jk
2 - HDMI 3: Digital Video - In, Digital Audio with ARC -
In/Out
Figure 2-2 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5-Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8-Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
3 - USB 2.0
Figure 2-3 USB (type A)
1-+5V k
2 - Data (-) jk
3 -Data (+) jk
4 - Ground Gnd H
4 - Head phone (Output)
Bk - Head phone 80 - 600  / 10 mW
ot
2.3.2 Rear Connections
5- TV ANTENNA - In
Signal input from an antenna, cable or satellite.
6 - HDMI 2: Digital Video - In, Digital Audio with ARC -
In/Out
Figure 2-4 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
TV ANTENNA
VGA / DVI
AUDIO IN
DIGITAL
AUDIO OUT
SE
RV.U
HDMI 1
ARC
HDM
HDMI3
CI
USB2
I2
L R
CVBS/Y Pb
Pr
USB1
19970_001.eps
1
2
3
4
57
8
9
10
11
12
Side ConnectorsRear Connectors
6
10000_017_090121.eps
090428
19
1
18 2
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
