Philips VR540/39 - Page 36

1-10-66
1-10-67

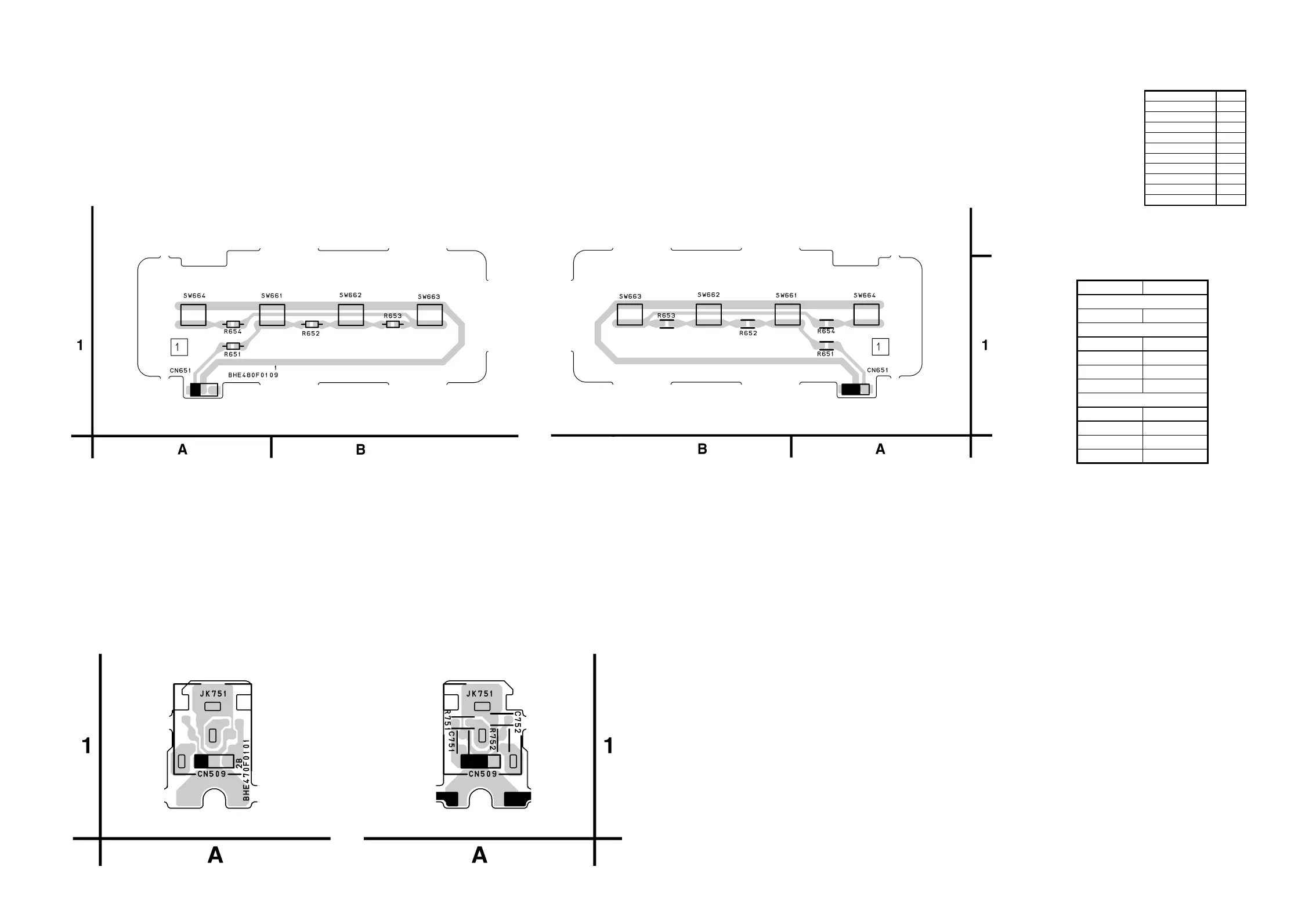

SUB Jack CBA Top View SUB Jack CBA Bottom View
BHE480F01091
Function CBA Top View ( F, G, H, I, J, K, L, M ) Function CBA Bottom View ( F, G, H, I, J, K, L, M )
BHE470F01012-B
Function CBA
Parts Location Guide
Ref No. Position
CN651 A-1
R651 A-1
R652 B-1
R653 B-1
R654 A-1
SW661 A-1
SW662 B-1
SW663 B-1
SW664 A-1
CONNECTORS
RESISTORS
SWITCHES
Comparison Chart of
Models and Marks
MODEL MARK
VR540/39 D
VR540/58 E
VR740/02 F
VR740/07 G
VR740/16 H
VR740/39 I
VR740/58 J
VR742/16 K
VR742/39 L
VR742/58 M
