Phoenix Contact FL WLAN 1100 User Manual

FL WLAN 1100/1101/2100/2101
44
PHOENIX CONTACT 107390_en_03
The current signal strength in dBm is displayed to the right of the bar graph. The average
signal strength as well as maximum and minimum values during the current measuring pe-
riod are displayed below the bar graph. Measurement is stopped when you exit the web
page.

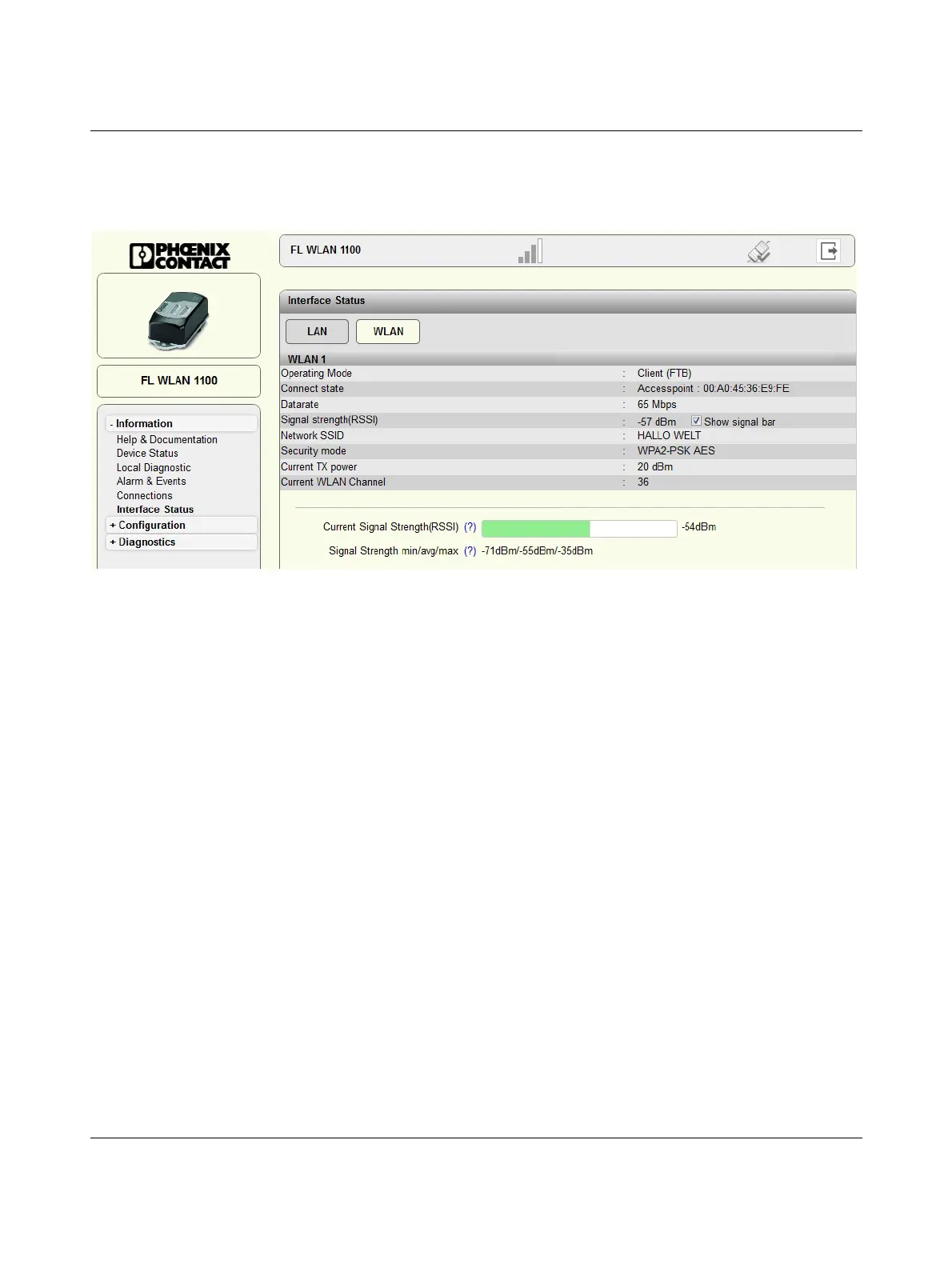

Figure 5-2 Display of the current signal strength as a bar graph
DOWNLOADED FROM WWW.SCATTS.CO.UK
DOWNLOADED FROM WWW.SCATTS.CO.UK

Phoenix Contact FL WLAN 1100 Specifications

General

Product Name	FL WLAN 1100
Wireless Standard	IEEE 802.11 a/b/g/n
Frequency Band	2.4 GHz / 5 GHz
Data Rate	Up to 300 Mbps
Operating Voltage	24 V DC
Protection Class	IP20
Weight	300 g
Interface	Ethernet
Security	WPA, WPA2, WEP
Configuration	Web-based
