5.1.4 PSR-ESL4/3x1/1x2/B up to PL d/SIL 2
Two-channel emergency stop monitoring with manual reset
Application example – Two-channel emergency stop monitoring
– Manual reset (S33, S34)
– Feedback of contactor contacts K3 and K4 at S33 and S34
– Stop category 0
– Monitoring of external contactors
– Safety level of the example up to PL d (EN ISO 13849-1) and SIL 2 (EN 62061)

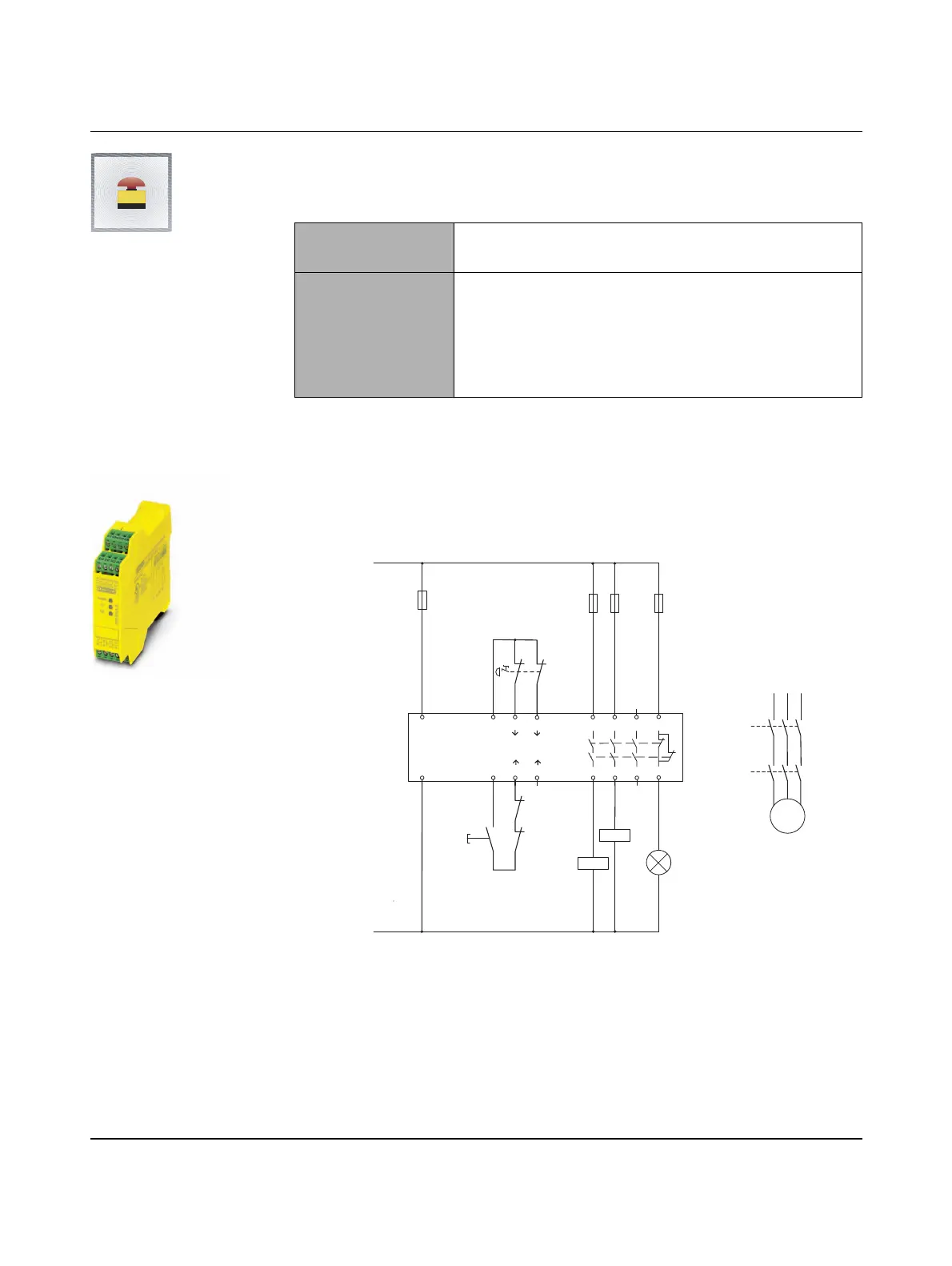

Figure 5-5 Two-channel emergency stop monitoring with manual reset
PSR-ESL4/3x1/1x2/B
Order No. 2981059 with screw connection
2981062 with spring-cage connection
Technical data – 24 V AC/DC
– 3 enabling current paths, 1 signaling current path
– Monitored manual start or autostart
– Basic insulation
– Cat. 4/PLe in accordance with EN ISO 13849-1, SILCL 3 in
accordance with EN 62061
K3
K4
M
A1 23 3313
41
A2 S33 S34 S35 24 3414
42
() ()
PSR-ESL4/3x1/1x2/B
SS1211
S22
(+)
()
()
(+)
M
(N)
(L1)
L+
S1
S2
K3
K4
K3
K4
Emergency
stop
Reset
