Application manual for PSRclassic and PSRmultifunction, and the modular safety relay system
50 / 136
PHOENIX CONTACT 102597_en_03
5.2.2 PSR-ESD/4x1/30 up to PL e/SIL 3
Two-channel light grid monitoring with manual reset (ESPE type 4)
Application example Two-channel light grid monitoring
Cross-circuit detection via the light grid
Manual reset (A1, S34)
Feedback of contactor contacts K5 and K6 at S34
Stop category 0
Monitoring of external contactors
Safety level of the example up to PL e (EN ISO 13849-1) and SIL 3 (EN 62061)

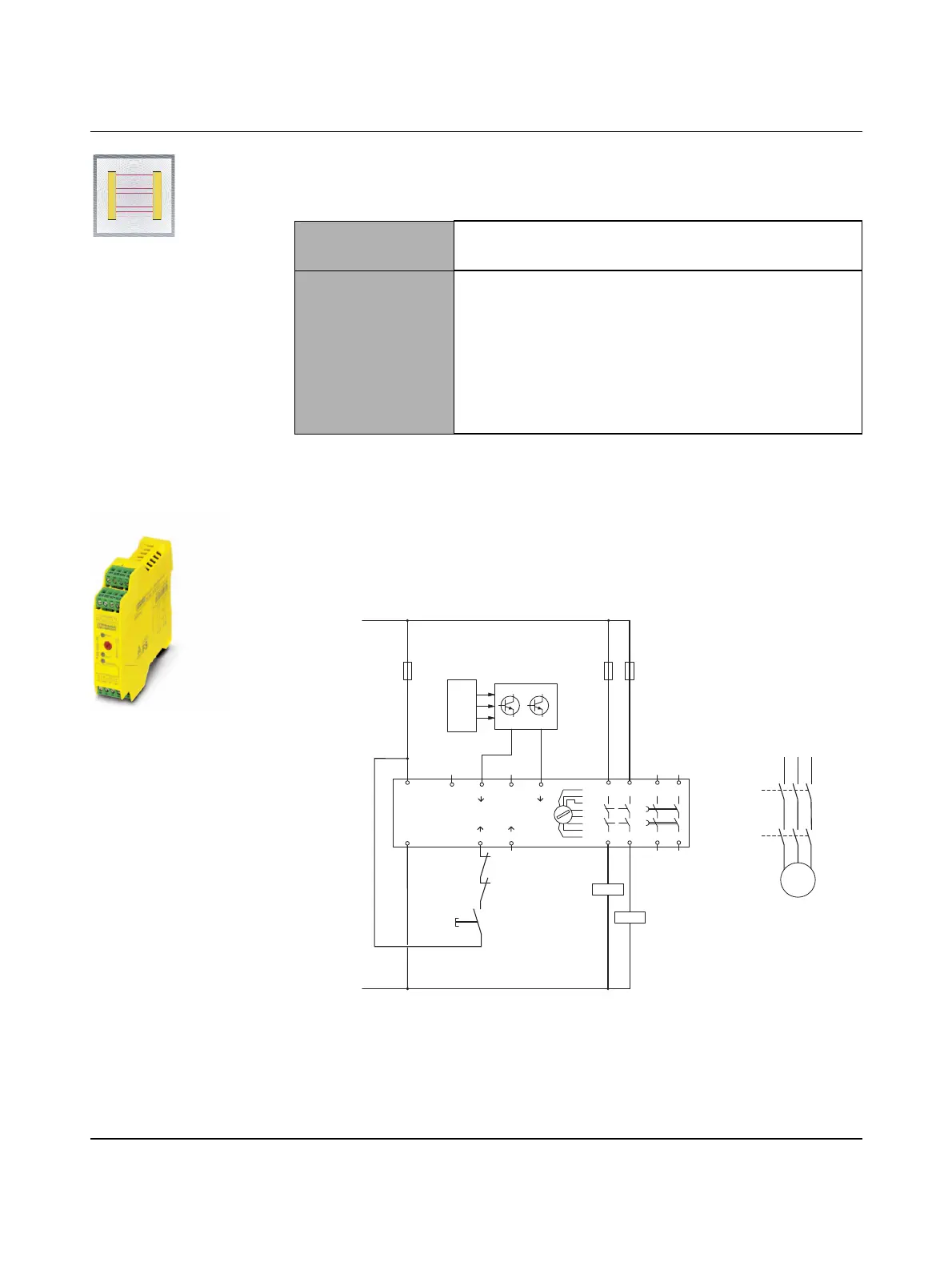

Figure 5-10 Two-channel light grid monitoring with manual reset
PSR-ESD/4x1/30
Order No. 2981800 with screw connection
2981813 with spring-cage connection
Technical data 24 V DC
2 undelayed enabling current paths, 2 delayed enabling
current paths
Adjustable delay time (0 s … 30 s)
Manual start or autostart
Basic insulation
Cat. 4/PLe in accordance with EN ISO 13849-1, SILCL 3 in
accordance with EN 62061
K5
K6
M
OSSD1 OSSD2
K6
M
(N)
(L1)
K5
L+
S11 S12 S21 S22
13 23 37
14
24 38
47
48
( )
<0,1
0,5
1
3
5
10
20
30
( )
A1
A2S34
PSR-ESD/4x1/30
S35
( )
( )
K5
K6
S2
Light grid type 4
Transm
itter
Receiver
Reset
(Clock)(Clock)
