Application manual for PSRclassic and PSRmultifunction, and the modular safety relay system
48 / 136
PHOENIX CONTACT 102597_en_03
5.2.1 PSR-ESL4/3x1/1x2/B up to PL e/SIL 3
Two-channel light grid monitoring with manual reset (ESPE type 4)
Application example Two-channel light grid monitoring
Cross-circuit detection via the light grid
Manual reset (S33, S34)
Feedback of contactor contacts K3 and K4 at S34
Stop category 0
Monitoring of external contactors
Safety level of the example up to PL e (EN ISO 13849-1) and SIL 3 (EN 62061)

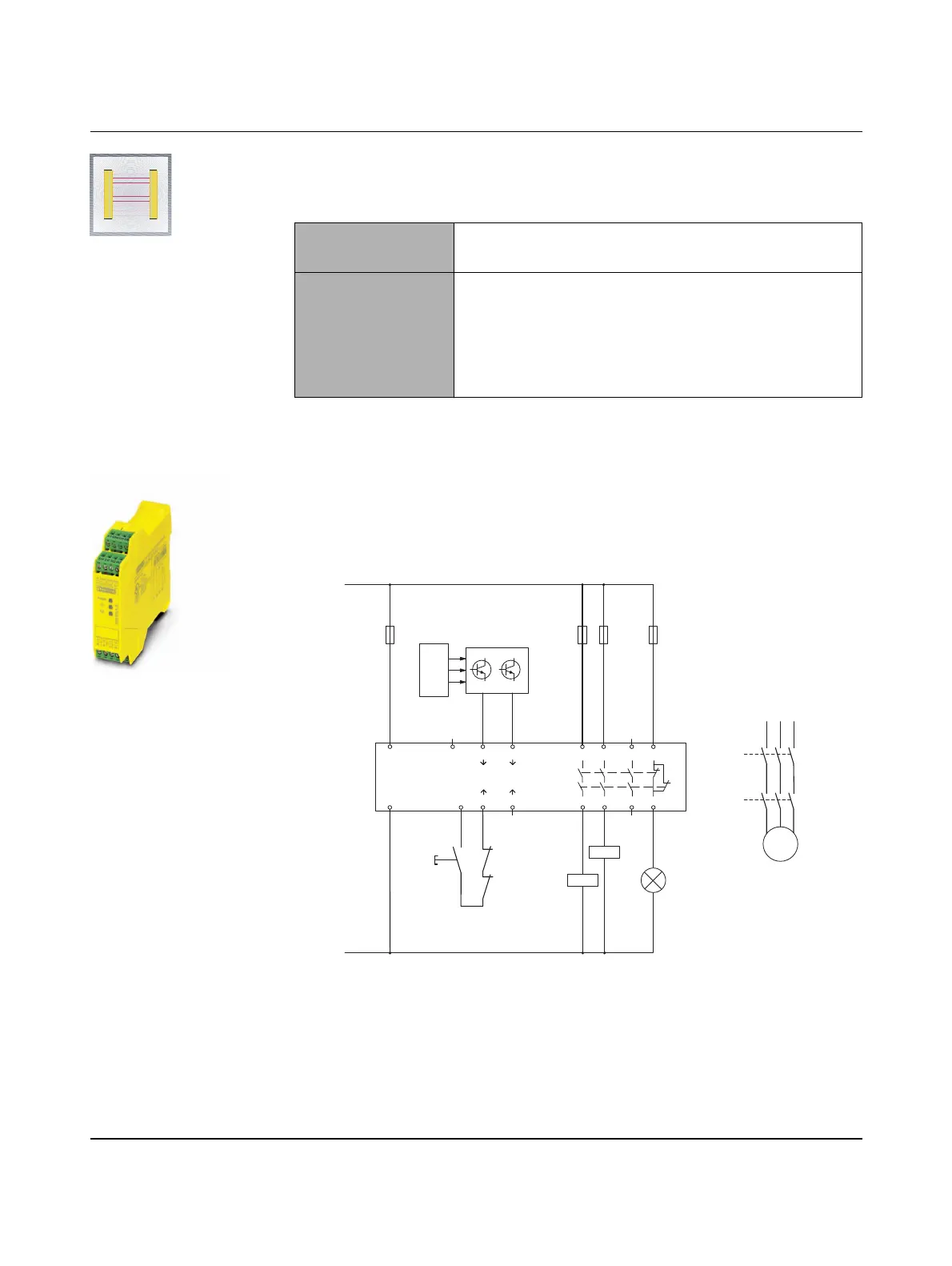

Figure 5-9 Two-channel light grid monitoring with manual reset
PSR-ESL4/3x1/1x2/B
Order No. 2981059 with screw connection
2981062 with spring-cage connection
Technical data 24 V AC/DC
3 enabling current paths, 1 signaling current path
Monitored manual start or autostart
Basic insulation
Cat. 4/PLe in accordance with EN ISO 13849-1, SILCL 3 in
accordance with EN 62061
A1 S11 S12 S22 13 23 33
A2 S33 S34 14 24 34
41
42
( )
( )
(+)
PSR-ESL4/3x1/1x2/B
K3
K4
K3
S2
M
(N)
(L1)
K4
K3
K4
M
(+)
S35
( )
L+
( )
OSSD1 OSSD2
Light grid type 4
Transm
itter
Receiver
Reset
