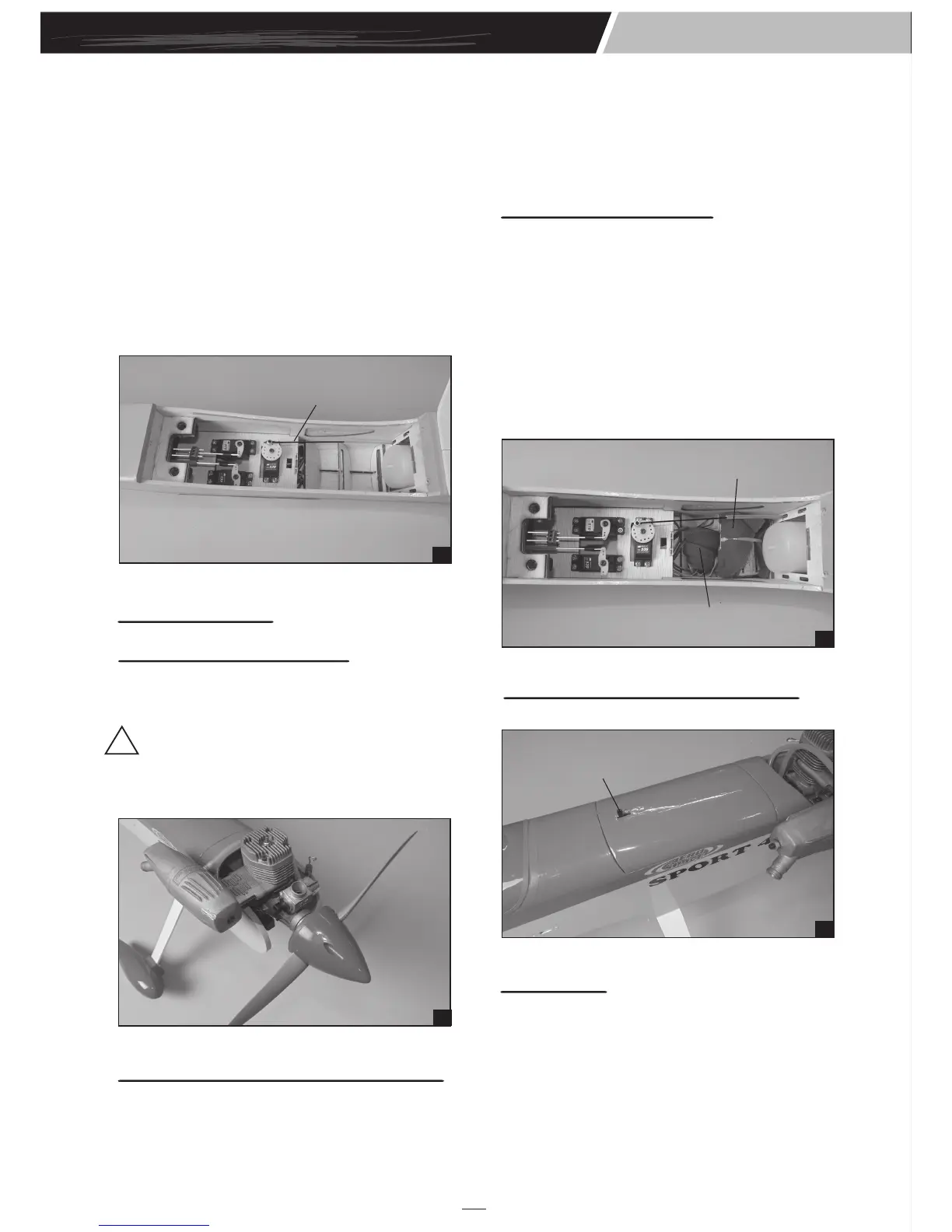

Phoenix Model Dolphin - Final Assembly; Installing the Spinner; Installing the Receiver and Battery; Installing the Switch

3. Secure the switch in place using the two
machine screws provided with the radio system.
INSTALLING THE SWITCH
1. The switch should be mounted on the fuselage
side, opposite the muffler, close enough to the
receiver so the lead will reach. Use the face
plate of the switch cut out and locate the
mounting holes.
2. Cut out the switch hole using a modeling knife.
Use a 2mm drill bit and drill out the two
mounting holes through the fuselage side.
2. Wrap the receiver and battery pack in the
protective foam to protect them from vibration.
Use a rubber band or masking tape to hold the
foam in place.
INSTALLING THE RECEIVER AND BATTERY
1. Plug the servo leads and the switch lead into
the receiver. You may want to plug an aileron
extension into the receiver to make plugging in
the aileron servo lead easier when you are
installing the wing. Plug the battery pack lead
into the switch.
FINAL ASSEMBLY
INSTALLING THE SPINNER
Install the spinner back-plate, propeller and
spinner cone.
The propeller should not touch any part of the
spinner cone. If it dose, use a sharp modeling
knife and carefully trim away the spinner cone
where the propeller comes in contact with it.
!
51
Receiver
Battery
52
Open and close
OPEN AND CLOSE THE TOP HATCH
15
DOLPHIN
Instruction Manual
3. Slide the adjustable metal connector / servo
arm assembly over the plain end of the
pushrod wire. Position the throttle stick and the
throttle trim at their lowest positions.
4. Manually push the carburator barrel fully
closed. Angle the arm back about 45 degree
from center and attach the servo arm onto the
servo. With the carburator barrel fully closed,
tighte the set screw in the adjustable metal
connector.
5. Remove the excess throttle pushrod wire using
wire cutters and install the servo arm retaining
screw.
49
50
Throttle rod
BALANCING
1. It is critical that your airplane be balanced
correctly. Improper balance will cause your
plane to lose control and crash.
THE CENTER OF GRAVITY IS LOCATED 75mm
BACK FROM THE LEADING EDGE OF THE
WING, AT THE FUSELAGE.
2. Mount the wing to the fuselage. Using a couple
of pieces of masking tape, place them on the
top side of the wing 75mm back from the
leading edge, at the fuselage sides.
