8
31
Control horn
Screw
32

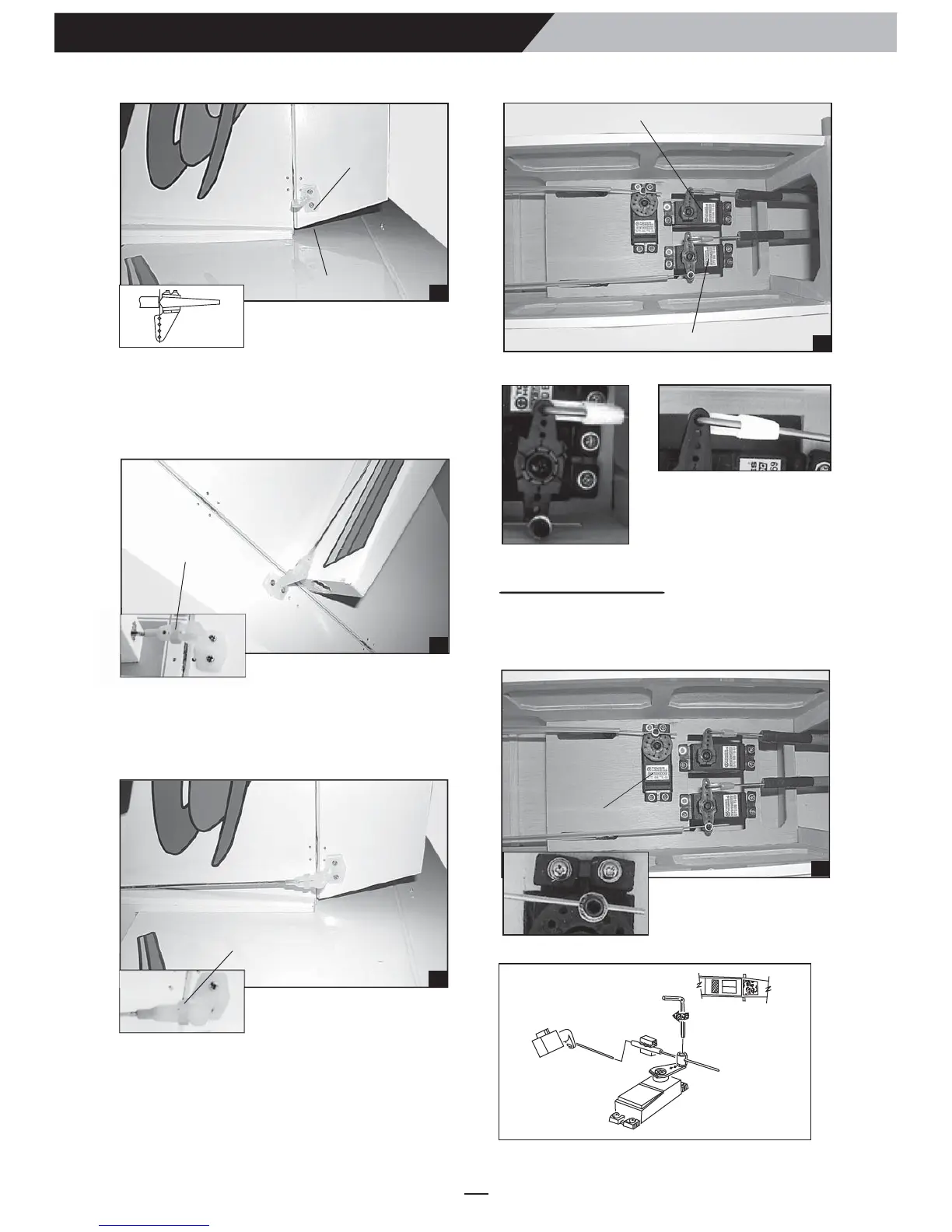

Install the rudder pushrod in fuselage. Thread a
nylon clevis at least 6 mm onto the pushrod.
Route it to rudder, attach clevis to horn and secure
using small piece of silicone tubing.
Trim and attach the pushrods to the servos using
fast loc connectors.
Install a metal connector onto the rudder servo
arm and connect the nose wheel steering pushrod
to it.
Install the elevator pushrod in fuselage. Thread a
nylon clevis at least 6 mm onto the pushrod.
Route it to the elevator, attach clevis to horn and
secure using small piece of silicone tubing.
Silicone Tube
33
Silicone Tube
34
Elevator servo
Rudder servo
Instruction Manual
Trainer 60
35
THROTTLE LINKAGE
Attach throttle pushrod to throttle servo arm using
a metal connector. Use two wood blocks to hold
the pushrod securely.
Throttle servo
