WORKING DEPTH ADJUSTMENT
The working depth of the equipment depends on the position of the lateral skids.
If the skids are raised, the working depth increases; if the skids are lowered, the working depth
decreases.
Make sure that the skids are set at the same height on both sides.

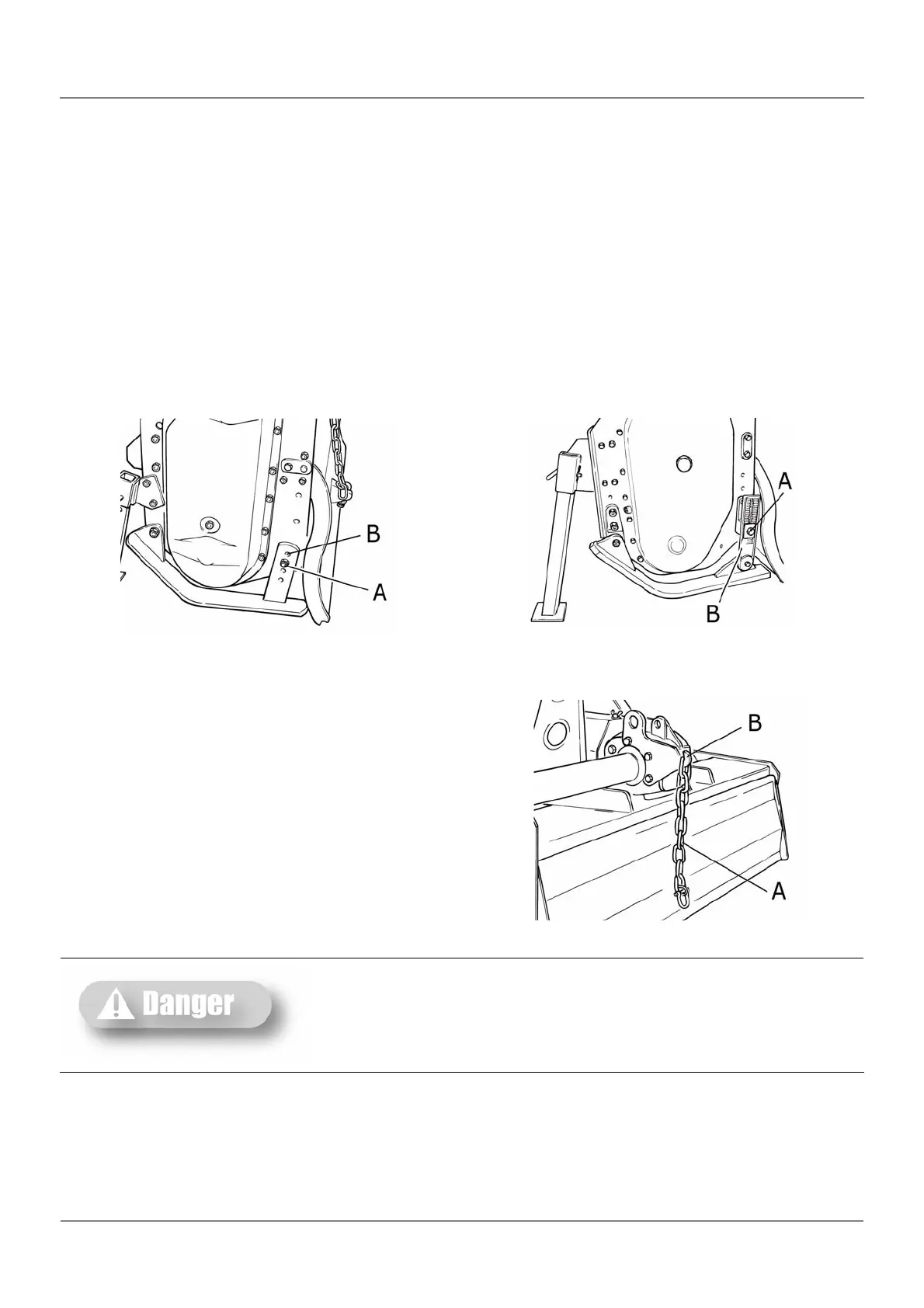

To adjust the working depth on the T5, T10, T15, T20 tillers loosen and remove nut A (picture 7)
and adjust the skid height according to the holes B. When the adjustment is completed, tighten the
screws.
To adjust the working depth on the T25, T30 tillers loosen nut A (picture 8) adjust the rod B until
you reach the requested height. When the adjustment is completed, tighten the screws.
picture 7 picture 8
picture 9
DRAG BOARD ADJUSTMENT
The height of the rear drag board can be adjusted,
making the ground more compact and smooth. Release
the chain A (picture 9) and re-engage it at the desired
height B.
These activities must be carried out with the engine off, the
power take off disengaged and the hand brake applied. If
needed, lift the equipment and place it on supports, thus
preventing any injuries that might be caused by a sudden fall
of the equipment.
