Phonic Ear OnWave - Large Area Antenna

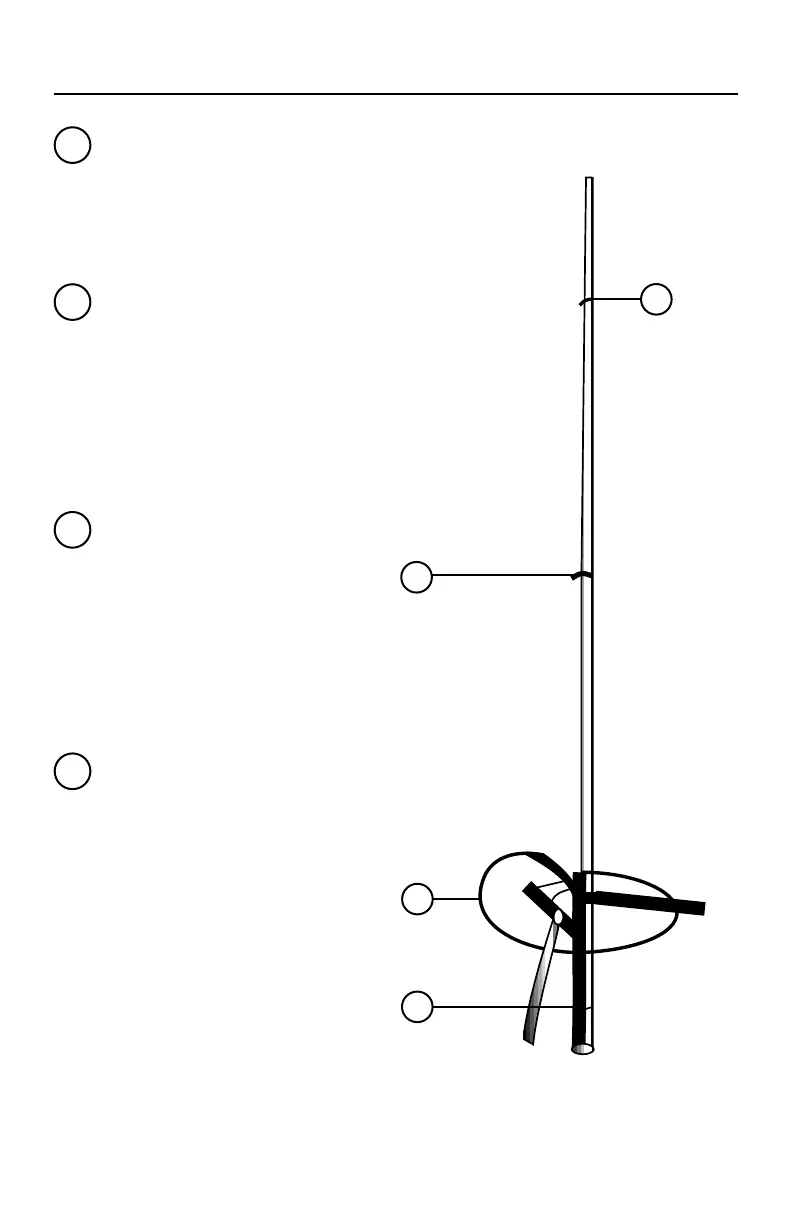

large area antenna
6
19 tuning ring
Do not deform or move
this ring, or you may
affect the antenna's
tuning and efficiency
21 mounting hole/set screw
Use to mount on a tripod with
a mast. Ground your mounting
pole, tripod, or other holder to
a metal surface. You may also
hang the antenna from a railing
or metal superstructure (such as
in a stadium).
! warning
The antenna is an electrical
conductor. Contact with
power lines can result in
death or serious injury. Do
not install the antenna, sup-
porting mast, or tower where
there is any possibility of con-
tact with a high-voltage arc
from power cables or service
drops. Outdoor antennas
should be grounded against
lightning strikes. Consult the
National Electrical Code for
further details.
20 worm clamps
Loosen both clamps; extend
the large center section to the
black ring; tighten lower
clamp; extend the smaller
element to the black ring;
tighten the top clamp
19
21
20
20
3839 OnWave User Guide 1/15/04 11:40 AM Page 18
